Best selling Routers from Schneider
On this page you'll find a ranking of the best Schneider products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

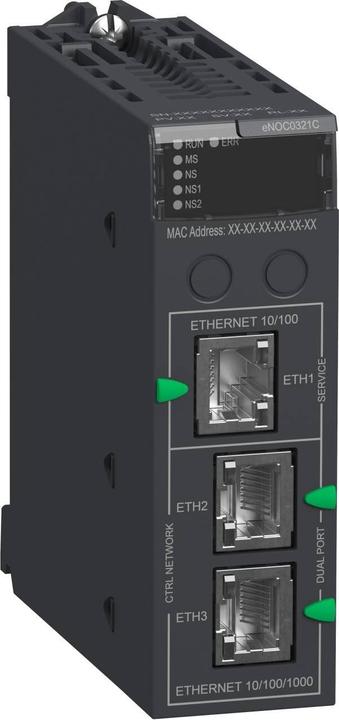

1. Schneider BMENOC0321C
This communication module is part of the Modicon M580 series, a range of programmable automation controllers (PAC) and safety-oriented programmable controllers (PLC) with integrated Ethernet. The BMENOC0321C module serves as an interface between the M580 PLC and other Ethernet network devices via the Modbus/TCP and EtherNet/IP communication protocols. Thanks to a protective coating on the circuit board, this product can be used in harsh environments with a temperature range of -25°C to +60°C. This product can help hybrid manufacturers achieve a better, measurable, and earlier ROI, amortizing their project investments by up to 100% in less than three months. The BMENOP300C module features 3 Ethernet ports. Communication services include bandwidth management, FDR server, Modbus TCP I/O scanner and messages, EtherNet/IP I/O scanner and messages. Additionally, it has an integrated 4-port switch, RSTP support, SNMP network management, integrated multiport switch, etc. It measures 32x100x86 mm and weighs 0.2 kg. This module meets the requirements for applications in transportation, water and wastewater, packaged consumer goods, mining, minerals, metals, power generation, energy, and chemicals, as well as data centers. This product complies with CE, UL, CSA, RCM, EAC, UKCA, and ATEX/IECEx standards for Zone 2/22 and is certified for applications in power generation, the merchant marine, railways, and hazardous areas. This connection assembly is compatible with the entire range of M580 CPUs and must be installed on a BMEXBPxxx - Ethernet + X-Bus module carrier. The communication module occupies one slot in the rack. This product can be used in conjunction with Modicon X80 (I/O, module carrier, cables) and works with the EcoStruxure Control Expert programming software.
2. Schneider BMEAHI0812
This analog isolated HART input module is part of the Modicon X80 series, which includes a range of common input/output and communication modules, power supplies, and module carriers for Modicon M340 and Modicon M580. This product features 8 input channels. It meets the TC treatment requirements (suitable for all climate zones) and can operate within a temperature range of 0°C to +60°C. Modicon X80 modules provide a unified environment for the use of I/O modules in automation architectures, reducing spare parts inventory as well as maintenance and training costs. This product complies with protection class IP20 and offers an MTBF of 627,924 hours. It meets the requirements for applications in transportation, water and wastewater, packaged consumer goods, mining, minerals, metals, power generation, energy and chemicals, as well as data centers. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, and the Merchant Marine, and complies with standards EN 61000-6-5 and EN 61850-3. The module is compatible with Modicon M580 PLCs (local or remote I/O) with a 20-pin cage, screw terminal, or removable spring terminal block. The product must be mounted in the module carrier and secured with 2 screws.

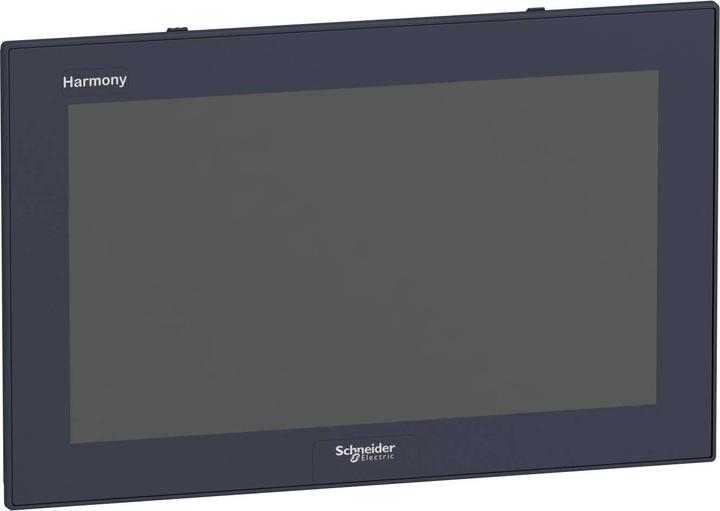

3. Schneider HMIPSO0752D1001
Panel PCs integrate the Magelis Compact iPC industrial PC with a variety of modern PC technologies in a compact space. Fully open, it is an attractive and scalable solution due to its specific qualities, making it the first choice for machine manufacturers.
4. Schneider TM3TI4D
The Schneider TM3TI4D is an analog input module specifically designed for expanding Modicon PLC controls such as M221, M241, M251, and M262. This module offers a flexible solution for integrating analog inputs into existing automation systems. With a total of four analog inputs supporting 16-bit resolution, it allows for the capture of signals from various thermocouples (Type J, K, R, S, B, T, N, E, C). Configuration and project planning are carried out via the EcoStruxure Machine Expert software or a standalone configurator, ensuring user-friendly handling. The module is designed for operation in a temperature range of -10°C to +55°C and can be mounted on a 35mm DIN rail or directly onto a control panel. The removable screw terminal blocks with a pitch of 3.81mm facilitate installation and connection.
- Compatible with Modicon TM3 bus couplers for third-party controls
- Supports a variety of thermocouples for versatile applications
- Easy project planning and configuration with EcoStruxure Machine Expert
- Robust design for a temperature range of -10°C to +55°C
- Certified according to CE, cULus/CSA, EAC, RCM, and cULus Hazardous Location.

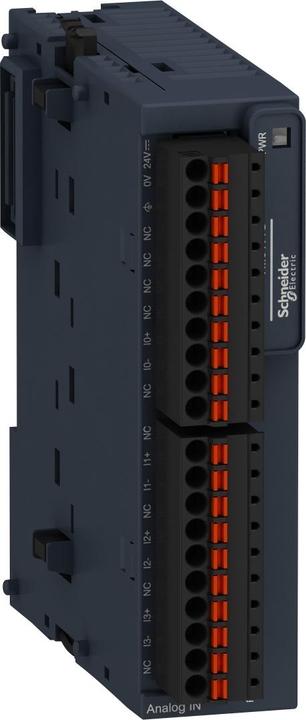

5. Schneider TM3TI4DG
The Schneider TM3TI4DG is an analog input module specifically designed for expanding Modicon PLC controls such as M221, M241, M251, and M262. It offers a flexible solution for integrating analog inputs into automation systems. With a total of four analog inputs that support thermocouples of types J, K, R, S, B, T, N, E, and C, this module enables precise data acquisition with a resolution of 16 bits. Configuration and project planning can be conveniently carried out using the EcoStruxure Machine Expert software or a standalone configurator. The module is designed for operation in a temperature range of -10°C to +55°C and can be mounted on a 35mm DIN rail or directly onto a control panel. The removable spring clamp terminals facilitate easy connection and installation.
- Supports a variety of thermocouple types for versatile applications
- Compatible with third-party controllers via Modicon TM3 bus couplers
- Easy project planning and configuration with EcoStruxure Machine Expert
- Robust design for use in demanding environments
- Certified according to CE, cULus/CSA, EAC, and RCM for high safety standards.
