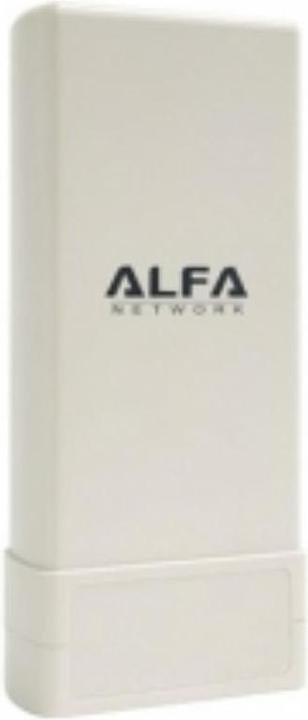

Alfa Network - WISP-NSR 11b/g/n Outdoor CPE

WISP-NSR is a low-cost 802.11n outdoor AP/CPE operating in the 2.4 GHz band and is compliant with the IEEE 802.11b/g standard. It features a built-in 9 dBi high-gain panel antenna, making it suitable for CPE and PTP environments without the need for an external antenna. WISP-NSR supports passive PoE, allowing for quick and simple installation without environmental limitations.

Features

• High-speed data rates: Providing faster data rates of up to 150 Mbps and compatible with legacy 802.11b/g equipment.
• Advanced robust security firewall: With SPI to protect the internal host from hacker attacks. Wireless security is comprehensive and includes WPA/WPA2 PSK.
• Feature-rich: WDS, Dual SSIDs, Static Routing, QoS, and more.

Standard: IEEE 802.11b/g/n

Operation modes:

• Router
• Bridge
• Wireless ISP

Antenna: 9 dBi panel antenna

Frequency band: 2.400 ~ 2.484 GHz

Security:

• 64/128 bit WEP
• WPA (TKIP with IEEE 802.1x)
• WPA2 (AES with IEEE 802.1x)
• WPA Mixed

Data rate:

• 802.11n (40 MHz): up to 150 Mbps
• 802.11n (20 MHz): up to 72 Mbps
• 802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps
• 802.11b: 11, 5.5, 2, 1 Mbps

Sensitivity:

• 802.11b: -90
• 802.11g: -75
• 802.11n: -71

Interface:

• WAN x1
• LAN x1

TX power: 20 dBm

Power source: 12 V passive PoE

Operation temperature: -20°C ~ 60°C

Storage humidity: 10% ~ 90% (non-condensing)

Dimension: 93 x 70 x 26 mm

Weight: 74 g.
