AsRock B860 Pro-A DDR5 Intel S retail

LGA 1851, Intel B860, ATX
Price in EUR including VAT
Delivered Tue, 11-11
Only 1 piece in stock
free shipping

Product details

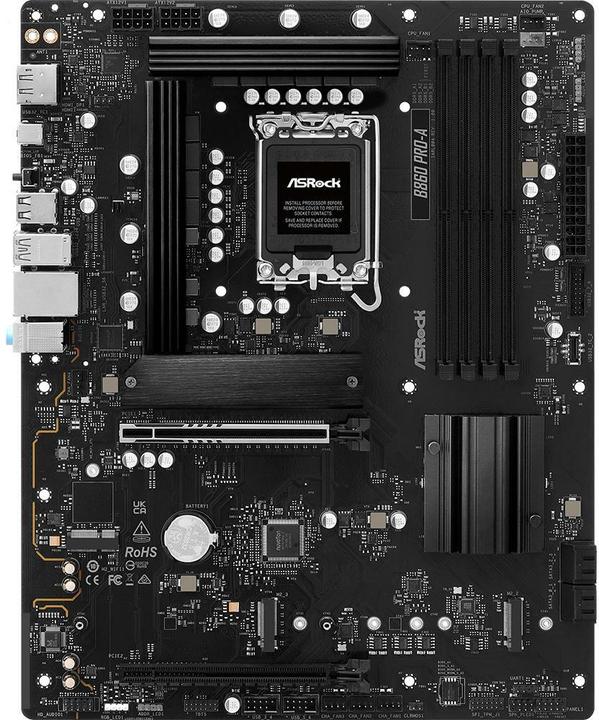

The ASRock B860 Pro-A is a powerful ATX motherboard designed for the latest Intel Core Ultra processors of the 2nd generation. With an LGA1851 socket and the Intel B860 chipset, it provides a solid foundation for high-performance computing applications. The motherboard supports up to 256 GB of DDR5 RAM across four DIMM slots, allowing for high memory capacity for demanding applications. The storage options are versatile, featuring four SATA 600 ports and three Hyper M.2 interfaces that offer fast data transfer and flexible storage solutions. Additionally, the B860 Pro-A is equipped with a variety of USB ports, including USB-C 3.2 Gen 2x2, enabling quick connections to modern peripherals. The integrated 2.5 Gigabit Ethernet interface and Bluetooth 5.3 ensure reliable network connectivity and wireless communication. With HD audio and support for multiple audio channels, the motherboard is also well-suited for multimedia applications.

  • Supports Intel Core Ultra processors of the 2nd generation
  • Maximum RAM capacity of 256 GB DDR5
  • Versatile storage options with 4 SATA 600 and 3 Hyper M.2 interfaces
  • Extensive USB ports, including USB-C 3.2 Gen 2x2
  • Integrated 2.5 Gigabit Ethernet and Bluetooth 5.3 for enhanced connectivity.

Key specifications

Memory type
DDR5 RAM
Number of memory modules (RAM)
4 x
Internal connection options
M.2 (1x)S-ATA III (4x)
Wireless transmission
Bluetooth
Mainboard features
Front panel audio connectorRGB header
Item number
53181627

General information

Manufacturer
AsRock
Category
Motherboards
Manufacturer no.
90-MXBRN0-A0UAYZ
Release date
27-11-2024
External links

Motherboard properties

Form factor
ATX
Socket
LGA 1851
Chipset
Intel B860
Mainboard features
Front panel audio connectorRGB header
Operating system compatibility
Windows
BIOS type
EFI AMI
Wireless transmission
Bluetooth

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
4 x
Max. memory (RAM)
256 GB
Memory chip
DDR5 SDRAM
Max. RAM OC
8666 MHz
Memory type
DDR5 RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
DisplayPort (1x)HDMI (1x)
Video connection version
Display port 1.4

Network

Network connections
RJ45 Gigabit Ethernet (1x)
Ethernet controller brand
Realtek
Ethernet controller
Dragon RTL8125BG
Max. port speed
2.50 Gbit/s

Audio

Chip
Realtek ALC897
Audio channel
7.1 Channel
Audio Connections
Jack 3.5mm Line In (1x)Microphone

Data storage

RAID configuration
0110

Internal interfaces

Internal connection options
M.2 (1x)S-ATA III (4x)
Expansion slot
PCI Express x16 (Gen 5) (1x)
PCI express version (max.)
5
Number of fan connector
6

Further connections

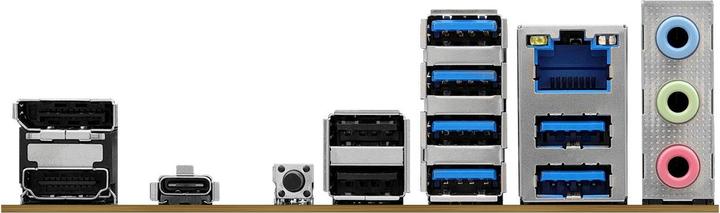

USB ports
USB-AUSB-C
Exact USB ports
USB-A 2.0 (2x)USB-A 3.2 Gen 1 (1x)USB-A 3.2 Gen 1 (6x)USB-C 3.2 Gen 2x2 (1x)

Power supply

Power connectors
24-pin ATX2x 8-pin PCI-E

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

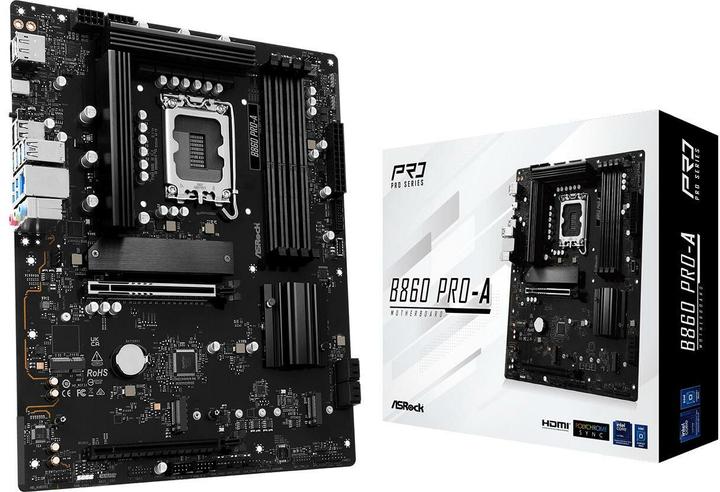

Scope of delivery

Scope of delivery
Sata CablesScrews

Product dimensions

Length
244 mm
Width
305 mm
Height
244 mm

Package dimensions

Length
35 cm
Width
28.20 cm
Height
7.50 cm
Weight
1.54 kg
