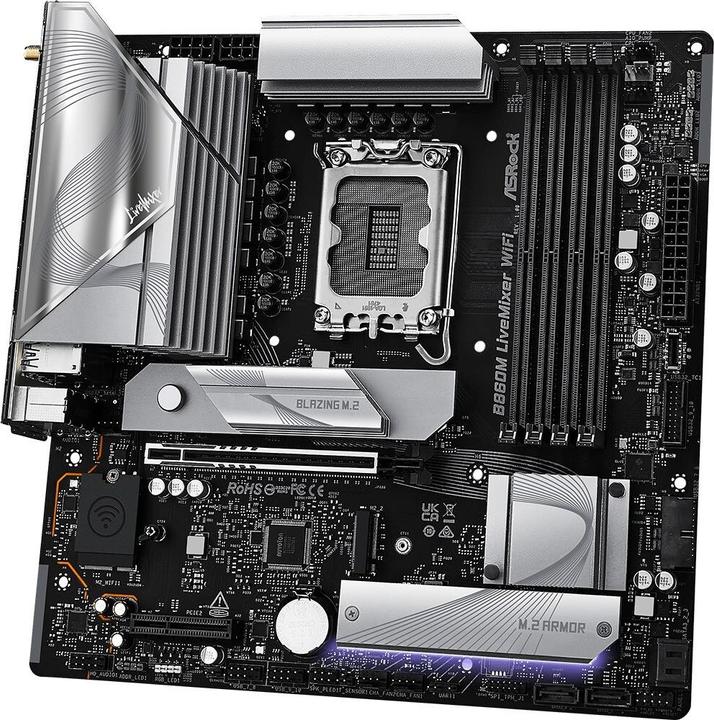

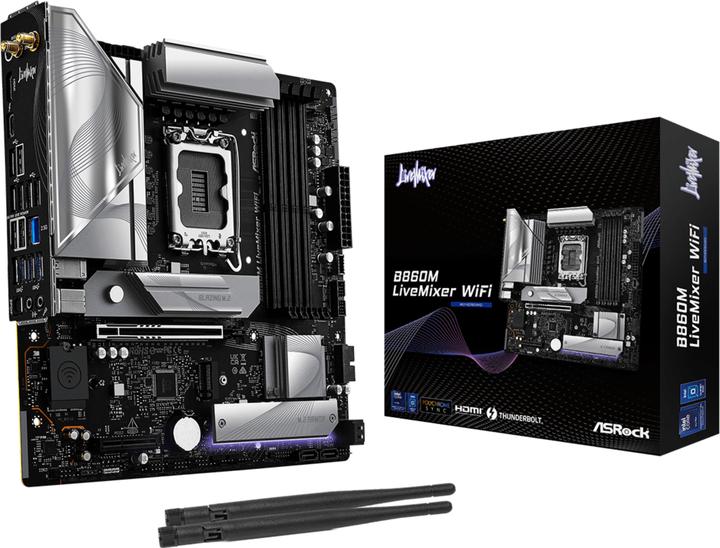

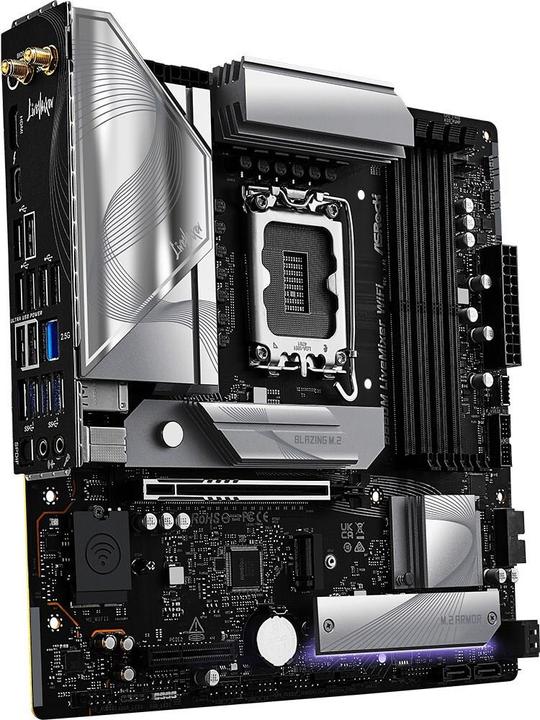

AsRock B860M LiveMixer WiFi DDR5 Intel S retail
Socket S1, Intel B860, mATXOnly 1 item in stock
Product details
The ASRock B860M LiveMixer WiFi is a powerful Micro-ATX motherboard designed for the latest Intel Core Ultra series processors. With the LGA 1851 socket and Intel B860 chipset, it provides a solid foundation for high-performance computing applications. The motherboard supports up to 256 GB of DDR5 RAM, allowing for ample memory capacity for demanding applications and multitasking. Support for various storage drive interfaces, including M.2 and SATA III, offers flexible storage options and fast data transfer rates. Additionally, the motherboard is equipped with state-of-the-art networking technology, including 2.5 Gigabit Ethernet and Wi-Fi 6E, ensuring a fast and reliable internet connection. The array of USB ports, including USB4 and USB-C, facilitates easy connections for peripherals and accessories.
- Supports up to 256 GB of DDR5 RAM with 4 DIMM slots
- Integrated Wi-Fi 6E for fast wireless connections
- Two Hyper M.2 slots for speedy NVMe SSDs
- PCI Express 5.0 x16 expansion slot for graphics cards
- Supports RAID configurations 0, 1, 5, and 10 for data security and performance.
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 (1x), S-ATA III (4x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Front panel audio connector, RGB header, Trusted Platform Module |
Item number | 53181619 |
Manufacturer | AsRock |
Category | Motherboards |
Manufacturer no. | 90-MXBRT0-A0UAYZ |
Release date | 27-11-2024 |
Form factor | Micro ATX (mATX) |
Socket | Socket S1 |
Chipset | Intel B860 |
Mainboard features | Front panel audio connector, RGB header, Trusted Platform Module |
Operating system compatibility | Windows |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 256 GB |
Memory chip | DDR5 |
Max. RAM OC | 6400 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |
Video connections | HDMI Type A |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Dragon RTL8125BG |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC1220 |
Audio channel | 7.1 Channel |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | M.2 (1x), S-ATA III (4x) |
Expansion slot | PCI Express x16 (Gen 5) (1x) |
PCI express version (max.) | 5 |
Number of fan connector | 3 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (6x), USB-A 3.2 Gen 2 (1x) |
Power connectors | 24-pin ATX, 8-pin PCI-E |
Country of origin | China, Germany, Vietnam |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 piece motherboard, Sata Cables |
Length | 244 mm |
Width | 244 mm |
Length | 30 cm |
Width | 27 cm |
Height | 6 cm |
Weight | 1.50 kg |
