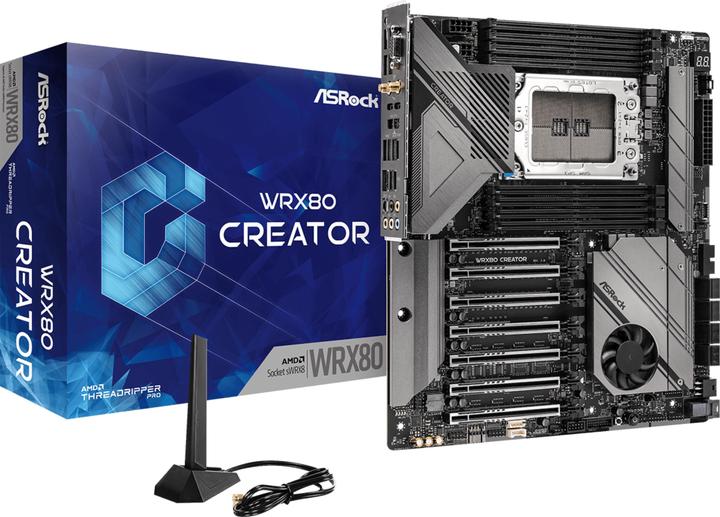

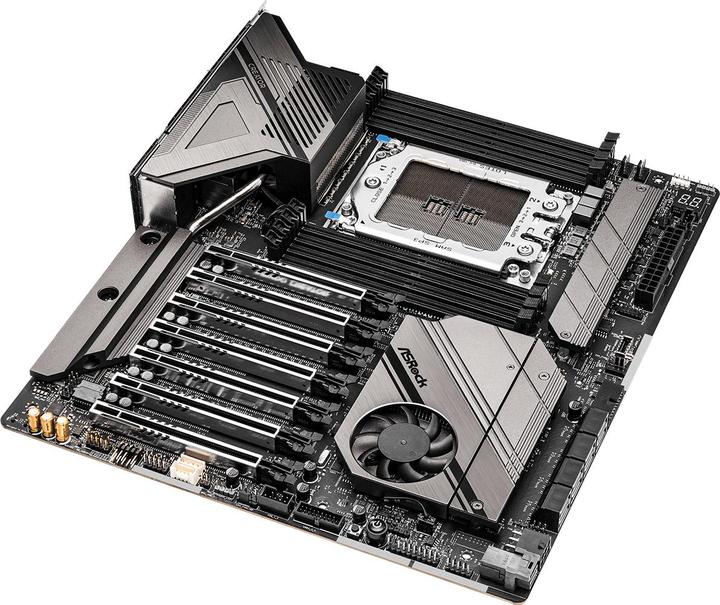

AsRock WRX80 CREATOR WRX8 R2.0
sWRX8, AMD WRX80, E-ATX6 pieces in stock at supplier
Product details
The Dr.MOS design features the latest SPS technology (Smart Power Stage). It is optimized for monitoring the current and temperature of each phase, providing a more stable and cleaner power supply to the CPU with improved performance and overclocking capability. It is equipped with a composite VRM heatsink that combines two fans, an arrangement of aluminum fins, and a heat pipe for maximum heat dissipation.
Compared to traditional DIP-style PCIe slots, the SMT-type PCIe slot enhances signal flow and maximizes stability at high speeds, marking a significant breakthrough in fully supporting the lightning speed of the latest PCIe 4.0 standard. With AMD Ryzen Threadripper Pro processors, the ASRock WRX80 Creator 5 supports full-speed PCIe Gen4 x16 slots, delivering the full power of PCIe 4.0 to your GPU and add-in cards. It meets all professional design, deep learning, simulation, and rendering applications.
Processor family | Ryzen Threadripper |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 8 x |
Internal connection options | M.2 PCIe (1x) |
Wireless transmission | Bluetooth, Wi-Fi |
Item number | 23617354 |
Manufacturer | AsRock |
Category | Motherboards |
Manufacturer no. | 90-MXBKH0-A0UAYZ |
Release date | 9-11-2022 |
Form factor | E-ATX |
Socket | sWRX8 |
Chipset | AMD WRX80 |
Operating system compatibility | Windows, Windows 10 |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Processor family | Ryzen Threadripper |
Memory form factor | DIMM |
Number of memory modules (RAM) | 8 x |
Max. memory (RAM) | 2048 GB |
Memory chip | DDR4 RAM |
Supported memory speed | 3200 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |

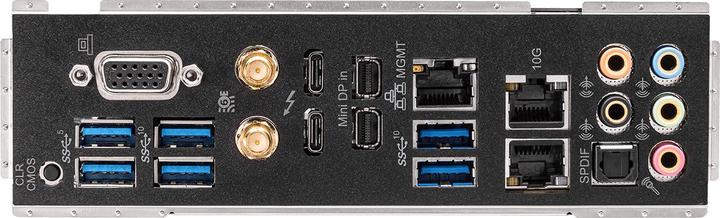

Video connections | D-Sub (1x) |
Multi-GPU technology | AMD CrossfireX |
Network connections | RJ45 (2x) |
Ethernet controller brand | Marvell |
Ethernet controller | Marvell AQtion AQC113CS |
Max. port speed | 10 Gbit/s |
Chip | Realtek ALC4050H |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm (1x) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | M.2 PCIe (1x) |
Expansion slot | PCI Express x16 (7x) |
PCI express version (max.) | 4 |
Number of fan connector | 5 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (1x), USB-A 3.2 Gen 2 (4x) |
Power connectors | 8-pin PCI-E |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Sata Cables |
Length | 272 mm |
Width | 305 mm |
Length | 36.10 cm |
Width | 31.60 cm |
Height | 8.40 cm |
Weight | 2.45 kg |
