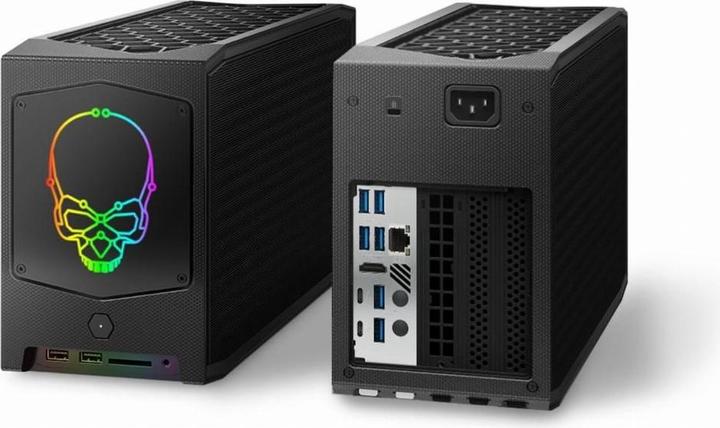

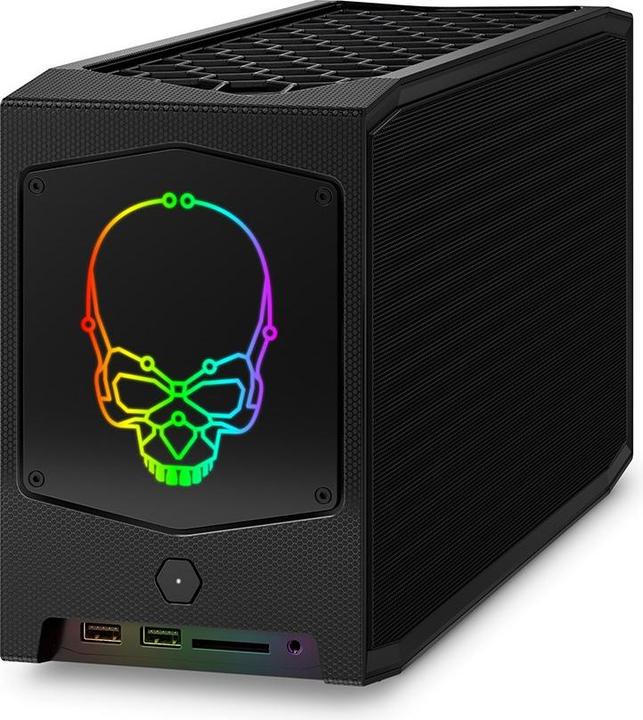

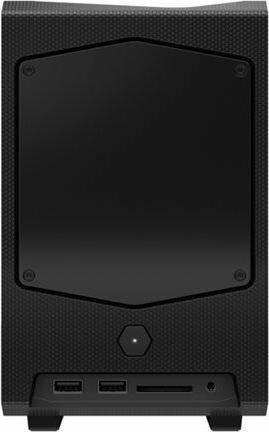

ASUS NUC 11 Extreme Kit

Intel Core i7-11700B
Currently out of stock

Product details

Intel Directed I/O Virtualization Technology (VT-d)
Intel Directed I/O Virtualization Technology (VT-d) continues the existing support for virtualization solutions for IA-32 (VT-x) and Itanium processor systems (VT-i) and expands it with new support for I/O device virtualization. Intel VT-d can help users improve the security and reliability of systems as well as the performance of I/O devices in virtualized environments.

Intel Virtualization Technology (VT-x)
With Intel Virtualization Technology (VT-x), a hardware platform can be utilized as multiple "virtual" platforms. It offers improved manageability through reduced downtime and maintains productivity by shifting computing processes into separate partitions.

Intel AES New Instructions
Intel AES New Instructions (Intel AES-NI) is a set of instructions for fast and secure encryption and decryption of data. AES-NI are valuable components for cryptographic applications, such as mass encryption/decryption, authentication, random number generation, and authentication encryption.

Max. Turbo Frequency
The maximum turbo frequency is the highest single-core clock frequency at which the processor can operate using Intel Turbo Boost technology and, if available, Intel Thermal Velocity Boost. The frequency is measured in gigahertz (GHz), or billions of cycles per second.

Intel vPro Platform Qualification
The Intel vPro platform is a set of hardware and technologies used to create business computing endpoints with top-tier performance, integrated security, modern manageability, and platform stability.

Intel Rapid Storage Technology
Intel Rapid Storage Technology provides protection, performance, and expandability for desktop and mobile platforms.

Key specifications

Number of processor cores
8 -Core
Graphics card model
Intel UHD Graphics
Internal connection options
M.2 (2x)PCI Express x16 (1x)PCI Express x4 (1x)
Network connections
RJ45 (1x)
Video connections
HDMI (1x)
Memory type
DDR4-RAM
USB ports
Thunderbolt 4USB-A
Item number
21166306

General information

Manufacturer
ASUS
Category
Barebones
Manufacturer no.
RNUC11BTMI70002
Release date
28-3-2022

Barebone properties

Design
All-in-one

Processor

Processor type
Intel Core i7-11700B
Clock frequency
4.80 GHz
Number of processors
1 x
Number of processor cores
8 -Core
Number of threads
16
Socket
FCBGA1787
Max. turbo clock rate
4.80 GHz
Max. TDP
65 W
Processor properties
Intel vPro

Memory

Memory type
DDR4-RAM
Memory form factor
SO-DIMM
Number of pins
260 x
Memory Slots available
2
Max. memory slots
2
Max. RAM
64 GB
Memory voltage
1.20 V

Graphics card properties

Graphics card model
Intel UHD Graphics
Hardware application range
Gaming
Max. connected monitors
3 x

Internal connections

Internal connection options
M.2 (2x)PCI Express x16 (1x)PCI Express x4 (1x)
RAID configuration
01

External connections

USB ports
Thunderbolt 4USB-A
Exact USB ports
Thunderbolt 4 (2x)

Network

Network connections
RJ45 (1x)
Max. port speed
2500 Mbit/s

Wireless transmission

Connectivity
BluetoothWLAN
Wi-Fi standard
Wi-Fi 6 / 802.11ax
Wi-fi frequency
6 GHz
Bluetooth version
5.2

Video connections

Video connections
HDMI (1x)

Audio connections

Audio outputs
Headphones Out (1x)

Card reader properties

Memory card type
SDXC

Power supply properties

Power
650 W

Sustainability

Manufacturer commitment
RE100SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Product dimensions

Width
120 mm
Length
357 mm
Height
189 mm

Package dimensions

Length
55 cm
Width
39 cm
Height
34 cm
Weight
8.08 kg
