Product details

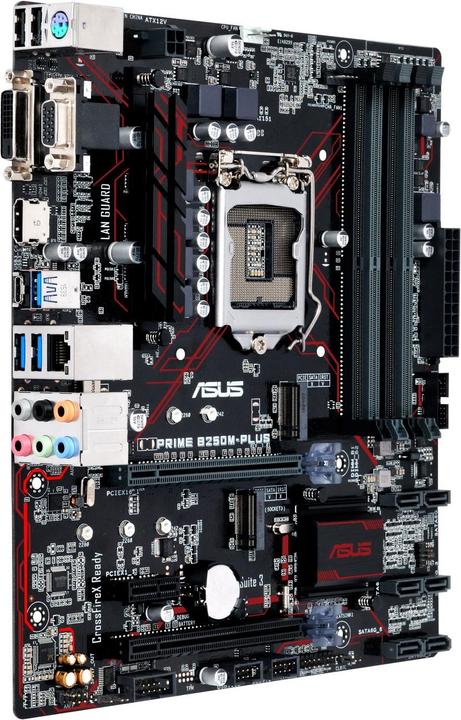

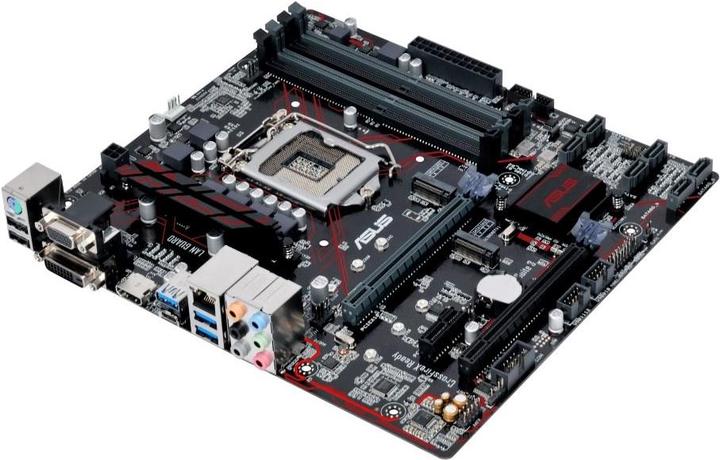

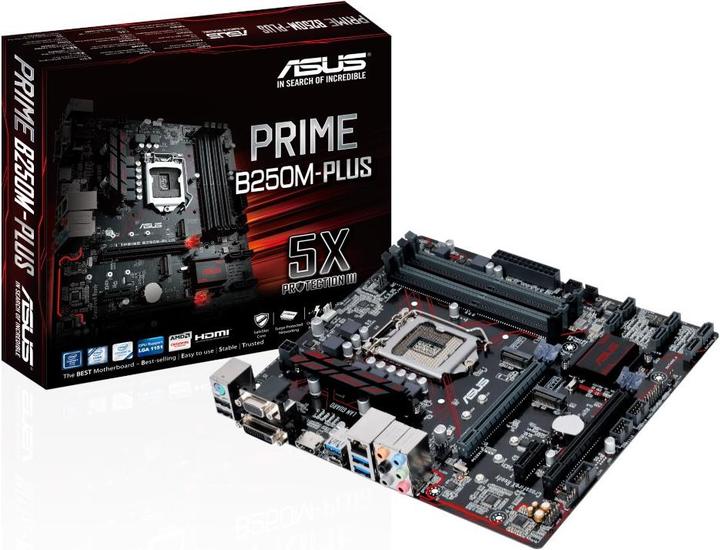

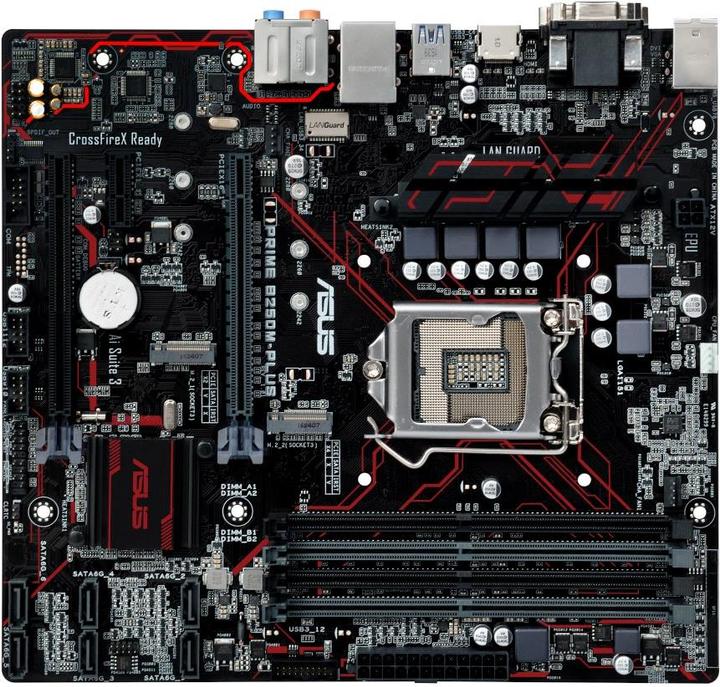

The ASUS PRIME B250M-PLUS is a powerful Micro-ATX motherboard designed for use with 7th generation Intel processors. It supports a variety of processors, including Intel® Celeron® and Intel® Pentium®, and offers high flexibility in memory selection. With support for up to 64 GB of DDR4 SDRAM and speeds of up to 2400 MHz, this motherboard is ideal for users seeking a reliable and high-performance platform for their PC building projects. The integrated Gigabit Ethernet interface ensures fast network connections, while the UEFI AMI BIOS type provides a user-friendly interface for system configuration. The ASUS PRIME B250M-PLUS is thus an excellent choice for anyone in need of a robust and versatile motherboard.
- Supports up to 64 GB of DDR4 SDRAM with speeds of 2133 and 2400 MHz
- Compatible with 7th generation Intel processors via the LGA 1151 socket
- Integrated Gigabit Ethernet interface for fast network connections
- BIOS type: UEFI AMI for user-friendly system configuration
- Versatile connectivity options, including USB 3.0 and S-ATA III.
Processor family | Core i3 7th Gen, Core i5 7th Gen, Core i7 7th Gen |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | S-ATA III (6x) |
Mainboard features | Clear CMOS Button |
Item number | 6079574 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB0SI0-M0EAY0 |
Release date | 19-1-2017 |
External links |
Form factor | Micro ATX (mATX) |
Socket | LGA 1151 |
Chipset | Intel B250 |
Mainboard features | Clear CMOS Button |
BIOS type | UEFI AMI |
Processor family | Core i3 7th Gen, Core i5 7th Gen, Core i7 7th Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 64 GB |
Memory chip | DDR4-2133, DDR4-2400 |
Max. RAM OC | 2400 MHz |
Supported memory speed | 2133 MHz, 2400 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |

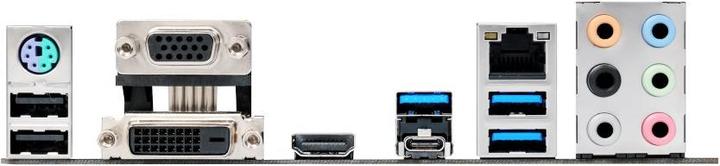

Video connections | VGA (1x) |
Multi-GPU technology | AMD CrossfireX |
Network connections | RJ45 (1x) |
Ethernet controller brand | Intel |
Ethernet controller | Intel I219V |
Max. port speed | 1 Gbit/s |
Chip | Realtek ALC887 |
Audio channel | 7.1 Channel |
Audio Connections | Headphone output (1x) |
Internal connection options | S-ATA III (6x) |
Expansion slot | PCI Express x1 (1x), PCI Express x16 (2x) |
Number of fan connector | 3 |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
CO₂-Emission | |
Climate contribution |
Scope of delivery | S-ATA cable |
Length | 244 mm |
Width | 224 mm |
Height | 224 mm |
Length | 5 cm |
Width | 28 cm |
Height | 26 cm |
Weight | 814 g |
