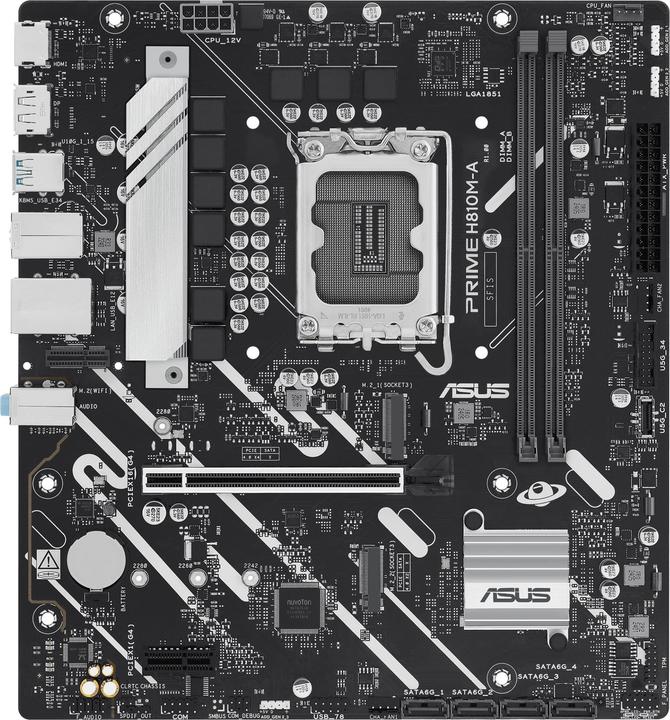

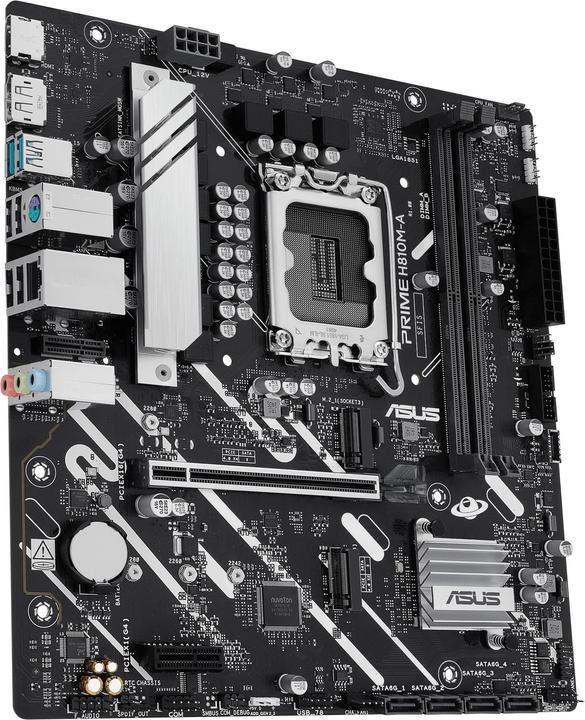

ASUS PRIME H810M-A-CSM
Socket S1, Intel H810, mATXMore than 10 pieces in stock
Product details
The ASUS PRIME H810M-A-CSM motherboard is a powerful and versatile solution for PC building projects. It supports DDR5 memory technology and is compatible with the Intel LGA1851 socket, making it ideal for modern Intel processors. With a compact mATX form factor, this motherboard is suitable for both gaming and workstations that require efficient use of available space. The robust design and high-quality components ensure reliable performance and longevity. The motherboard also offers a variety of connectivity options to facilitate the integration of additional components and maximise expandability.
- Supports DDR5 memory for improved performance and speed
- Compatible with Intel LGA1851 processors for current and future applications
- mATX form factor for flexible chassis options and space savings
- Robust construction with high quality components for reliability and longevity.
Processor family | Core Ultra 5 2nd Gen, Core Ultra 7 2nd Gen, Core Ultra 9 2nd Gen |
Memory type | DDR5 RAM |
Mainboard features | RGB header |
Internal connection options | S-ATA III (4x), USB 2.0 Header (1x) |
Number of memory modules (RAM) | 2x |
Item number | 53976704 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1KK0-M0EAYC |
Release date | 18-12-2024 |
Form factor | Micro ATX (mATX) |
Socket | Socket S1 |
Chipset | Intel H810 |
Mainboard features | RGB header |
Operating system compatibility | Windows 10 |
BIOS type | UEFI AMI |
Processor family | Core Ultra 5 2nd Gen, Core Ultra 7 2nd Gen, Core Ultra 9 2nd Gen |
Memory form factor | DIMM |
Number of memory modules (RAM) | 2x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR5-6400 |
Max. RAM OC | 6400 MHz |
Supported memory speed | 6400 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |

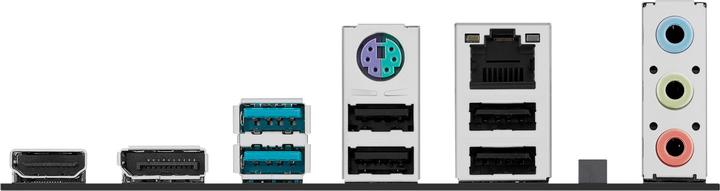

Video connections | DisplayPort (1x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 (1x) |
Ethernet controller brand | Intel |
Ethernet controller | Intel I219V |
Max. port speed | 1 Gbit/s |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm (3x) |
Internal connection options | S-ATA III (4x), USB 2.0 Header (1x) |
Expansion slot | PCI Express x16 (Gen 4) (1x) |
PCI express version (max.) | 4 |
Number of fan connector | 3 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (4x), USB-A 3.2 Gen 2 (2x) |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |

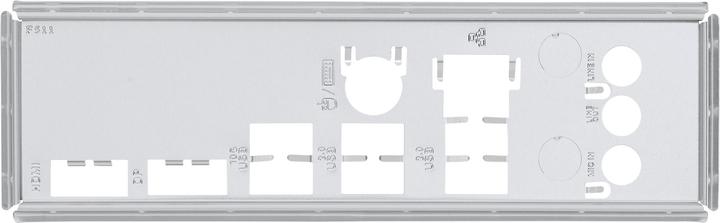

Scope of delivery | 1 x I/O-Bl, 2 x SATA 6 GB/s cable, PRIME H810M-A-CSM |
Length | 265 mm |
Width | 244 mm |
Height | 37 mm |
Weight | 930 g |
Product Safety |
Length | 27 cm |
Width | 27 cm |
Height | 5.30 cm |
Weight | 928 g |
