ASUS TUF Gaming Z490-PLUS
LGA 1200, Intel Z490, ATXFree shipping starting at 30,–
Features and proven durability. Designed with military-grade components, enhanced power delivery, and a comprehensive range of cooling options, the motherboard offers top-tier performance with unwavering stability in gaming. When you build a system with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance - an ASUS collaboration with trusted partner companies that ensure easy assembly, optimal compatibility, and a cohesive look, from components to the case.
Processor family | Core i3 10th Gen, Core i5 10th Gen, Core i7 10th Gen, Core i9 10th Gen |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | S-ATA III (6x) |
Mainboard features | Front panel audio connector |
Item number | 13122460 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1340-M0EAY0 |
Release date | 20-5-2020 |
Form factor | ATX |
Socket | LGA 1200 |
Chipset | Intel Z490 |
Mainboard features | Front panel audio connector |
Operating system compatibility | Windows 10, Windows 10 Home |
BIOS type | UEFI AMI |
Processor family | Core i3 10th Gen, Core i5 10th Gen, Core i7 10th Gen, Core i9 10th Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4-2666 |
Max. RAM OC | 4800 MHz |
Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz, 3000 MHz, 3200 MHz, 4300 MHz, 4400 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |
Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | HDMI 1.4b |
Multi-GPU technology | AMD 2-Way CrossFireX |
Network connections | RJ45 (1x) |
Ethernet controller brand | Intel |
Ethernet controller | Intel I219-V |
Chip | Realtek ALC S1200a |
Audio channel | 7.1 Channel |
Audio Connections | Coaxial S/PDIF (1x) |
Internal connection options | S-ATA III (6x) |
Expansion slot | PCI Express x16 (1x) |
PCI express version (max.) | 3 |
Power connectors | 24-pin ATX, 4-pin ATX 12V, 8-pin ATX 12V |
CO₂-Emission | |
Climate contribution |

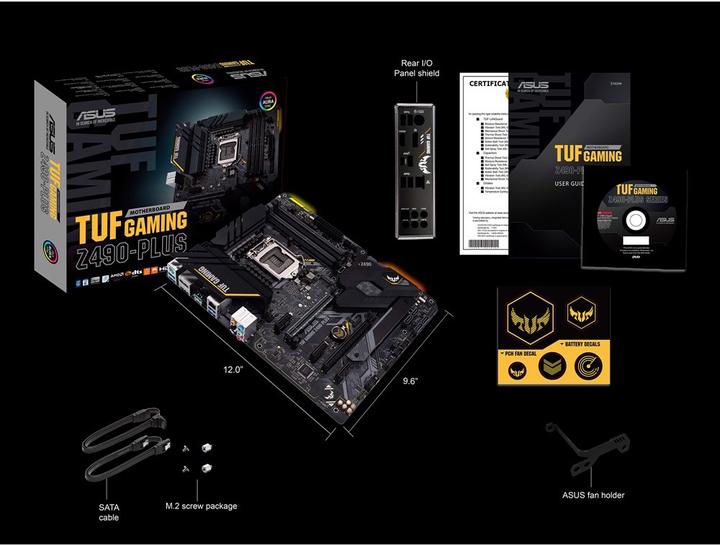

Scope of delivery | I/O back panel, 1 M.2 screw, TUF sticker, ASUS ventilation bracket |
Length | 244 mm |
Width | 24.40 mm |
Height | 30.50 mm |
Length | 34 cm |
Width | 27.30 cm |
Height | 7 cm |
Weight | 1.56 kg |
