- USB Typ C
- Sehr gut verarbeitet
- Gehobene Materialien
- Gute Festplattenentkopplung
- Sehr gutes Kabelmanagement

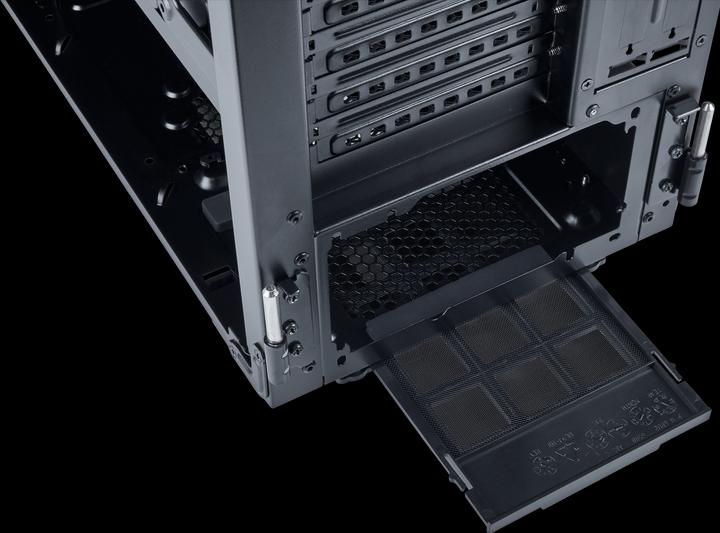

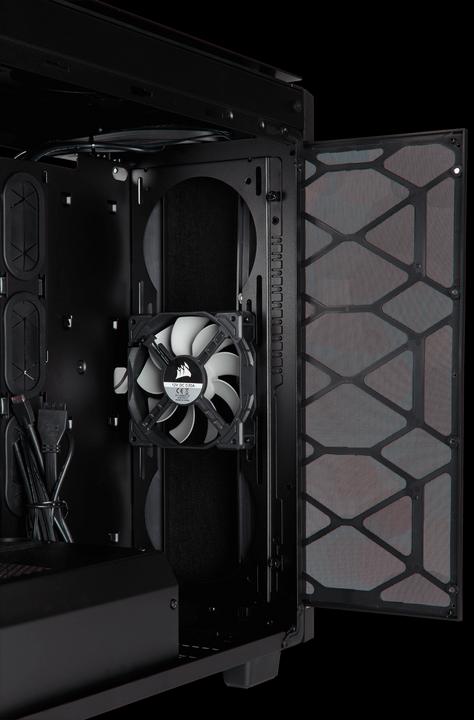

- Schnell erreichbare Staubfilter

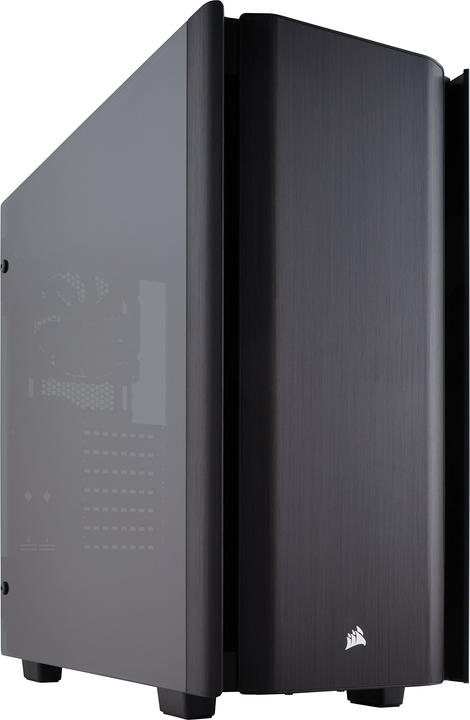

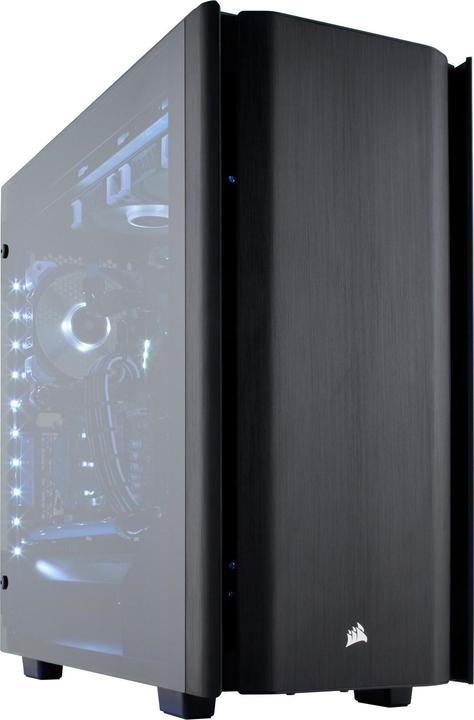

Corsair Obsidian 500D
ATXCurrently out of stock
Free shipping starting at 30,–
Product details

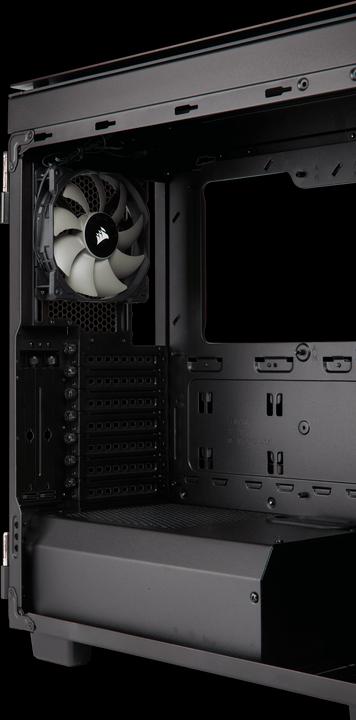

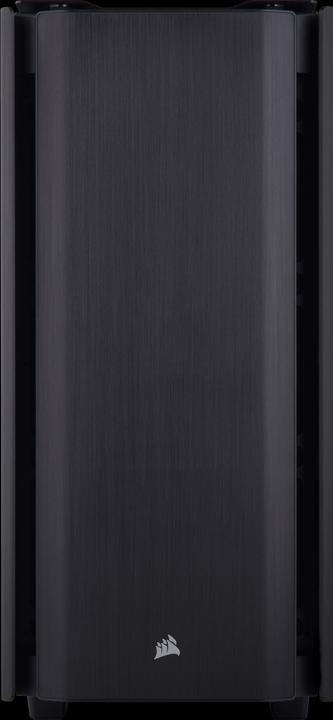

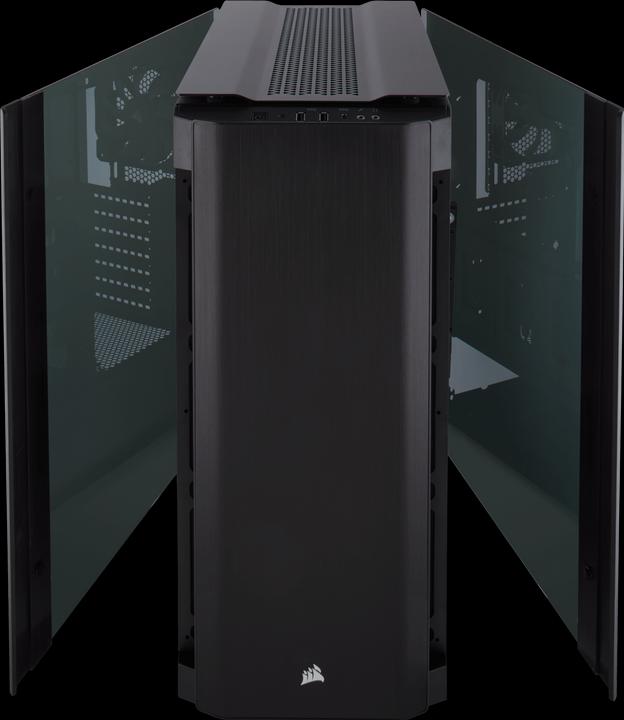

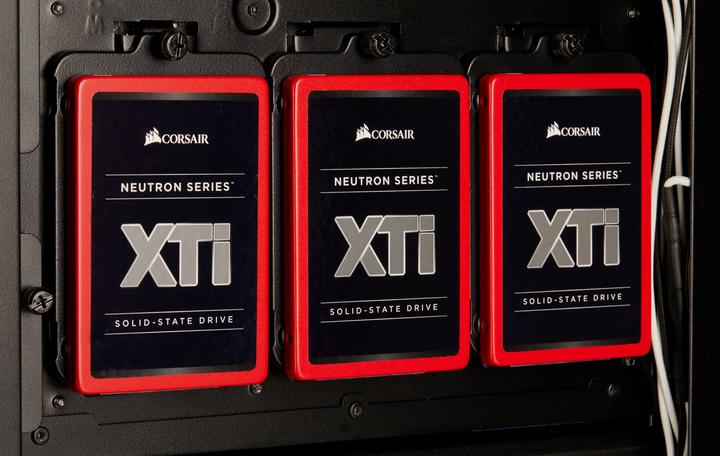

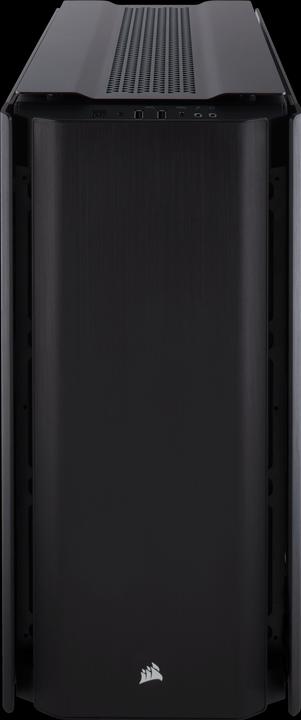

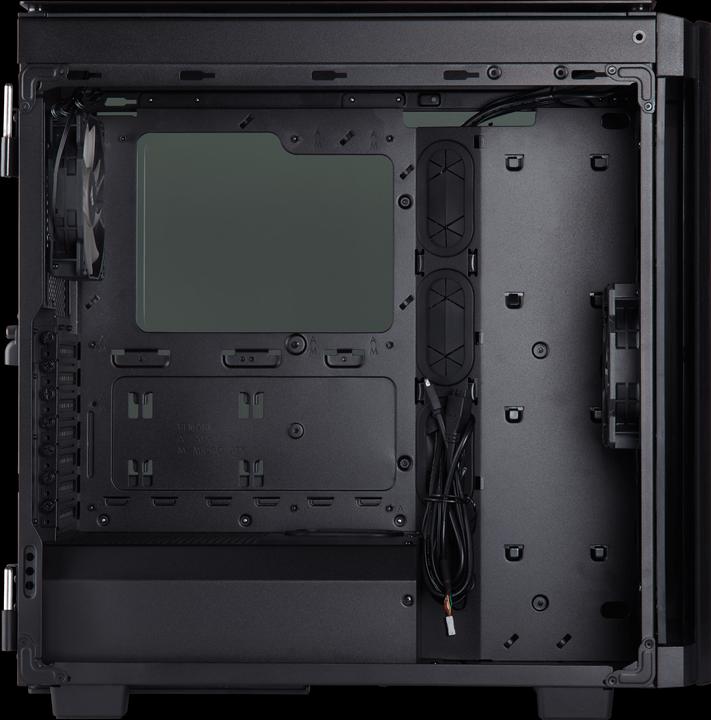

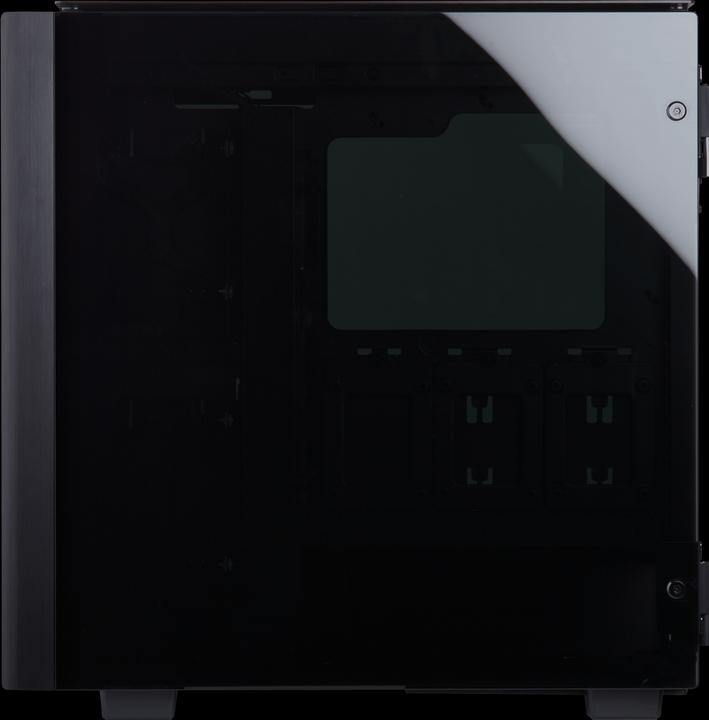

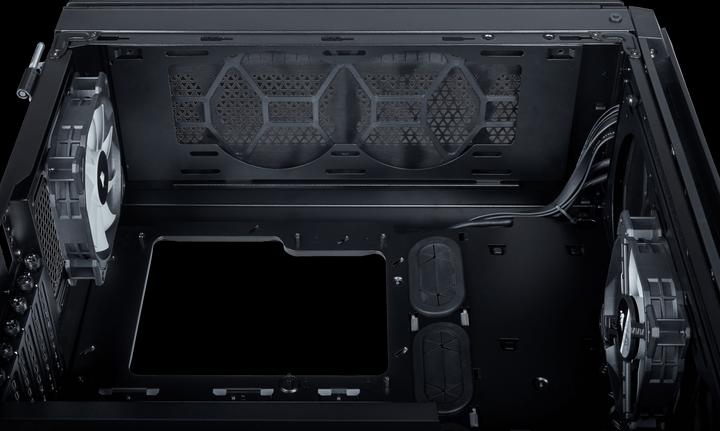

The distinctive style of the Obsidian Series is characterized by clear contours and side panels made of tempered smoked glass. The aluminum front panel, top cover, and door handles provide a premium feel and elegant appearance. The Direct Airflow Path design directs air where it is most needed. Removable inserts for up to five fans make it easy to install fans and coolers. Convenient mounts for up to two 3.5-inch HDDs and three 2.5-inch SSDs. Equipped with ultra-fast USB 3.1 (Type C) ports and additional connections for all modern peripherals. Hide the cables with the included power supply cover and rear cable cover behind the motherboard tray to keep your system looking tidy.
PC case design | Midi Tower |
Number of 3.5" drive slots (internal) | 2 x |
Max. length graphics card | 370 mm |

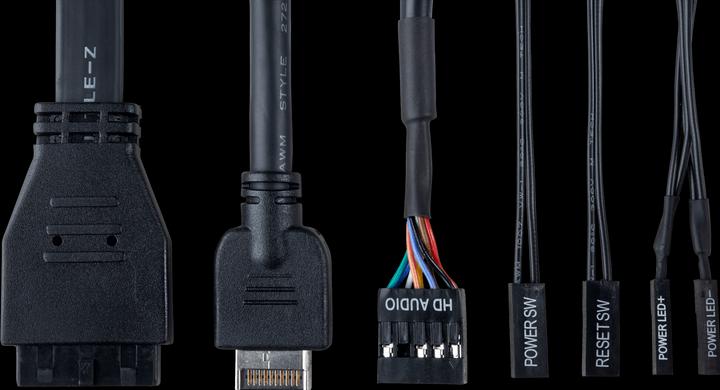

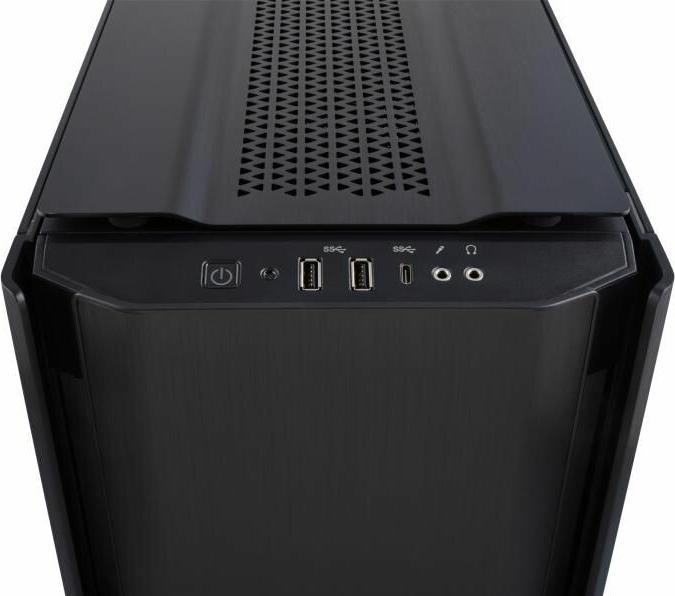

Front connectors | 2x USB 3.0, Headphones, Microphone |
PC case features | Side windows |
Max. height CPU cooler | 170 mm |
Item number | 7873103 |
Manufacturer | Corsair |
Category | PC case |
Manufacturer no. | CC-9011116-WW |
Release date | 17-8-2017 |
External links |
Colour | Black |
Exact colour description | Black |
Material group | Glass, Metal |
Material | Aluminium, Steel, Tempered Glass |
PC case design | Midi Tower |
Form factor | ATX |
Number of 3.5" drive slots (external) | 2 x |
Number of 3.5" drive slots (internal) | 2 x |
"Number of 2.5"" drive slots" | 3 x |
Number of expansion card slots | 7 x |
Max. length graphics card | 370 mm |
Max. height CPU cooler | 170 mm |
Max length of power supply | 225 mm |
PC case features | Side windows |
Front connectors | 2x USB 3.0, Headphones, Microphone |
Number of fans | 1 x |
Number of fan slots | 6 x |
Fan location | Front side, Rear side, Top side |
Number of radiator mounts | 3 |
Radiator locations | Front side, Rear side, Top side |

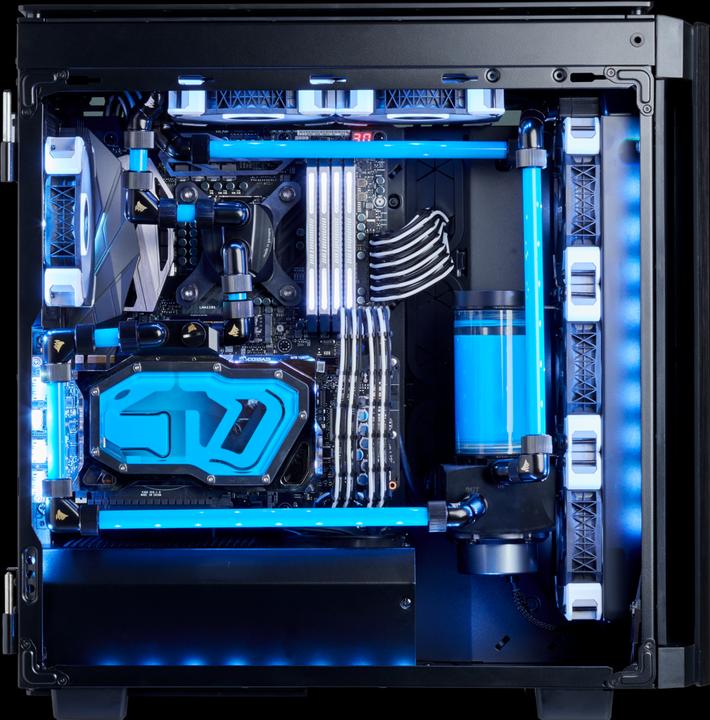

Cooling properties | Water cooling possible |
Fans included | 1x 120mm |
Fan mount locations | 2x 140mm, 3x 120mm |
Radiator mount locations | 1x max. 360mm |
Fans included | 1x 120mm |
Fan mount locations | 1x 120mm |
Radiator mount locations | 1x max. 120mm |
Fans included | Optional fan |
Fan mount locations | 2x 120mm, 2x 140mm |
Radiator mount locations | 1x max. 280mm |
CO₂-Emission | |
Climate contribution |

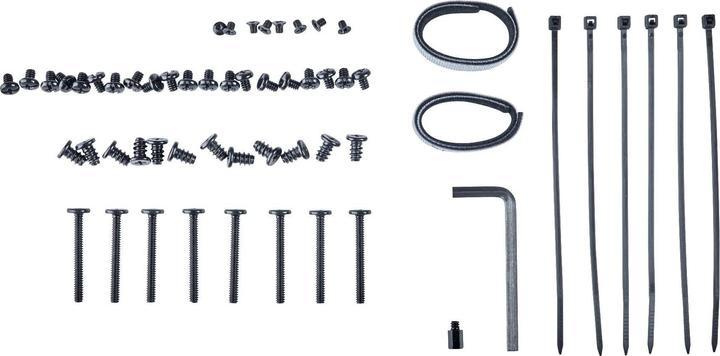

Scope of delivery | Installation material |
Height | 50.80 cm |
Length | 50.20 cm |
Width | 23.30 cm |
Weight | 10.50 kg |
Length | 62 cm |
Width | 60 cm |
Height | 34 cm |
Weight | 13.30 kg |
