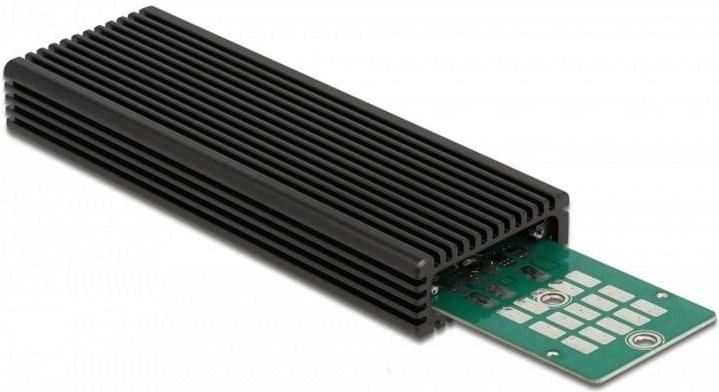

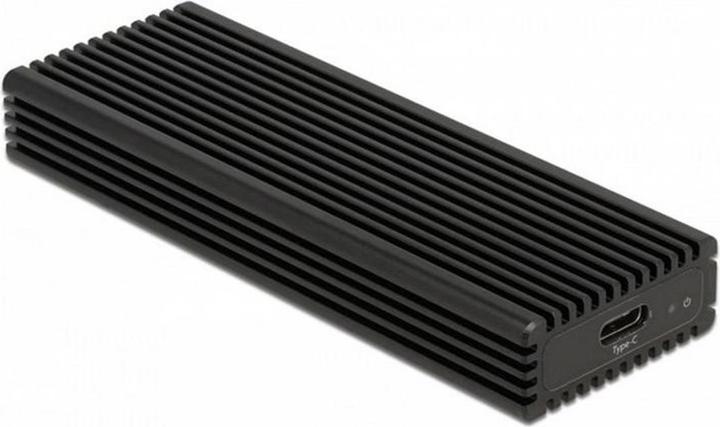

This Delock enclosure allows for the installation of an M.2 PCIe NVMe SSD or an M.2 SATA SSD in 2280, 2260, 2242, and 2230 formats. It can be connected to a PC or notebook via USB. The robust metal housing with cooling fins ensures optimal temperature for the storage device.

The significant advantage of this Delock M.2 enclosure is that both SATA and PCIe (NVMe) M.2 SSDs can be inserted into the enclosure. The storage is automatically recognized by the chipset and can then be used.

Specifications:

External connections: 1x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-C port

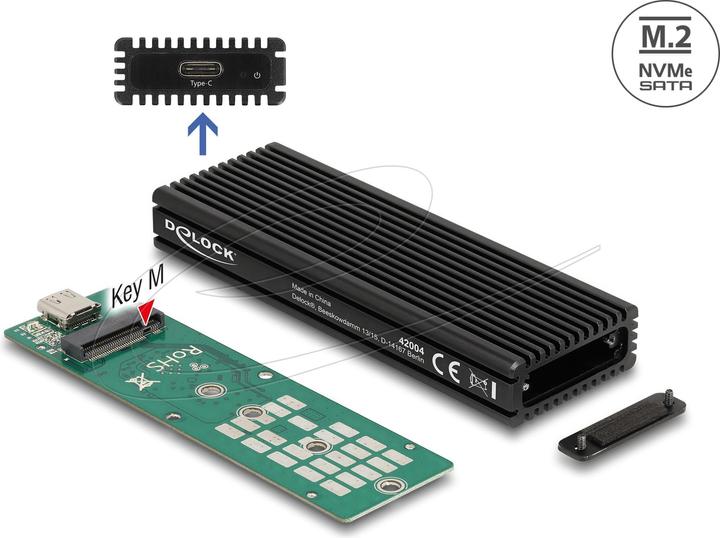

Internal: 1 x 67 Pin M.2 Key M slot
Chipset: Realtek RTL9210B
Supports M.2 modules in 2280, 2260, 2242, and 2230 formats with Key M or Key B+M based on SATA or PCIe (NVMe)
Maximum height of components on the module: 1.5 mm, supports the use of double-sided modules
Supports NVM Express (NVMe)
Bootable
Data transfer rate of up to 10 Gbps
LED indicator for power and access
Metal housing
Dimensions (LxWxH): approx. 104 x 36 x 14 mm
Hot Plug, Plug and Play

System requirements:

Android 10.0 or higher
Chrome OS 83.0 or higher
iPad Air (2020)
iPad Pro (2018)
Linux Kernel 5.4 or higher
Mac OS 10.15.7 or higher
Surface Pro 7
Windows 8.1/8.1-64/10/10-64
PC or notebook with a free USB Type-C or Thunderbolt 3 port

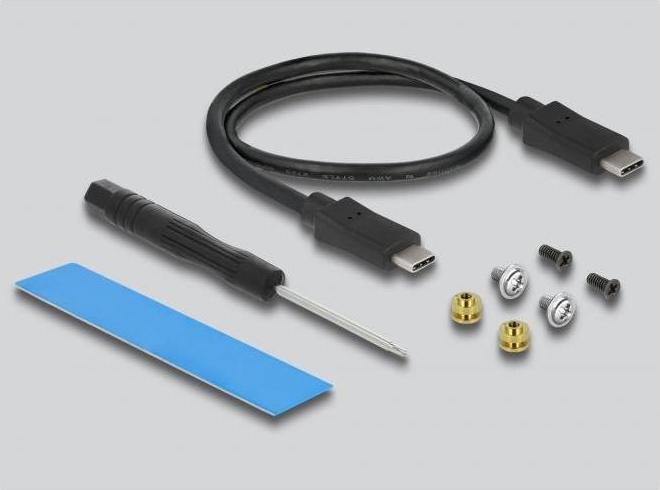

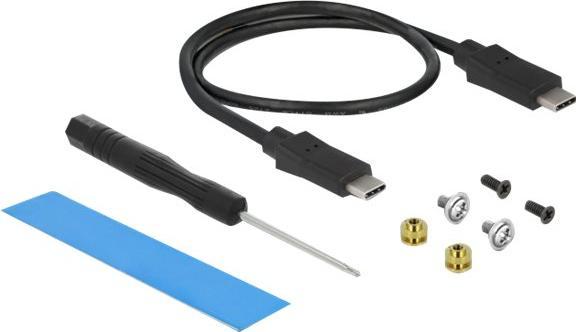

Package contents:

External M.2 enclosure
USB-C to USB-C cable, length approx. 45 cm
1 x thermal pad
Screwdriver
Mounting materials
User manual.
