This patch panel by Delock is the ideal solution for small network installations, distributions in control cabinets, or for applications with limited installation space.

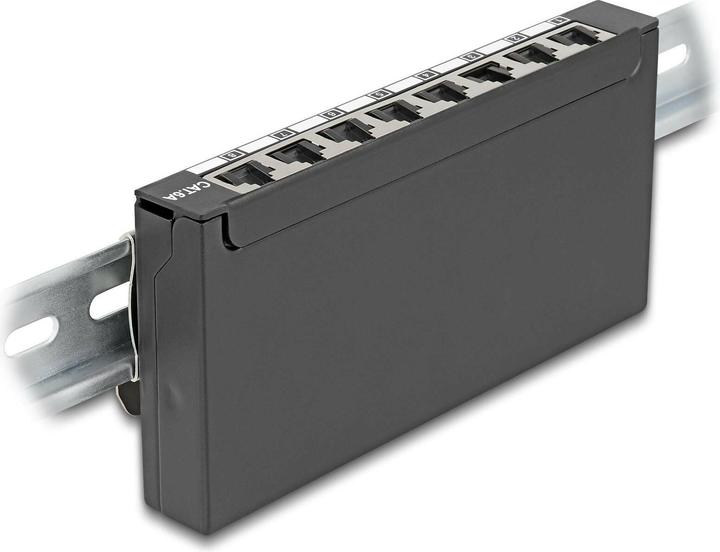

Versatile mounting on table, wall, or top-hat rail

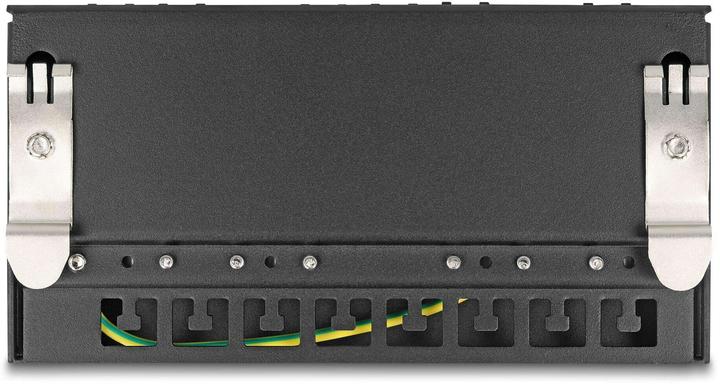

The distributor can be mounted either on a table, on the wall, or on 35 mm wide top-hat rails. The clips included in the scope of delivery enable simple top-hat rail mounting, ideal for distribution cabinets or industrial environments. Alternatively, direct wall mounting is also possible, for example, in small technical rooms, distribution boxes, or anywhere where no rack is available.

RJ45 sockets with dust protection flaps
The RJ45 sockets are equipped with practical dust protection flaps that protect the contacts from dirt and dust.

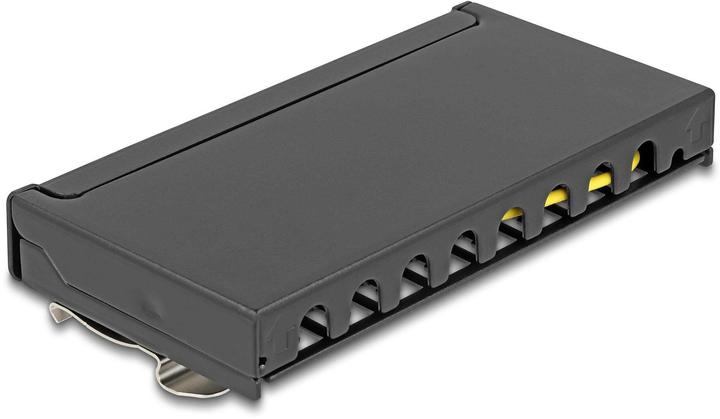

Metal housing
The robust metal housing in a black finish ensures a durable and professional installation.

Technical data:

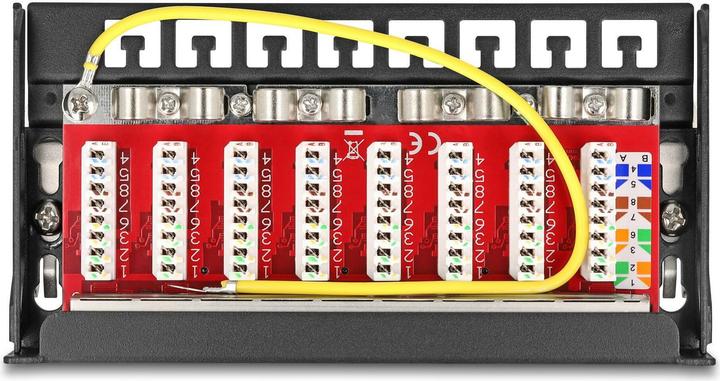

• Connections: 8 x RJ45 socket; 8 x LSA strip
• Cat.6A specification
• Mounting options: Desktop mounting; wall mounting (with drill holes); top-hat rail mounting 35 mm (clips included)
• Shielded
• Assignment in accordance with TIA-568A/B
• For solid and stranded conductors (26 - 22 AWG)
• Housing material: metal
• Colour: black
• Dimensions (LxWxH): approx. 157 x 80 x 22 mm

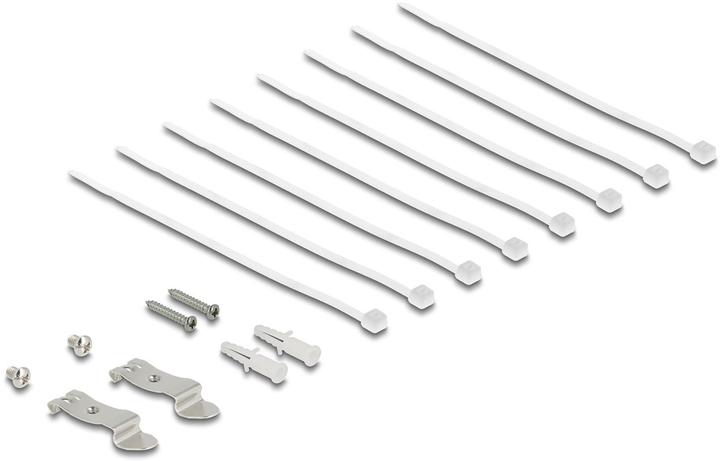

Scope of delivery:

• Patch panel
• Earthing cable
• 2 x top-hat rail clip
• 2 x screw M5 x 8 mm
• 2 x screw 3.7 x 20.0 mm
• 2 x plugs 5.5 x 27.8 mm
• 8 x cable ties 2.5 x 100 mm.
