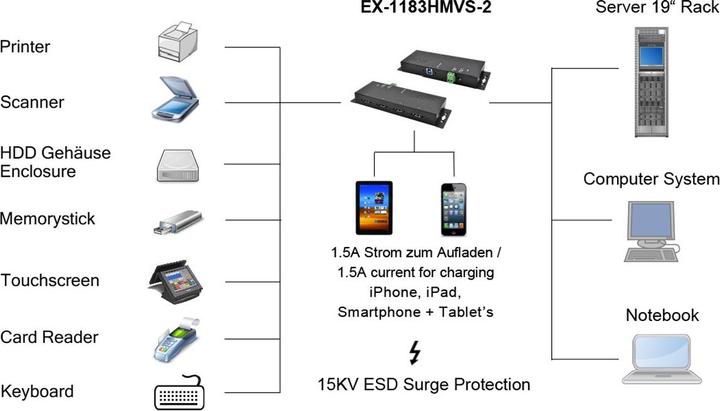

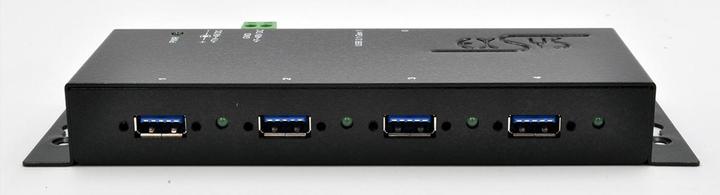

The robust industrial-grade EX-1183HMVS-2 is a USB 3.2 Gen 1 metal hub for up to four devices. The hub features four screwable USB 3.2 Gen 1 downstream ports with 15 kV ESD overvoltage protection. It supports the SuperSpeed USB 3.2 Gen 1 data transfer rate of up to 5 Gbit/s and is backward compatible with USB 1.1. The included USB 3.2 Gen 1 cable can be attached to the EX-1183HMVS-2 using thumb screws without the need for a screwdriver. The EX-1183HMVS-2 can be powered via a DC socket or a two-wire terminal block connection (+7V to +48V). The hub meets the specific requirements of industrial applications. Thanks to its special housing, the EX-1183HMVS-2 can be mounted on a wall, under a table, or in a 19” rack (optionally with EX-6099).

USB 3.2 Gen 1 metal hub with 4 ports
15 kV ESD overvoltage protection for all 4 ports
Protection of devices against voltage fluctuations
Power supply +7V to +48V DC via DC socket or terminal block
Power supply optionally also from USB bus +5V (Bus-Power)
Metal housing for wall, table, or optionally on mounting rail (EX-6099)
Automatic detection of data transfer rate for connected peripherals
Simultaneously supports 1.5A power for each output
Supports battery charging BC v1.2: SDP/CDP/DCP mode
Automatic detection of input polarity at the power terminal block
Robust metal housing
1x LED voltage indicator

Two internal jumpers for individual control of operating mode (data and power):
Bus Power Jumper:
ENA = Bus Power operation possible
DIS = Operation only possible with power supply (Self Power)
Host Control Jumper:
ON = Power supply independent of host PC
HOST = Power supply only when host PC is turned on

Scope of delivery:
EX-1183HMVS-2, power supply (12V/3A), USB 3.2 Gen 1 cable, manual.
