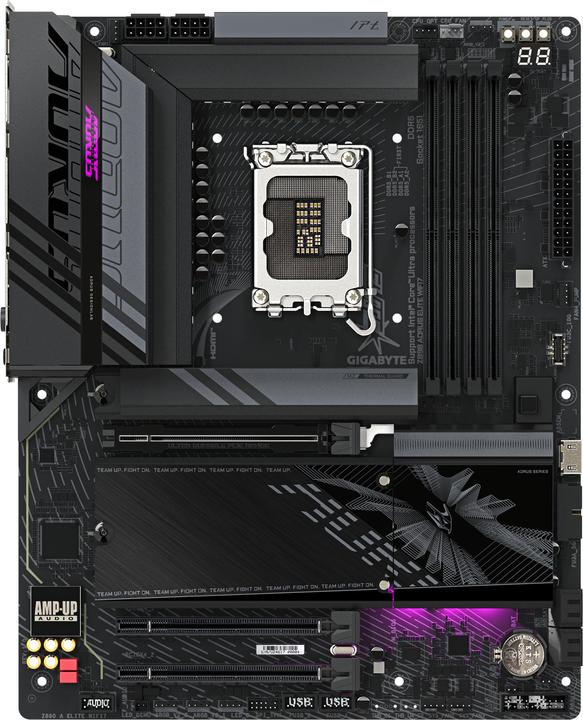

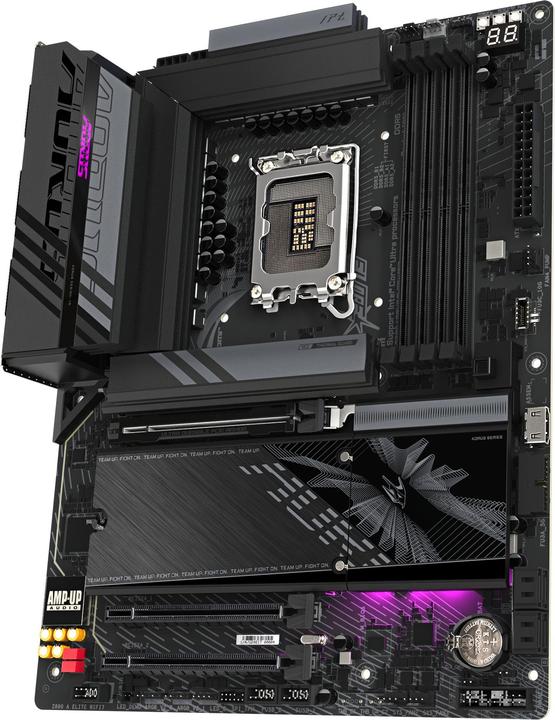

Gigabyte Z890 Aorus Elite WIFI7.
Mainboard features | Clear CMOS Button, Front panel audio connector, RGB header, Trusted Platform Module |
Wireless transmission | Bluetooth, Wi-Fi |
Number of memory modules (RAM) | 4x |
Memory type | DDR5-RAM |
Internal connections | M.2 (4x), S-ATA III (4x) |
Item number | 51892010 |
Manufacturer | Gigabyte |
Category | Motherboards |
Manufacturer No. | Z890 A ELITE WIFI7 |
Release date | 17-7-2025 |
External links |
Form factor | ATX |
Socket | LGA 1851 |
Chipset | Intel Z890 |
Mainboard features | Clear CMOS Button, Front panel audio connector, RGB header, Trusted Platform Module |
Operating system compatibility | Windows |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax, Wi-Fi 7 / 802.11be |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4x |
Max. memory (RAM) | 256 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 9200 MHz |
Supported memory speed | 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz, 7000 MHz |
Memory type | DDR5-RAM |
RAM buffer | Unbuffered |
Video connections | DisplayPort (1x), HDMI (1x), Thunderbolt 4 (1x) |
Video connection version | DisplayPort 2.1, HDMI 1.4 |
Network connections | RJ45 2.5 Gigabit Ethernet (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek 2.5GbE LAN |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC1220 |
Audio channel | 7.1 Channel |
Audio Connections | Microphone |
RAID configuration | 0, 1, 10, 5 |
Internal connections | M.2 (4x), S-ATA III (4x) |
Expansion slot | PCI Express x16 (3x) |
PCI express version (max.) | 5 |
USB ports | USB-A |
Exact USB ports | Thunderbolt (1x), USB-A 2.0 (4x), USB-A 3.2 Gen 1 (3x), USB-A 3.2 Gen 2 (2x) |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
Country of origin | China |
CO₂ emissions | 3418,76 kg |
Climate contribution | EUR 14,10 |
Scope of delivery | 2 x SATA Express cable, Norton® Internet Security (OEM version) |
Length | 244 mm |
Width | 305 mm |
Height | 35 mm |
Weight | 2230 g |
Product Safety |
Length | 34.40 cm |
Width | 29.70 cm |
Height | 8.80 cm |
Weight | 2.25 kg |
How often does a product of this brand in the «Motherboards» category have a defect within the first 24 months?
Source: GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: GalaxusHow often is a product of this brand in the «Motherboards» category returned?
Source: Galaxus
With their good price and decent features, Gigabyte’s ‘Elite’ models have already secured top spots for value for money in our AM5 comparisons on several occasions. The Z890 counterpart also scores highly with above-average performance at relatively low power consumption, thereby earning our next recommendation – despite obvious cost-cutting measures regarding USB...
