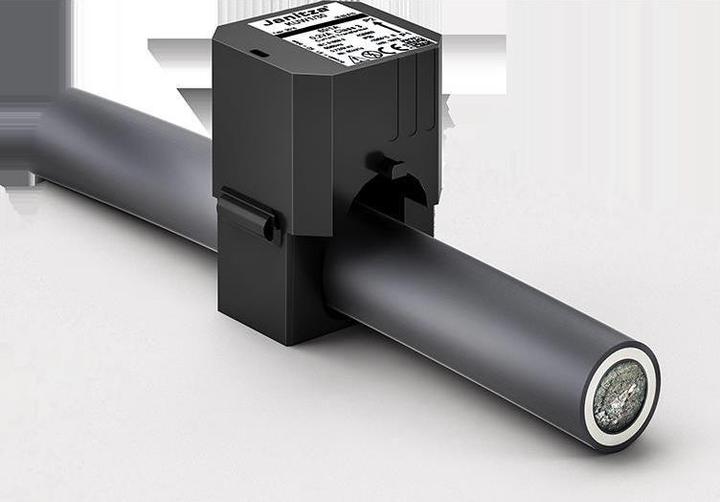

The Janitza KUW1/30-60 cable-mounted current transformer is a highly advanced transformer designed for indoor use. With a primary current of 60 A and a secondary current of 1 A, this transformer provides a reliable solution for current measurement and monitoring. It is suitable for insulated conductors and meets the requirements of the IEC61869-2 standard. The transformer is designed for an ambient temperature range of -5°C to +40°C and can operate in a relative humidity of 5% to 85% without condensation occurring. With an IP20 protection class, it is ideally suited for use in protected indoor environments. The transformer comes with a 3-meter long secondary cable for easy installation.

• Thermal rated short-time current of 60 x In for 1 second
• Thermal continuous current of 100%
• Insulation class E (120°C) for high temperature resistance
• Cable entry for conductors with a maximum diameter of 18 mm
• Performance at frequencies of 50/60 Hz.
