JUNG Series switch UP IP20 K505EU
Product details

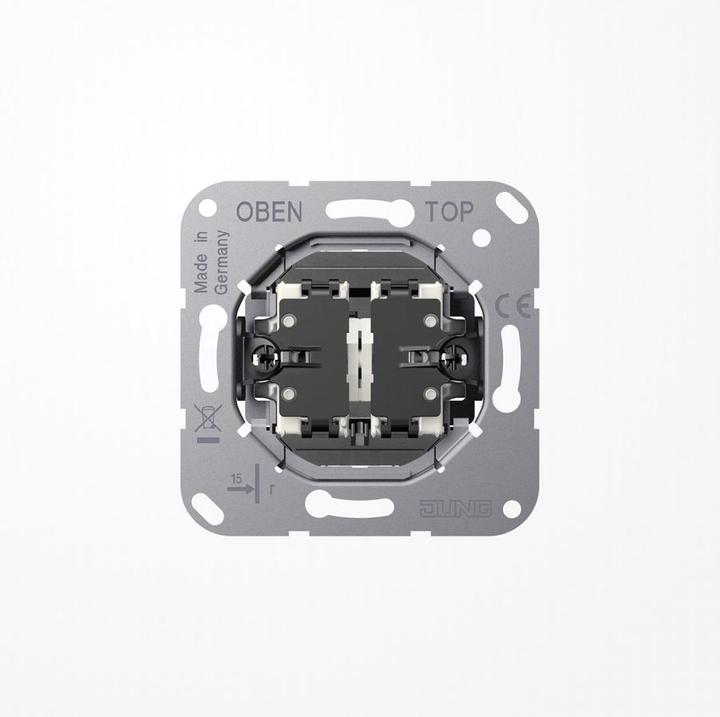

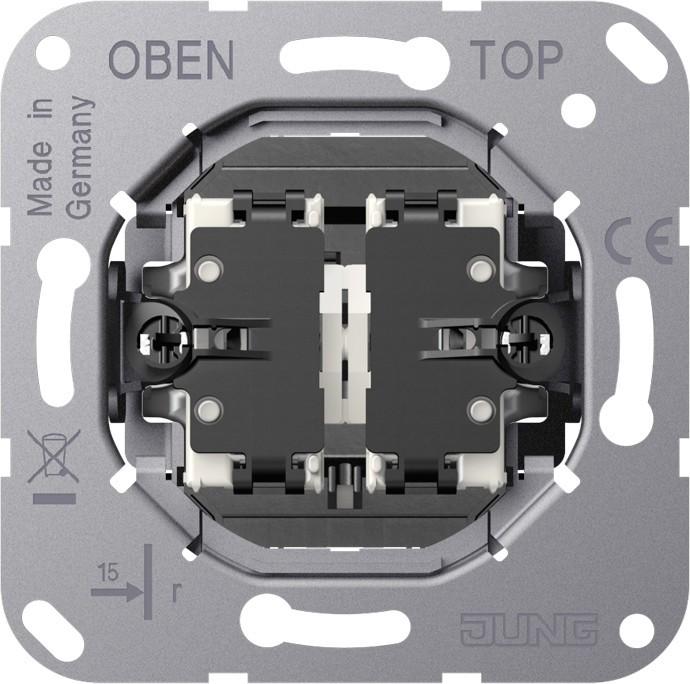

The K505EU series switch UP IP20 from JUNG is a high-quality rocker switch designed for use in various electrical installations. With a maximum load capacity of 10 AX at 250 V, this switch is ideal for residential and commercial spaces. The K505EU is characterized by its robust construction and the use of spring terminals, which allow for easy and secure connections for solid conductors up to 2.5 mm². The connection terminals comply with DIN VDE 0632 (EN 60669) standards and provide reliable performance. The switch is intended for installation in deep boxes and can be combined with various covers to meet individual requirements. The K505EU is not compatible with smart home systems but offers a simple and effective solution for the manual control of electrical devices.
- Spring terminals for solid conductors up to 2.5 mm²
- Screw fastening without mounting claws
- Complies with DIN VDE 0632 (EN 60669) standards
- Suitable for installation in deep boxes.
Switch + button type | Toggle |
Mounting type | Flush-mounted |
Width | 71 mm |
Item number | 32454065 |
Manufacturer | JUNG |
Category | Buttons + Switches |
Manufacturer no. | K505EU |
Release date | 16-1-2023 |
External links |
Switch + button type | Toggle |
Operating mode | Rocker arm |
Number of actuation levels | 2x |
Mounting type | Flush-mounted |
Mounting type | Screw fastening |
LED colour | without LED |
Nominal voltage | 250 V |
Nominal current | 10 A |
Protection type (IP code) | IP20 |
Country of origin | Germany |
CO₂ emissions | 95,84 kg |
Climate contribution | EUR 1,74 |
Smart home | Not compatible |
Smart home ecosystem | IFTTT |
Communication standard | Amazon Alexa, Apple HomeKit, Google Assistant |
Items per sales unit | 1 pcs. |
Scope of delivery | 10 AX 250 V ~, Series, Toggle, without claws |
Width | 71 mm |
Height | 71 mm |
