VARIA's fiber optic (LWL) patch cables allow for the connection of various network components while ensuring lossless data transmission. Different quality classes (OMx/OSx) facilitate the qualitative and functional distinction of a fiber optic patch cable.

High quality standards, 100% testing, and individual measurement protocols are maintained. The use of high-quality materials and modern production facilities, along with continuous quality control during the production process, ensures lossless signal transmission and consistently high quality. Each individual patch cable undergoes testing after assembly. Following successful measurement, each patch cable is accompanied by an individual measurement/testing protocol.

Technical specifications:

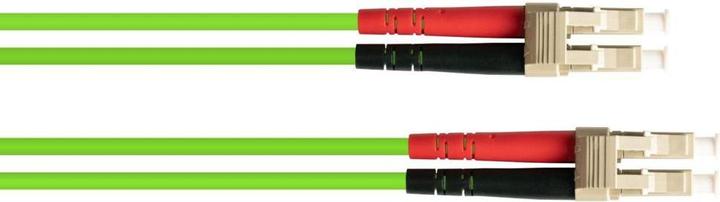

• Fiber optic (LWL) duplex patch cable
• Connector 1: LC (UPC)
• Connector 2: LC (UPC)
• Includes dust caps

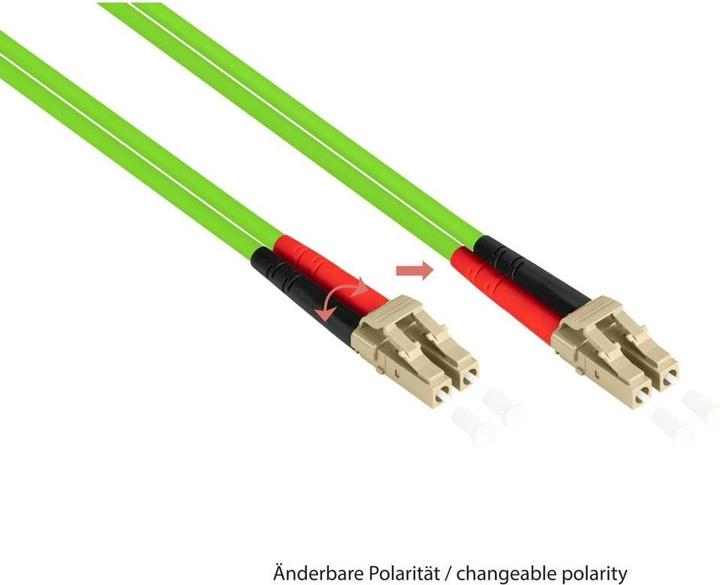

• Replaceable polarity/coding
• Attached bend protection sleeve
• Fiber quality: OM5
• Fiber type: Multimode 50/125µ
• Cable construction: Duplex
• Cable diameter: 3.0 mm
• Jacket material: Halogen-free (LSZH)
• Minimum bending radius: 7.5 mm
• Operating temperature: -40 to +85 °C
• Quality: Each cable comes with its own measurement/testing protocol

Color: Lime green (OM5)
Length: 15 m

Benefits of OM5 technology. OM5 technology offers a range of improvements over previous quality classes. Previous multimode fibers are optimized for an optical window or wavelength range of 850 nm. Outside of this window, signals are heavily attenuated, requiring Ethernet signals to be transmitted over several parallel multimode fibers. For example, two fibers are needed for 10-Gigabit Ethernet (one fiber for sending, one for receiving). In 40 or 100-Gigabit Ethernet applications, signals are transmitted over eight fibers.
