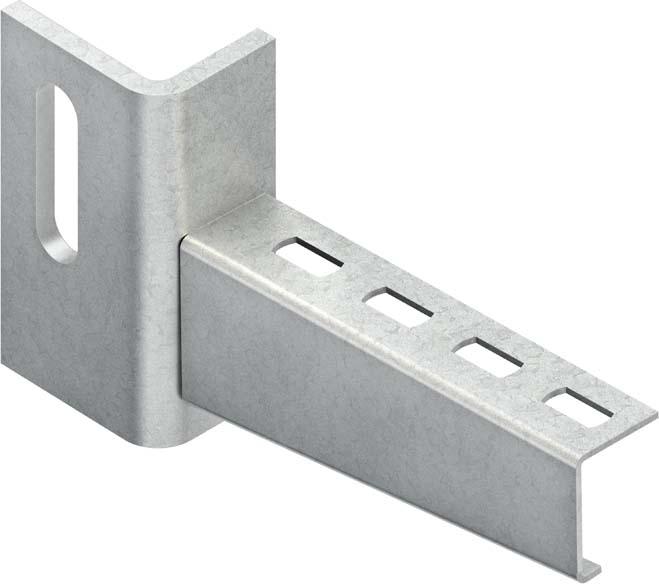

Niedax Arm KTU 300

Manufacturer: Niedax
Description: Arm
Type: KTU 300
Length: 310 mm
Width: 26 mm
Height: 75 mm
Suitable for cable tray widths: 50 - 300 mm
Design: Arm with stem
Angle: 90 °
Max. safe working load according to IEC 61537: 2500 N
Suitable for functional integrity: yes
Material: Steel
Material quality: other
Surface protection: hot-dip galvanized
Operating temperature: -20 - 120 °C

Niedax Arm KTU 300: additional details
Standard arm for hanging stem installation, including galvanized and hot-dip galvanized mounting accessories for installation on hanging stems. Required mounting accessories for cable ladders must be ordered separately. The load capacity specifications apply only with adequate anchoring to the supporting substrate or with compliant installations on hanging stems. For use in functional integrity, please observe additional regulations! The use of the KTU in functional integrity is only permitted in conjunction with KAWG 12! VDE certified!

For hanging stem: HUF 50 / HDUF 50

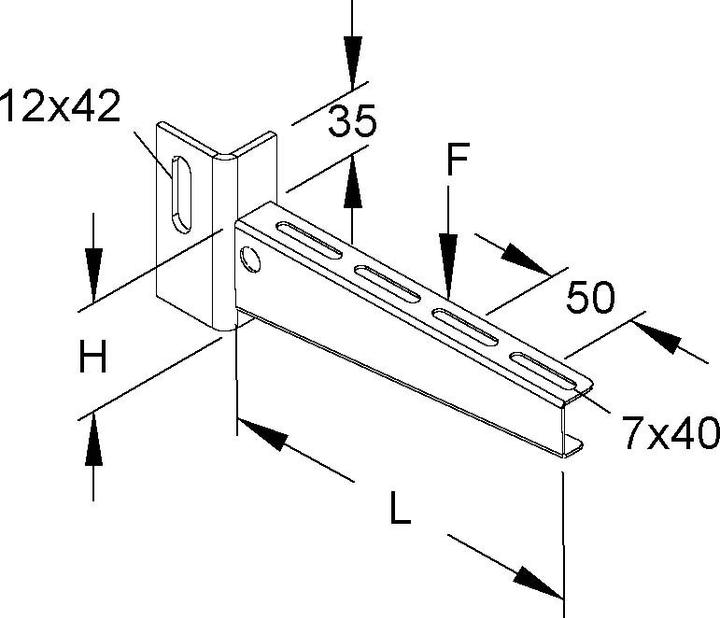

Dimensions (approx. measurements)
Support height H: 75 mm
Support length L: 310 mm
Load capacity F at L/2: 2.5 kN tested in the system
Material of arm: Steel, hot-dip galvanized according to DIN EN ISO 1461
EAN: 4013339174607.
