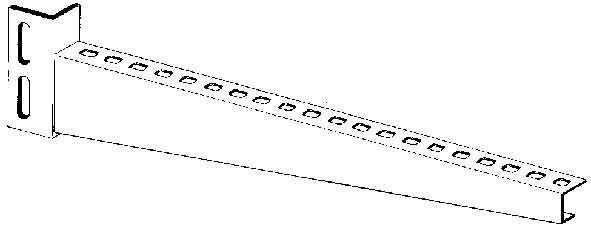

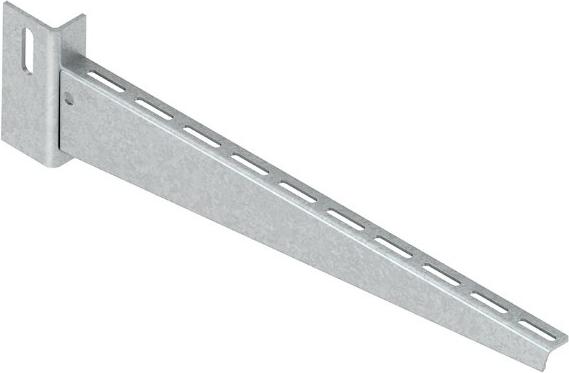

Niedax Arm KTU 600
Manufacturer: Niedax
Designation: Arm
Type: KTU 600
Length: 610 mm
Width: 24 mm
Height: 90 mm
Suitable for cable support system width: 50..600 mm
Design: Cantilever arm
Angle: 90 °
Max. safe working load according to IEC 61537: 2500 N
Suitable for functional integrity: no
Material: Steel
Material quality: other
Surface protection: hot-dip galvanized
Operating temperature: -20..120 °C

Niedax Arm KTU 600: additional details
Standard arm for hanging pole installation, including galvanized partial mounting accessories as well as hot-dip galvanized partial mounting accessories for installation on hanging poles. Required mounting accessories for cable ladders must be ordered separately. The load capacity specifications apply only with adequate anchoring to the supporting substrate or with compliant installations on hanging poles. VDE certified!

For hanging pole: HUF 50/... HDUF 50/...

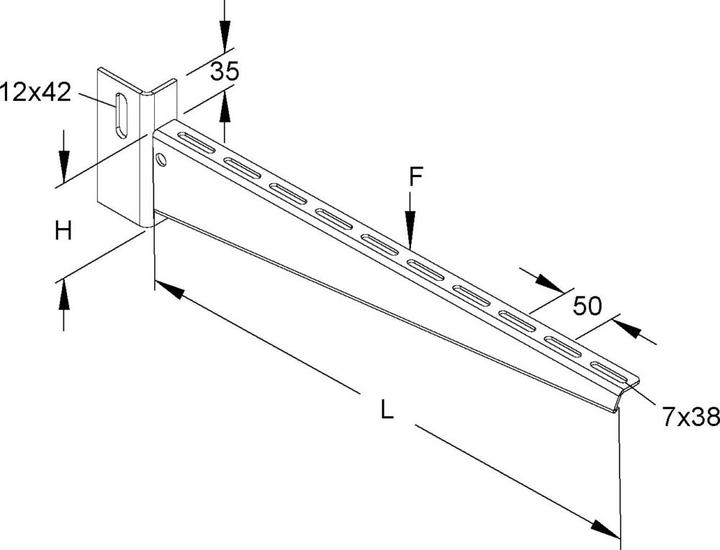

Dimensions (approx. dimensions)
Support height H: 90 mm
Support length L: 610 mm
Load capacity F at L/2: 2.5 kN tested in the system
Material of arm: Steel, hot-dip galvanized according to DIN EN ISO 1461
EAN: 4013339175208.
