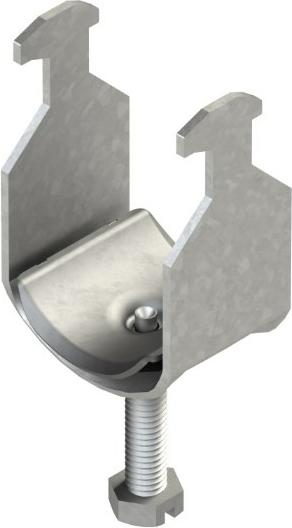

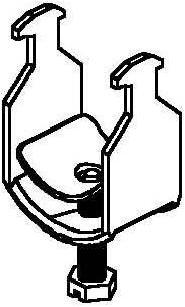

Niedax Clamp BA 26

Manufacturer: Niedax
Description: Clamp
Type: BA 26
Clamping range: 22 - 26 mm
Max. number of cables: 1
Material of the clamp: Steel
Material quality of the clamp: other
Surface protection of the clamp: hot-dip galvanized
Material of the tray: Steel
Material quality of the tray: other
Surface protection of the tray: strip galvanized
Material of the screw: Steel
Material quality of the screw: other
Surface protection of the screw: Zinc/Nickel alloy
With counter tray: no
Mounting type: Profile rail
Halogen-free: yes

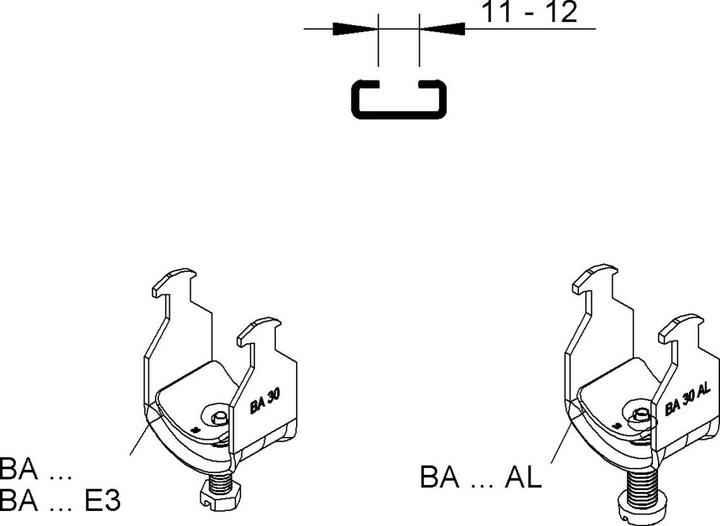

Hammer foot clamp, with strip galvanized steel pressure tray according to DIN EN 10346, hammer foot clamp hot-dip galvanized according to DIN EN ISO 1461, suitable for NIEDAX rail/anchor rails (2910-2920) with a slot width of 11-12 mm. Counter trays (GWA/GWS...) must be ordered separately.
Load capacity: 1 cable for cable diameter: 22 - 26 mm
EAN: 4013339052202.
