Peaktech P 6227 Switched-mode power supply unit

Price in EUR including VAT
Delivered Thu, 18-12
More than 10 pieces in stock
free shipping

Electric current output5

Product details

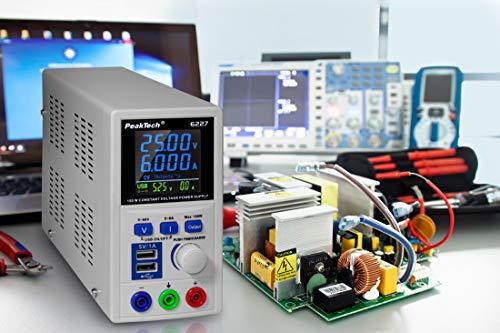

This newly developed laboratory power supply offers an adjustable 0...60V or 0...6A DC main output with a maximum continuous power of 150W. For developers, this lab power supply offers two switchable USB outputs with their own LCD display with voltage and current values. If you use a load up to 2.5A, you can regulate the output voltage up to 60V. If you want to use a higher current up to 6A, regulate the load to a maximum of 25V. Of course, all levels in between are also adjustable, such as 30V/5A, 40V/3.7A or 50V/3A. The current and voltage setting is also done when the output is switched off. By pressing the rotary knob for current or voltage, the setting resolution can be switched fine/coarse from 1mA to 100mA or 10mV to 1V. Due to the high range of functions and the simple operation with the best price/performance ratio, this laboratory power supply is ideal for the training, hobby, developer and service area.

Key specifications

Power
150 W
Electric current output
6 A
Output voltage
60 V
Documents
Technical data sheet.pdf
Item number
20338969

General information

Manufacturer
Peaktech
Category
Lab power supply
Manufacturer no.
P 6227
Release date
29-3-2022
External links

Power Supply Features

Display
LCD display
Output voltage
60 V
Electric current output
6 A
Power
150 W
Manufacturer Type
P 6227

Power supply

Power supply
Electrical connection

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery

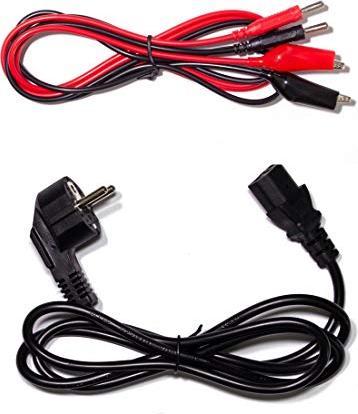

Connection terminalsManualPower cord

Product dimensions

Length
260 mm
Width
80 mm
Height
160 mm
Weight
1600 g

Package dimensions

Length
28.90 cm
Width
20.60 cm
Height
15 cm
Weight
1.88 kg
