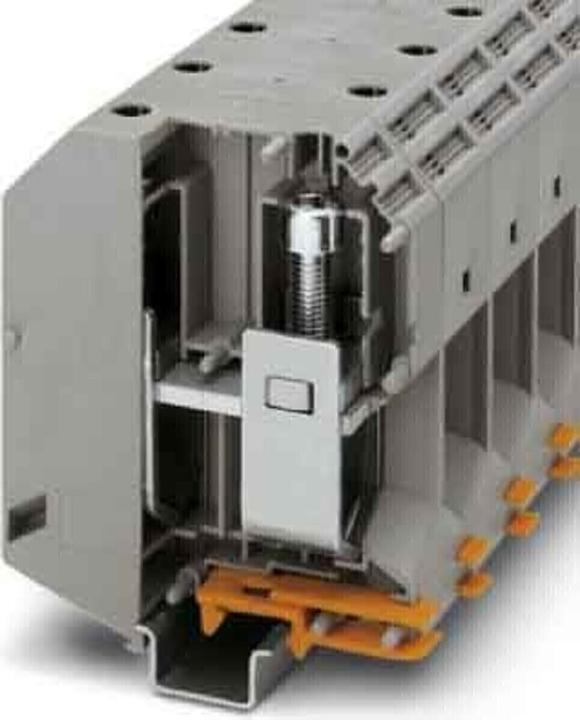

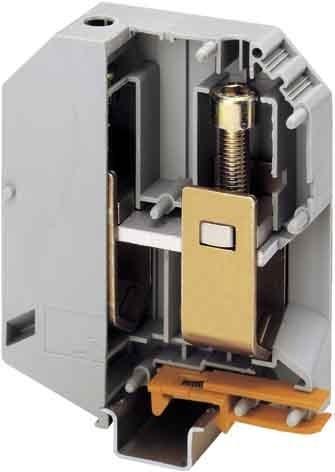

The Phoenix Contact terminal UKH 240 is a high-performance connection solution designed for demanding applications in electrical engineering. With a connection range for fine-stranded conductors from 70 to 240 mm² and a solid cross-section of up to 240 mm², this terminal offers high flexibility and reliability. It is rated for a current of up to 415 A and a voltage of 1000 V, making it ideal for industrial applications. The terminal features a screw connection that ensures a secure and stable connection. Additionally, it is suitable for mounting on DIN rails, which facilitates installation. The operating temperature ranges from -60 °C to 110 °C, making it well-suited for use in extreme environments. The terminal is explosion-proof according to the "Ex e" standard, providing additional safety in potentially hazardous environments.

• High current terminal with a rated current of 415 A and a rated voltage of 1000 V
• Connection range for fine-stranded conductors from 70 to 240 mm²
• Screw connection for secure electrical connections
• Suitable for mounting on DIN rails
• Operating temperature range from -60 °C to 110 °C.
