Roline 19-inch wall-mounted housing Pro 7 U
10.86 RU, 19 inch rack7 pieces in stock at supplier
Product details

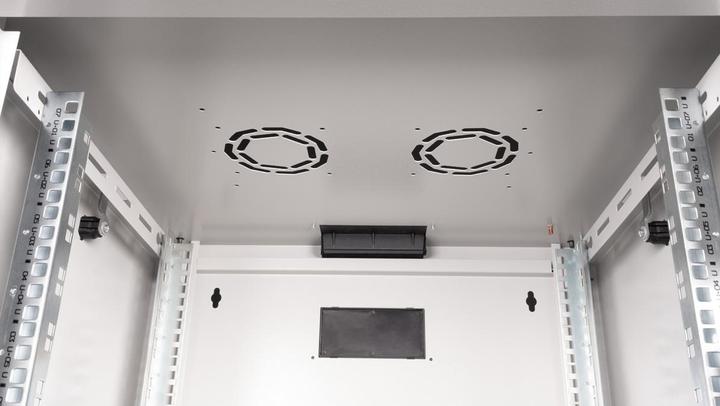

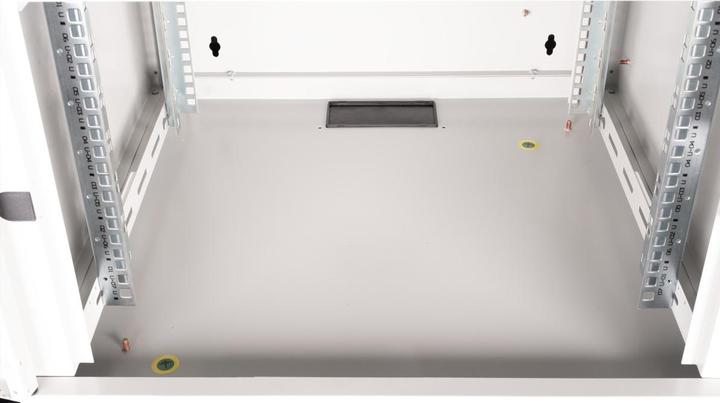

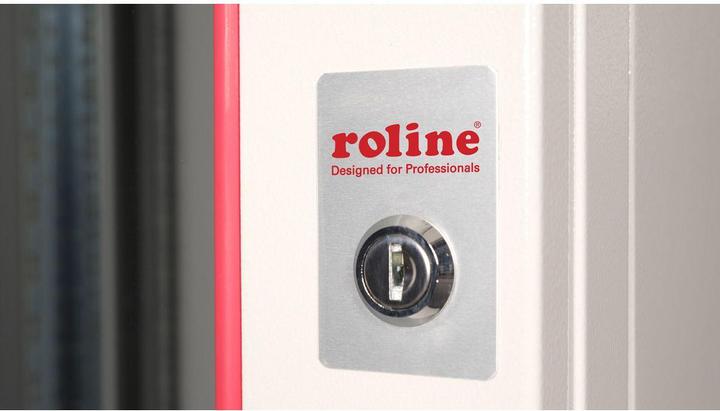

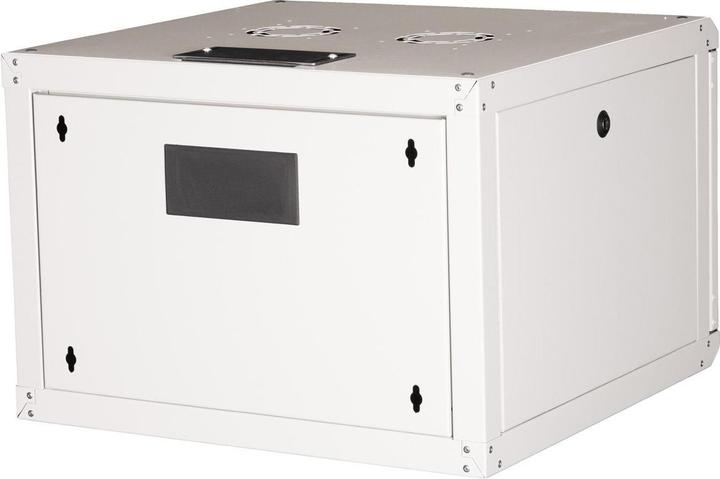

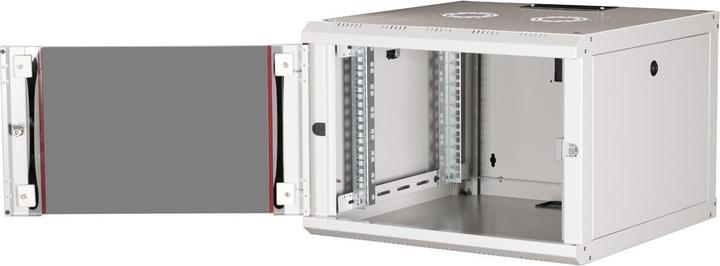

ROLINE 19-inch Wall Cabinet Pro 7 HE 600x600 WxD gray. The wall cabinets of the ROLINE Pro Series are specifically designed for flexible network cabling. Each cabinet features a sliding cable entry at the top with a rubber seal. The rear panel and the base plate are equipped with punched cable entries and plastic covers. The top chassis includes a punched area for the installation of a fan module. Inside, there are two pairs of galvanized profile rails with height units of 483 mm (19"), which are also adjustable in depth. The robust steel constructions of the cabinets are made from up to 1.5 mm thick steel sheet and are available in gray (RAL 7035) or black (RAL 9005) powder-coated finishes. The side panels and the front door are modular, lockable, and removable, enhancing accessibility. Wall mounting is done in two simple steps: first, the rear panel is screwed to the wall, and then it is connected to the cabinet. Optionally, leveling feet or wheels can be used to utilize the cabinets as freestanding units.
Type | Cabinet |
Usable installation depth | 450 mm |
Protection type (IP code) | IP20 |
Ventilation | Passive |
Server cabinet features | Door, Lockable |
Item number | 47381348 |
Manufacturer | Roline |
Category | Server cabinets |
Manufacturer no. | 26.21.0001 |
Release date | 24-7-2024 |
Colour | Grey |
Exact colour description | RAL 7035 Light grey |
Material group | Metal |
Material | Front door: Glass, Steel |
Type | Cabinet |
Rack size | 19 inch rack |
Form factor size | 10.86 RU |
Usable installation depth | 450 mm |
Max. weight | 100 kg |
Protection type (IP code) | IP20 |
Wall thickness | 1.50 mm |
Ventilation | Passive |
Server cabinet features | Door, Lockable |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 19-inch wall-mounted housing Pro 7 U, Earthing cable set, Installat... |
Height | 418 mm |
Width | 600 mm |
Length | 600 mm |
Weight | 18 kg |
