Output voltage: 5 V, 30 V
Output current: 0 → 1 A, 3 x 0 → 3 A
Number of outputs: 4
Type: Digital
Rated power: 195 W
Supply voltage: 100 → 230 V AC
Number of displays: 4
Input connection: IEC 320
Output connection: Plug-in terminal block
Minimum temperature: 0 °C
Maximum temperature: +40 °C

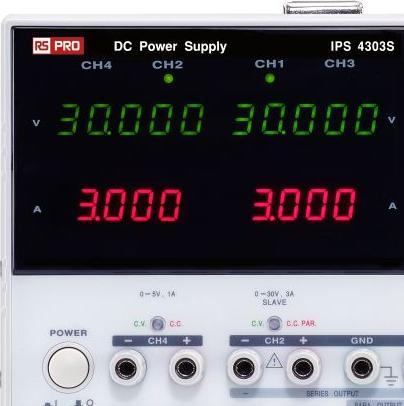

User manual, power cable. Programmable, linear RS Pro DC power supplies of the IPS series with multiple outputs. These programmable linear DC power supplies offer state-of-the-art technology at an affordable price. The available models feature 2, 3, or 4 independent output channels and support a maximum power of 180 W to 195 W. The power supplies include four sets of memory for setting voltage and current, a USB remote interface, high resolution (IPS-2303S, IPS-3303S, and IPS-4303S), and intelligent fan control for quiet operation.

Features and benefits:

• 2, 3, or 4 independent isolated outputs (depending on model choice)
• 4 LED display sets – 3 decimal places (IPS-2303S, IPS-3303S, and IPS-4303S)
• Minimum resolution 1 mV/1 mA (IPS-2303S, IPS-3303S, and IPS-4303S), 100 mV / 10 mA (IPS-3303D)
• Digital front panel control (rotary encoder switch, rubber button with display)
• User-friendly operation, coarse/fine volume control
• 4 sets of memory: Save/Retrieve
• Lockable switch
• Output ON/OFF
• Tracking in series and parallel mode
• Intelligent fan for low noise
• PC software and USB driver
• Standard USB interface
• Power source AC 100 V / 120 V / 220 V / 230 V ±10 %, 50 / 60 Hz
• Compact design (dimensions: 210 x 130 x 265 mm)
• Weight: approx. 7 kg

Applications: Laboratory (R&D, industry, education), LED industry.
