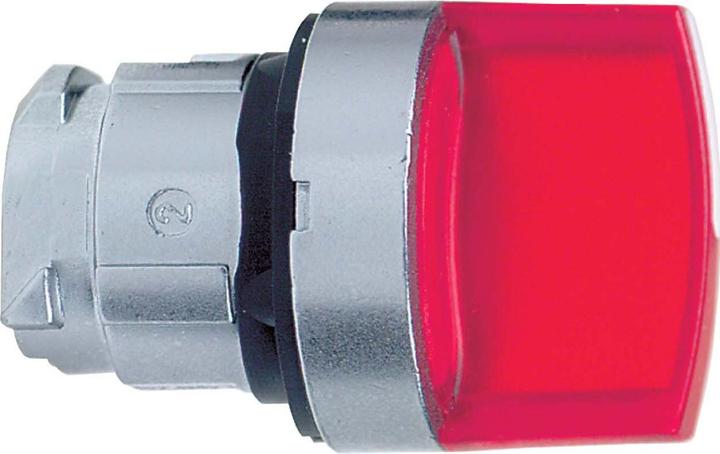

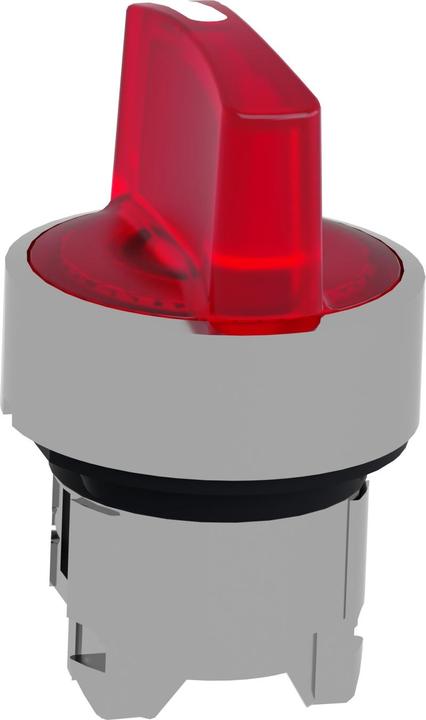

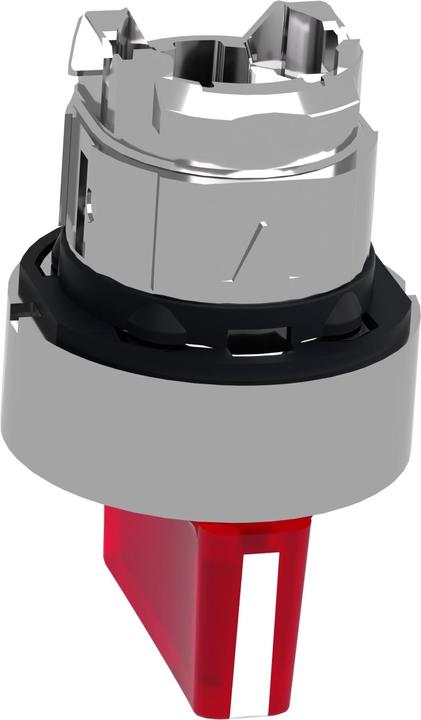

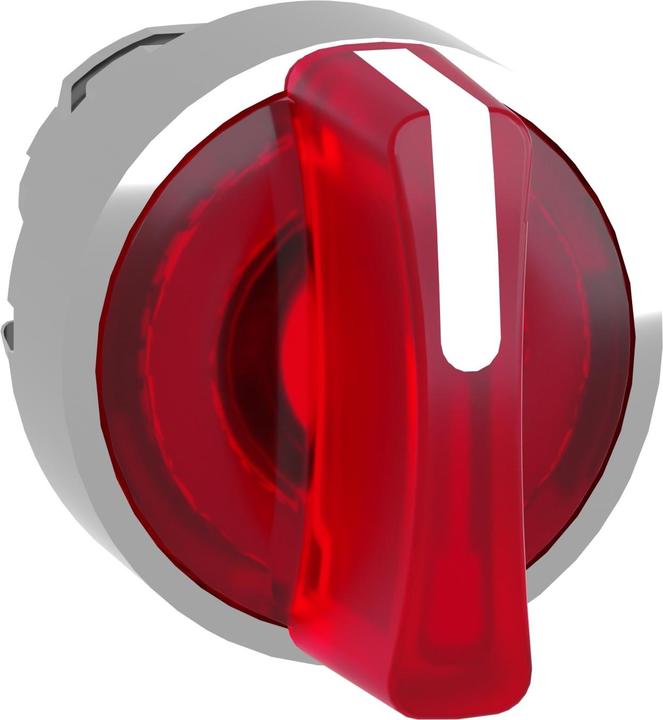

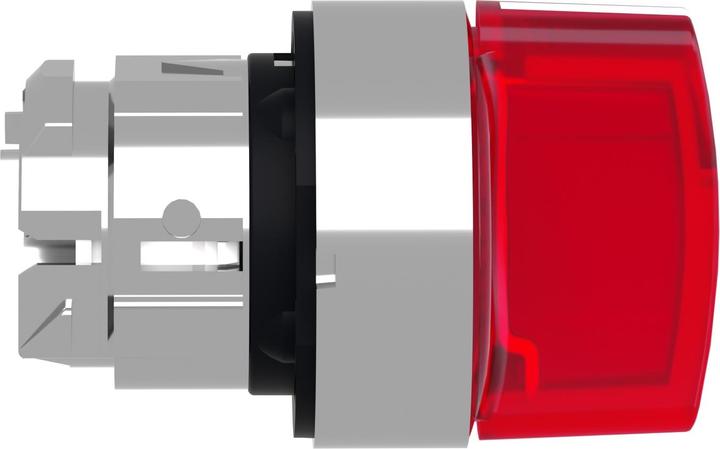

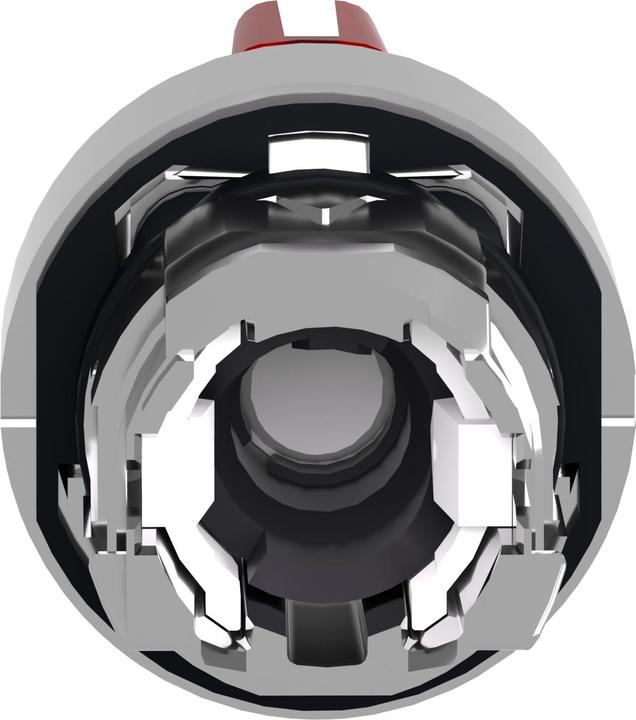

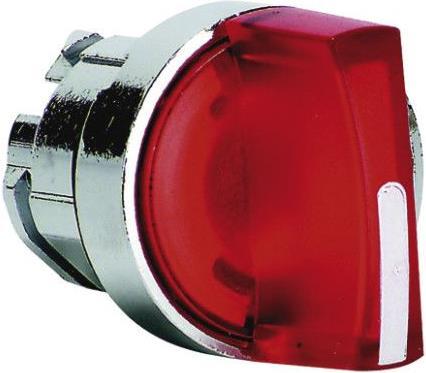

Schneider Electric Selector Switch, 3-Position, Push, RT ZB4BK1543

Manufacturer: Schneider Electric
Description: Selector Switch, 3-Position, Push
Type: ZB4BK1543
Number of Switching Positions: 3
Actuator Type: Short Rotary Handle
Suitable for Lighting: Yes
Color of Actuator: Red
Color of Indicator Lens: Red
Lens Shape: Round
Hole Diameter: 22.5 mm
Latching Switching Function: No
Pushbutton: Yes
With Front Ring: Yes
Material of Front Ring: Metal
Color of Front Ring: Chrome
Protection Class (IP), Front Side: IP66
Protection Class (NEMA): Other

The Harmony XB4/ZB4 series made of metal offers a wide range of 22 mm complete devices such as push buttons, indicator lights, and selector switches, including emergency stop switches. Additionally, due to the modular design of the devices, all components can also be purchased as individual elements and optionally for 30 mm mounting dimensions. Thanks to their quality, flexibility, and extreme robustness (protection classes up to IP69K), these devices are ideal for most applications in industry and buildings. This illuminated push button in red is compatible with a universal LED with various supply voltages. This front element features 3 positions. The installation of this product is done in a 22 mm hole. Due to the variety of existing product standards and certifications, it is suitable for international use. Thanks to the Green Premium environmental label, you can obtain detailed information on material contents, environmental impacts, and circular economy, which support your sustainability goals.
