Load current min.: 0.1 A
Range: Sirius Classic
Mounting type: DIN rails
Load voltage min.: 48 V ac
Load voltage max.: 460 V ac
Control voltage min.: 15 V dc
Control voltage max.: 24 V dc
Switching type: Instant
Contact arrangement: 1 pole normally open
Connection type: Screw
Output circuit: Thyristor
Switch-on time max.: 1 (+1/2 cycle) ms
Dimensions: 22.5 x 94 x 100 mm
Leakage current in "off" state: 10 mA

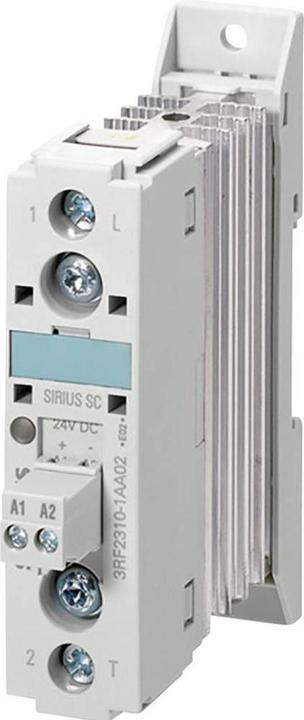

UL 508 / CSA, CE, CCC, C-Tick. DIN EN 60947-4-3. 3RF23 - solid state contactor, 1-phase. Universally applicable zero-switching version for resistive loads, momentary-switching version for inductive loads, LED indication, double insulation for use in SELV / PELV circuits, powerful thyristors with high blocking voltage, integrated heat sink, expandable in functionality through function modules, DIN rail mounting, except types 70A and 88A, plug-in control connection, screw terminals for quick and easy connection, protection class IP20, insulated mounting base. Dimensions (WxHxD) including heat sink: Type 10.5A: 22.5 x 100 x 73 mm, Type 20A: 22.5 x 100 x 119 mm, Type 30A: 45 x 100 x 134.5 mm, Type 40A/50A: 67 x 100 x 134.5 mm, Type 70A: 135 x 100 x 141 mm, Type 88A: 180 x 200 x 150.5 mm.
