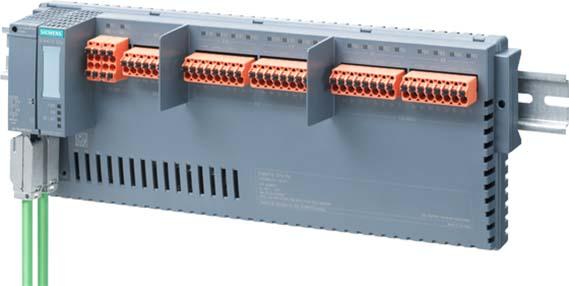

The SIMATIC Compact Field Unit PA Edition from Siemens is a highly advanced automation solution specifically designed for use in demanding industrial environments. With 16 I/O channels, including 8 PROFIBUS PA channels and 8 freely configurable digital inputs/outputs, this device offers a flexible and powerful interface for process automation. The unit is suitable for installation in Ex Zone 2 and ensures reliable channel diagnostics. Thanks to the PROFINET interface and support for media redundancy (MRP) as well as system redundancy (S2), high availability and security of data communication are guaranteed. The SIMATIC CFU is designed for a temperature range of -40 to +70 °C and features a conformal coating that provides additional protection. Installation is simple on a 35 mm DIN rail, facilitating integration into existing systems.

• 16 I/O channels: 8x PROFIBUS PA and 8x freely configurable DIQ
• Suitable for Ex Zone 2 with channel diagnostics
• PROFINET interface with support for media and system redundancy
• Operating temperature range of -40 to +70 °C
• Easy mounting on 35 mm DIN rail.
