Compact 92-mm Slim Format

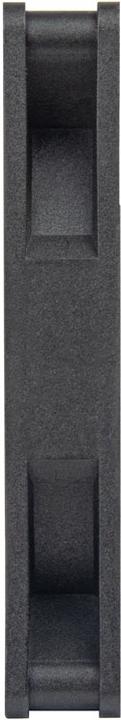

Only 15.2 millimeters high
Max. 2,500 RPM
Max. 77.7 m³/h airflow volume
Max. 2.29 mmH2O static pressure
Low noise level of only max. 32 dB(A)

Features of the SilverStone Air Slimmer SST-AS90B Slim Fan in Detail

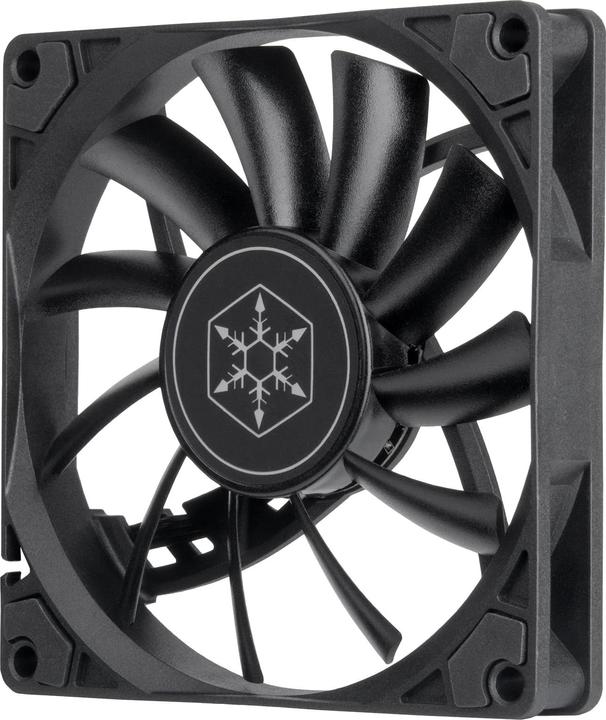

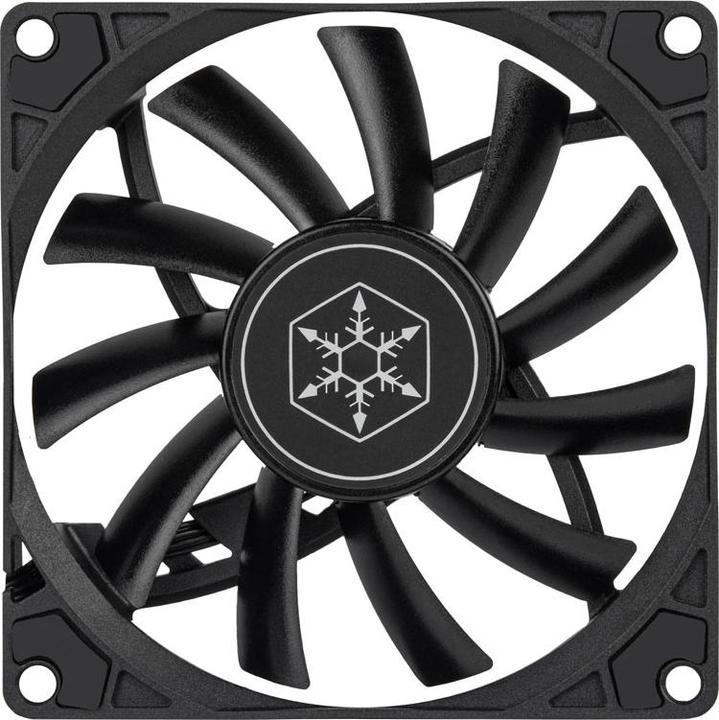

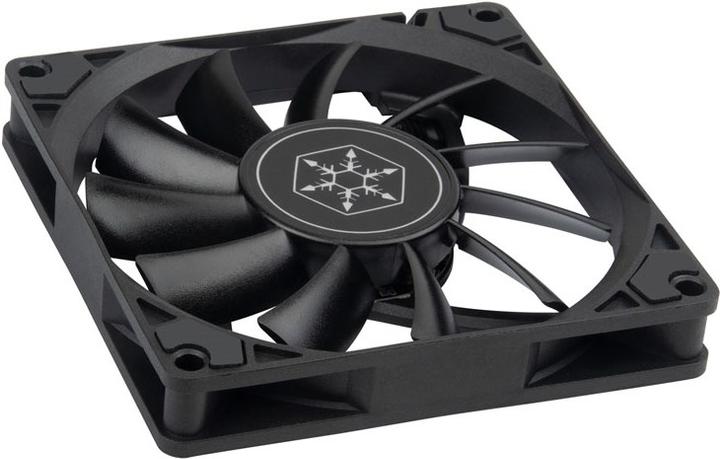

With the Air Slimmer SST-AS90B, manufacturer Silverstone presents a very flat slim fan in the 92-mm format. Despite its low height of only 15.2 millimeters, the Air Slimmer SST-AS90B also offers good performance values and quiet operation. The slim fan is perfect for particularly small and flat cases with limited space.

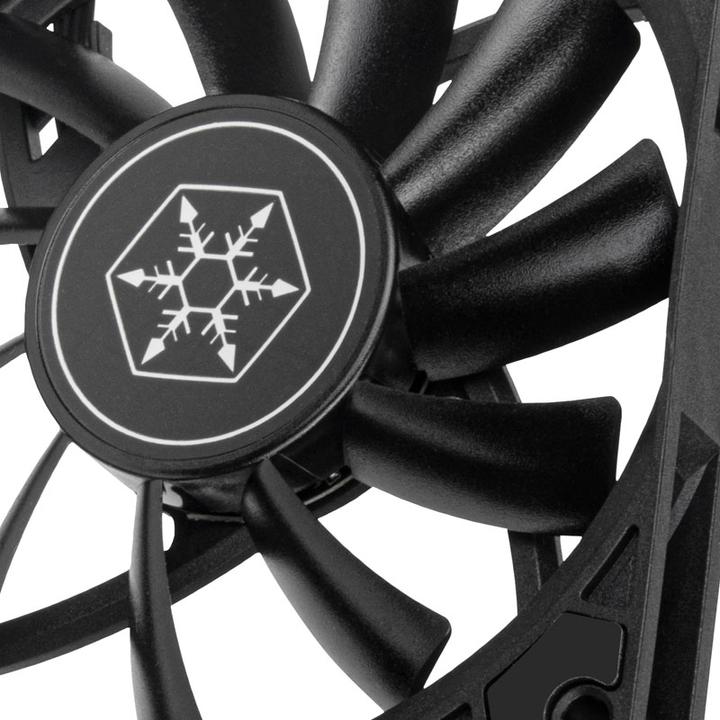

The performance values of the Air Slimmer SST-AS90B are impressive despite its low height. The optimized design of the fan blades generates an airflow volume of 77.7 m³/h at a maximum of 2,500 RPM, along with a static pressure of 2.29 mmH2O. The noise level remains quiet at 32 dB(A). The Air Slimmer SST-AS90B connects via a 4-pin connector, which also allows for PWM control.

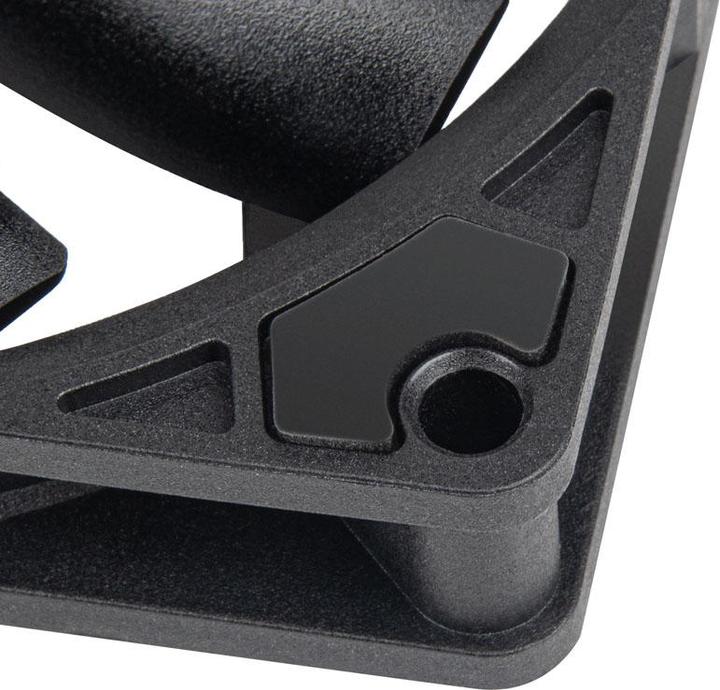

Included in the package are mounting screws and vibration dampers.

Technical Details:
Dimensions: 92 x 92 x 15.2 mm (W x H x D)
Weight: 64 g
Material: Plastic
Color: Black
Bearing: Hydrodynamic bearing
Lifespan: N/A
Speed: 500 to 2,500 RPM
Airflow Volume: 9.14 - 77.7 m³/h
Static Pressure: 0.11 - 2.29 mmH2O
Noise Level: 11.3 - 32 dB(A)
Voltage: 6 - 12 V
Starting Voltage: 6 V
Current: max. 0.32 A
Power Consumption: max. 3.84 W
Connections: 4-Pin PWM.
