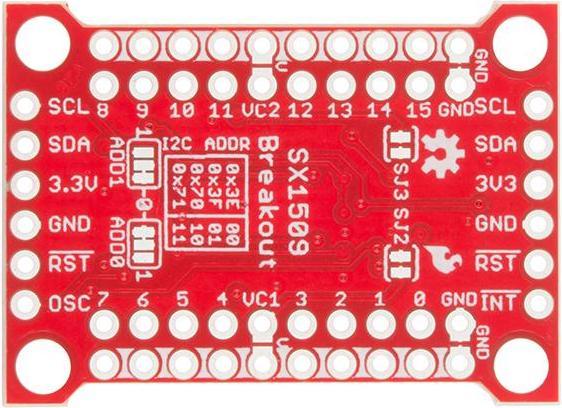

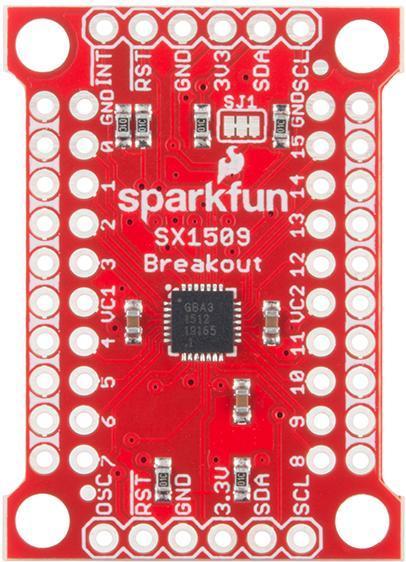

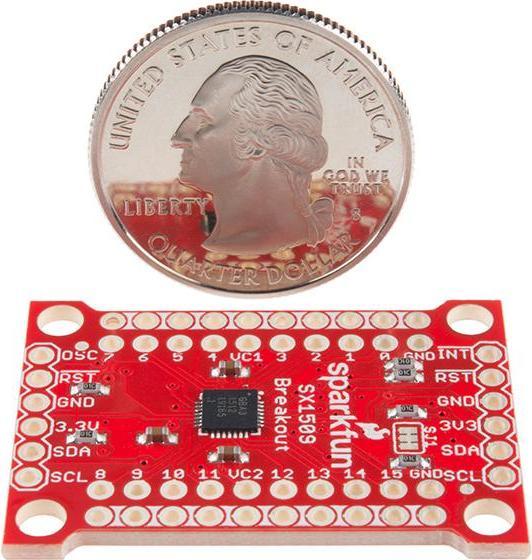

The SparkFun I/O Expander Breakout with 16 outputs, SX1509, is a versatile electronics module that enables developers and hobbyists to have extended control over digital input and output signals. With its I2C interface, this module can control up to 16 fully configurable GPIO pins using just two wires. The SX1509 not only provides basic pin control but also the capability to generate PWM signals, allowing for precise control of LED dimming functions. Additionally, the module can be programmed for various applications, including blinking and breathing effects. The integrated keyboard engine allows for the connection of up to 64 keys in an 8x8 matrix, enhancing interactivity. With configurable jumpers and flexible power supply options, the breakout board is ideal for prototypes and projects that require expanded I/O capacity.

• 16-channel GPIO expander with I2C interface
• Generates PWM signals for LED dimming
• Integrated keyboard engine for 8x8 matrix connection
• Operating voltage from 1.2 V to 3.6 V, 5.5 V tolerant
• Configurable jumpers for flexible applications.
