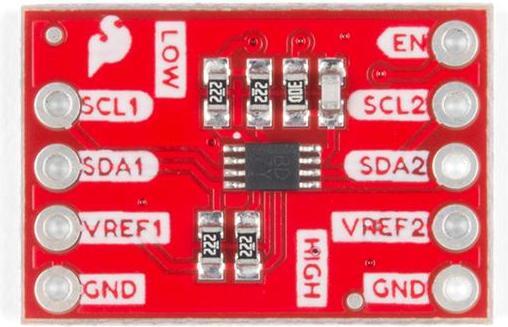

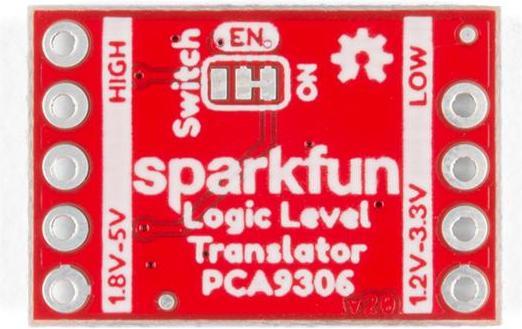

SparkFun Pegelübersetzer Breakout - PCA9306

Price in EUR including VAT
Ratings
BrandMore from SparkFun
Delivered between Sat, 2-5 and Wed, 13-5
5 items ordered
Free shipping starting at 30,–

Product details

There are some boards that every engineer and maker should have on their desk, and this PCA9306 dual bidirectional voltage level translator breakout is one of them! Since different components sometimes use different voltage levels to communicate, voltage level translators can be key to ensuring that various components work together.

The PCA9306 is a dual bidirectional I2C bus and SMBus voltage level translator that operates on the low side from 1.2V to 3.3V and on the high side from 1.8V to 5.5V. Simply apply your low and high side reference voltages to VREF1 and VREF2 respectively, connect your I/O, and drive the enable pin high to enable bidirectional voltage translation without the need for a direction pin!

We have updated this classic board to use a new footprint, added a second ground pin, and broken out the enable pin.

Key specifications

Compatible hardware
Various
Sensors
Voltage sensor

General information

Item number
43136086
Manufacturer
SparkFun
Category
Electronics modules
Manufacturer no.
BOB-15439
Release date
23-2-2024

Compatibility

Compatible hardware
Various

Electronic module properties

Sensors
Voltage sensor

Voluntary climate contribution

CO₂ emissions
0,82 kg
Climate contribution
EUR 0,12

14-day cancellation right
30-day right of return
24 Months statutory warranty
