USB Standard: USB 2.0
Number of USB Ports: 7
USB Connection Type: USB A
Dimensions: 133 x 61.5 x 36.3 mm
Depth: 61.5 mm
Height: 36.3 mm
Width: 133 mm

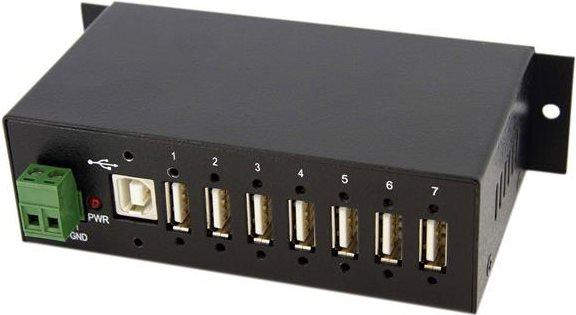

Robust, industrial-grade, mountable USB hub with 7 ports. This rugged USB 2.0 hub is designed for easy access to its 7 socket USB 2.0 connections and can be wall-mounted or installed on a DIN rail. It provides USB 2.0 connectivity for a workspace, server room, or industrial environment. Supporting Hi-Speed USB 2.0 data transfer rates of up to 480 Mbit/s, this 7-port USB hub is backward compatible with USB 1.1 specifications and can be powered via the host USB bus or self-powered with a 3-wire terminal block connector (7–24 V).

The hub features 7 USB 2.0 ports, power supply via USB bus or external terminal block with support for 7 to 24 V DC input. It has a compact and lightweight design with surface or DIN rail mounting options. The housing is entirely metal and meets industrial quality standards. It is compliant with High-Speed USB 2.0 with transfer rates up to 480 Mbit/s and offers 350 W surge protection at each USB port. The hub is Plug-and-Play and Hot-Swap compatible and includes a 2-meter USB cable with screw lock.

Applications: For adding additional easily accessible USB ports for rack-mounted devices and for installing a USB hub that can be securely mounted on a surface or in a device carrier DIN rail.
