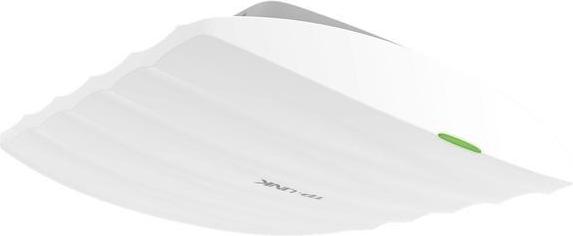

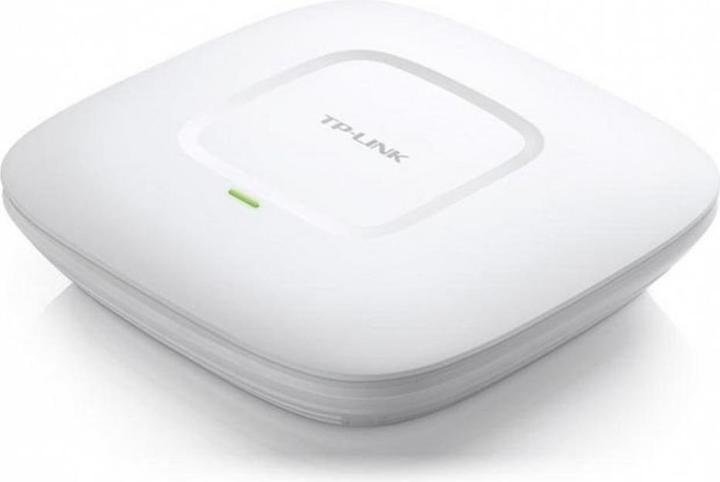

Product details

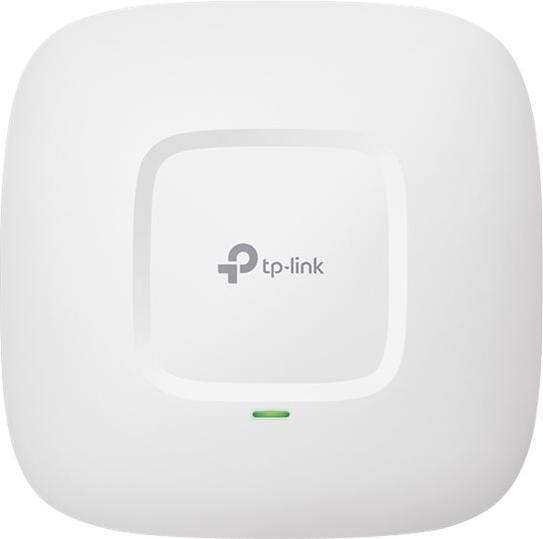

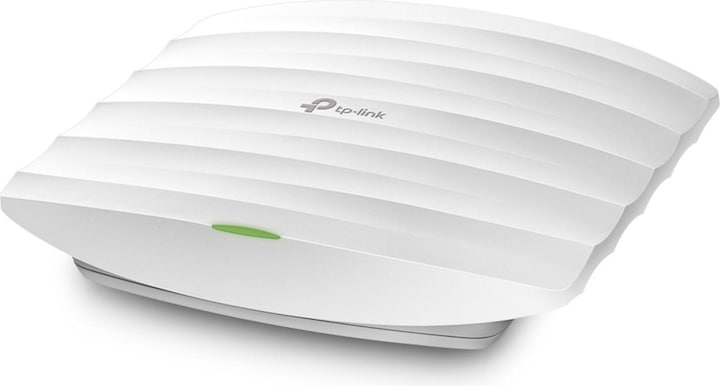

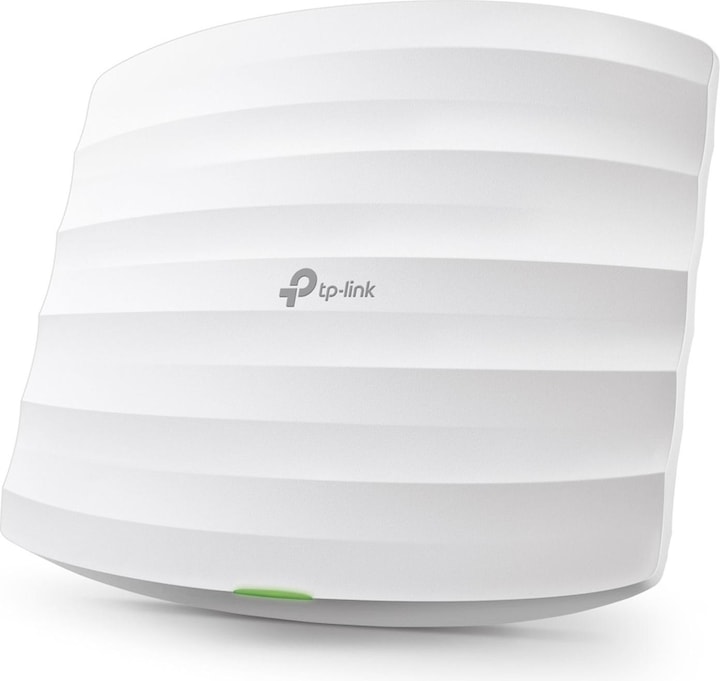

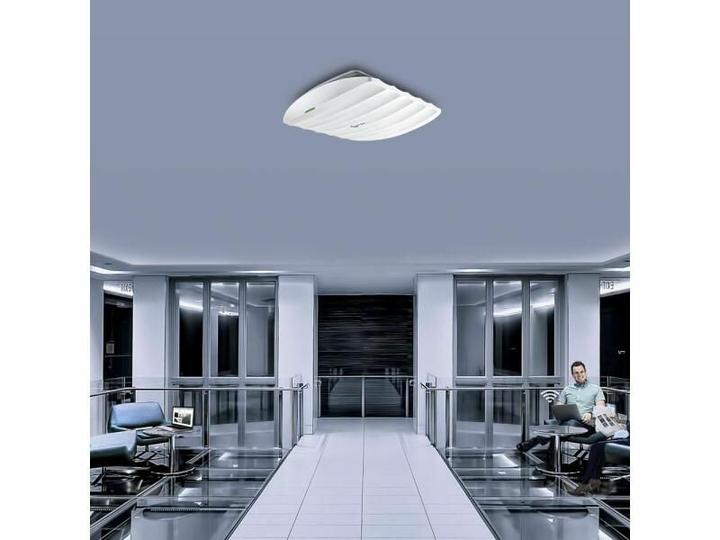

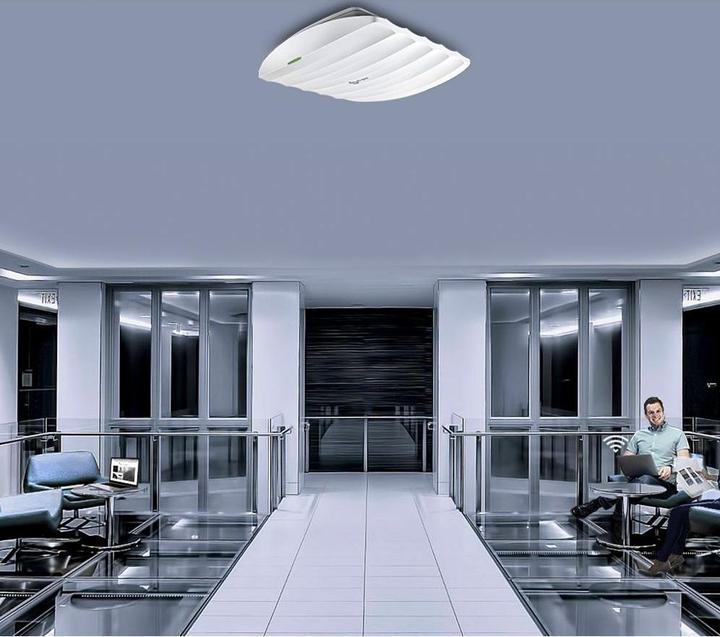

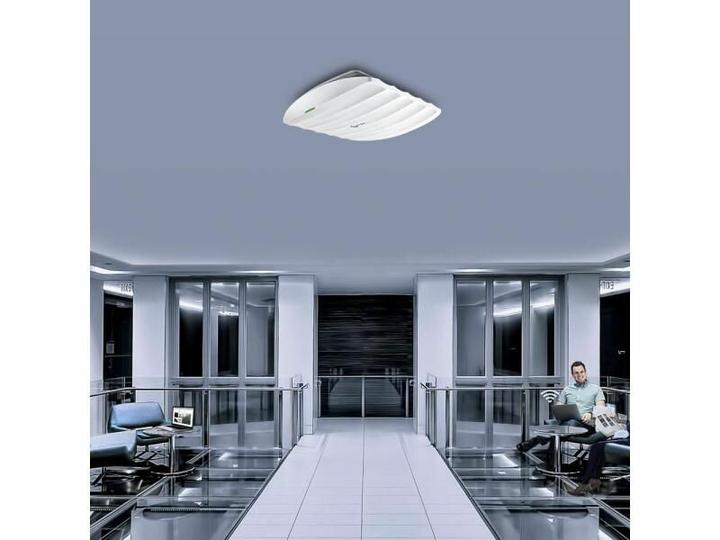

The TP-Link EAP225 is equipped with a simultaneous dual band that allows you to achieve data transfer rates of up to 300 Mbps on the 2.4 and 867 Mbps on the 5 GHz band. It is suitable for simple mounting
on the wall or ceiling. The configuration and administration of the WLAN network are facilitated by a central EAP controller software.
Power over Ethernet

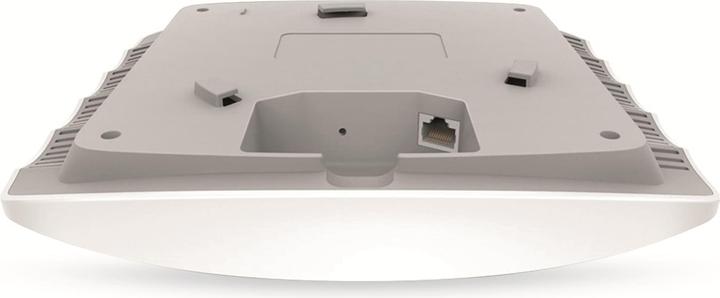

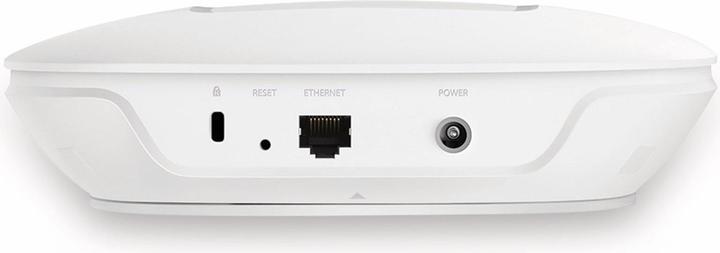

The EAP225 access point has an RJ45 Gigabit Ethernet port with PoE support according to IEEE802.3af, so you can install it easily and anywhere without having to connect a power supply. The power consumption of the device is 10.15 W. Additional functions such as load balancing, tape steering and QoS ensure smooth data transfer.
Comprehensive control over your network
With the EAP225, you get free software for managing hundreds of EAPs. The EAP225 allows Multi-SSID for different user groups and lets you set data limits per SSID. A captive portal also ensures secure access control and simple guest authentication.
Power over Ethernet
The EAP225 access point has an RJ45 Gigabit Ethernet port with PoE support according to IEEE802.3af, so you can install it easily and anywhere without having to connect a power supply. The power consumption of the device is 10.15 W. Additional functions such as load balancing, tape steering and QoS ensure smooth data transfer.
Comprehensive control over your network
With the EAP225, you get free software for managing hundreds of EAPs. The EAP225 allows Multi-SSID for different user groups and lets you set data limits per SSID. A captive portal also ensures secure access control and simple guest authentication.
| Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac |
| Wi-Fi frequency band | Dual band |
| PoE Standard | 802.3af (PoE) |
| Operating modes | Access point |
| Area of application | Business |
| Number of RJ45/LAN ports | 1 |
| Max. port speed | 1000 Mbit/s |
| Item number | 6088343 |
| Manufacturer | |
| Category | |
| Manufacturer no. | EAP225 |
| Release date | 23.1.2017 |
| Sales rank in Category Access points | |
| External links | |
| Maximum order quantity | 178 |
| Operating modes | Access point |
| Max. number of clients | 200 x |
| Number of antennas | 4 x |
| Antenna gain | 3 dB |
| Long range coverage | 0.12 km |
| Number of RJ45/LAN ports | 1 |
| Max. port speed | 1000 Mbit/s |
| Access Point Functions | Guest access |
| Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac |
| 5 GHz transfer rate | 867 Mbit/s |
| 2.4 GHz transfer rate | 300 Mbit/s |
| Wi-Fi frequency band | Dual band |
| Wi-Fi encryption | WEP, WPA-EAP, WPA-PSK, WPA2-EAP, WPA2-PSK |
| Area of application | Business |
| Installation place | Ceiling, Wall |
| Power supply | PoE |
| PoE Standard | 802.3af (PoE) |
| Power consumption | 10.50 W |

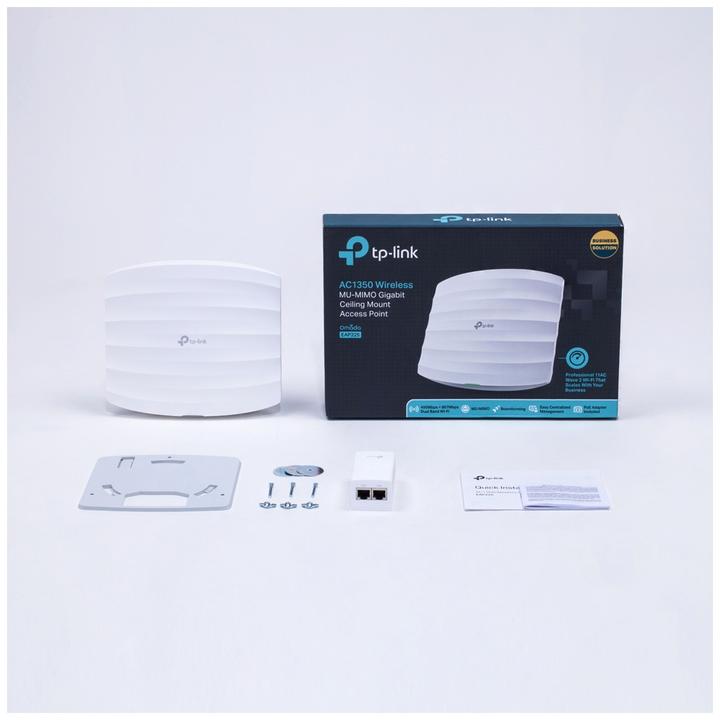

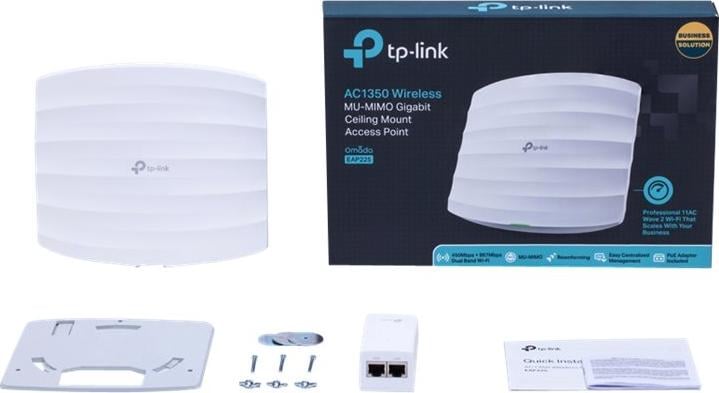

| Scope of delivery | Wall/ceiling mount |
| Length | 16 cm |
| Width | 16 cm |
| Height | 3.15 cm |
| Weight | 170 g |
| Length | 34.20 cm |
| Width | 6.60 cm |
| Height | 22.90 cm |
| Weight | 944 g |
