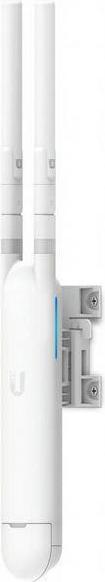

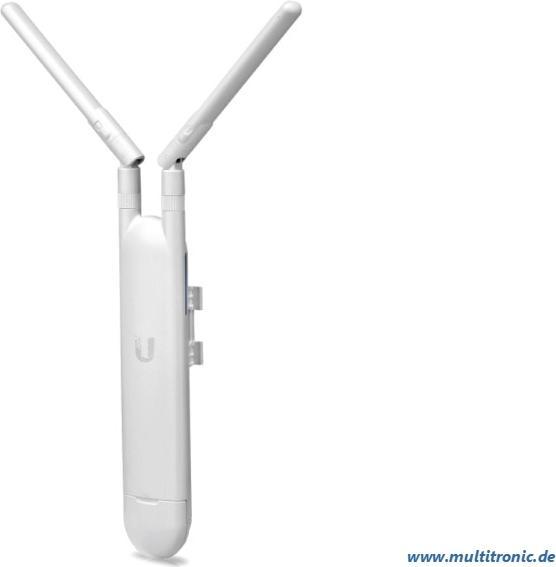

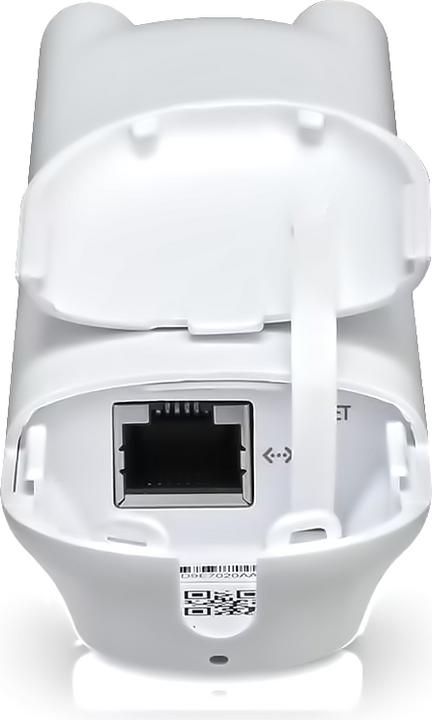

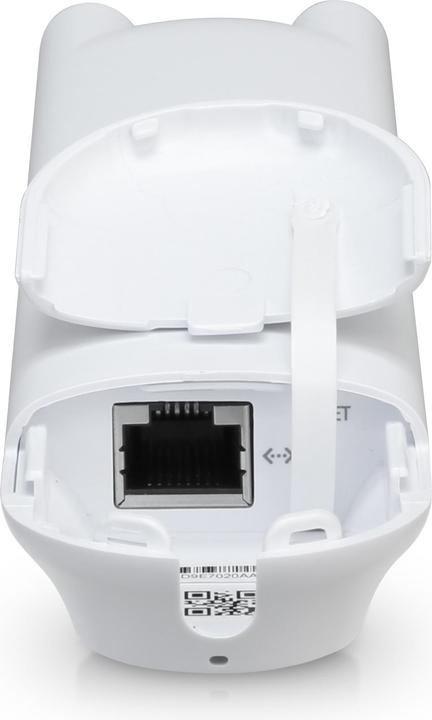

Ubiquiti UniFi AP-AC-M MESH

867 Mbit/s
Price in EUR including VAT, free shipping
was 105,– EUR

Number

Product details

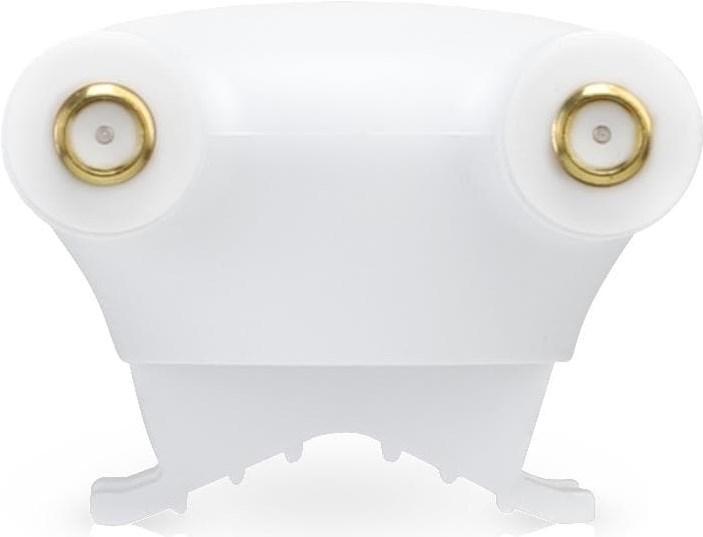

Compact and weatherproof housing. Transmission rates of up to 300 Mbps at 2.4 GHz and 867 Mbps at 5 GHz. Interchangeable antennas and PoE support.

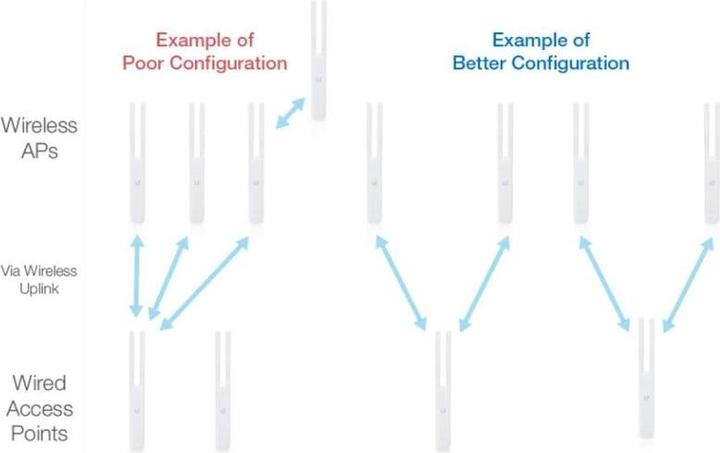

Unlimited scalable mesh networks. Incl. passive PoE injector and CH power cable. The UAP-AC-M is a compact access point for scalable mesh networks. It offers you simultaneous dual-band with 2x2 MIMO technology. The weatherproof housing makes it ideal for both indoor and outdoor use. With several of these access points, large areas can be supplied with minimal infrastructure and without much IT effort. Ubiquiti's Mesh Series allows you to easily set up a professional mesh network. The great advantage of this technology is the wireless networking of the access points with each other. This meshed structure enables a large area expansion of radio networks. You benefit from high coverage and improved redundancy. In addition, the data rate increases if the distance between the Mesh Access Points is reduced.

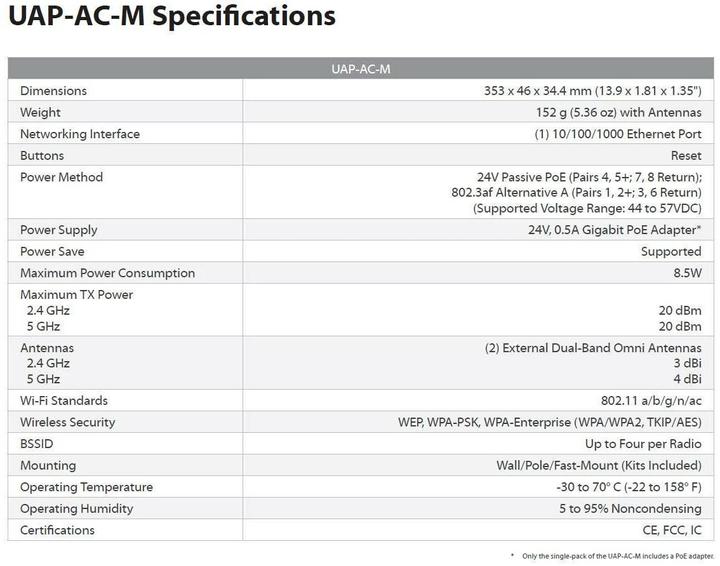

Key specifications

Wi-Fi standard
Wi-Fi 2 / 802.11a
Wi-Fi 3 / 802.11g
Wi-Fi 4 / 802.11n
Wi-Fi 5 / 802.11ac
Wi-Fi frequency band
Dual band
PoE Standard
802.3af (PoE)
Operating modes
Access point
Area of application
Business
Outdoor

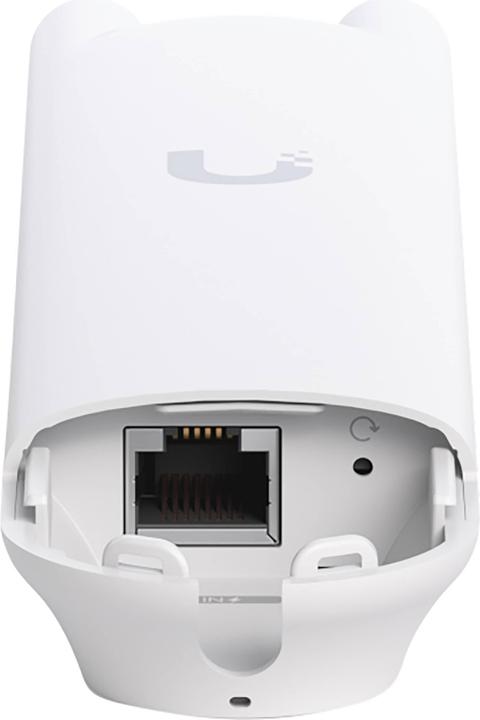

Number of RJ45/LAN ports
1
Max. port speed
1000 Mbit/s
Documents
Item number
6040161

General information

Manufacturer
Category
Access points
Manufacturer no.
UAP-AC-M
Release date
12/14/2016
Sales rank in Category Access points
External links

Access point properties

Operating modes
Access point
Max. number of clients
250 x
Number of antennas
2 x
Antenna gain
4 dB
Long range coverage
0.18 km
Number of RJ45/LAN ports
1
Max. port speed
1000 Mbit/s
Access Point Functions
Mesh capable

Wi-Fi standard

Wi-Fi standard
Wi-Fi 2 / 802.11a
Wi-Fi 3 / 802.11g
Wi-Fi 4 / 802.11n
Wi-Fi 5 / 802.11ac
5 GHz transfer rate
867 Mbit/s
2.4 GHz transfer rate
300 Mbit/s
Wi-Fi frequency band
Dual band
Wi-Fi encryption
WEP
WPA-EAP
WPA-PSK

Application range

Area of application
Business
Outdoor

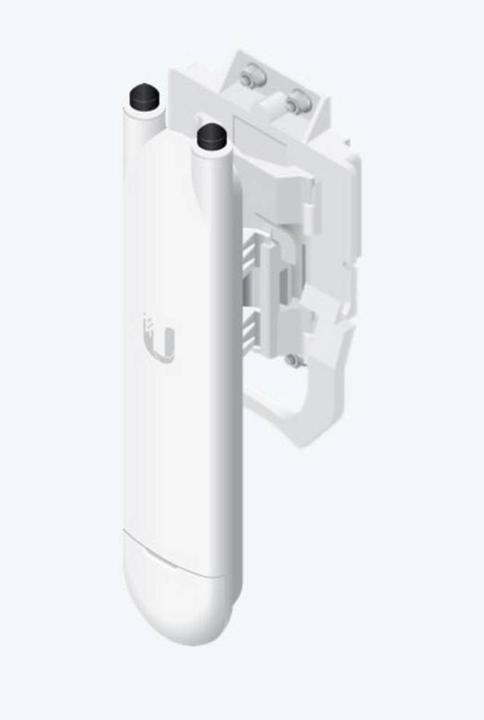

Installation place
Ceiling
Rod
Roof
Wall

Power supply

Power supply
PoE
PoE Standard
802.3af (PoE)
Power consumption
8.50 W

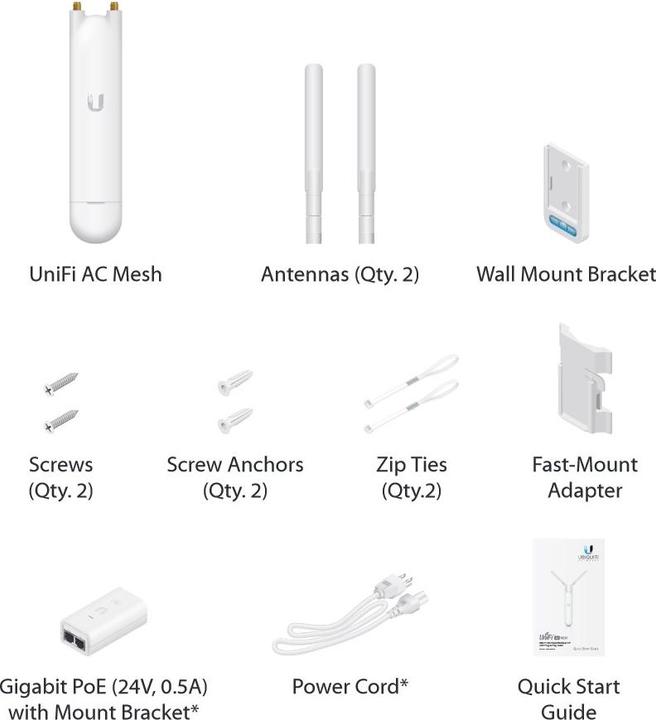

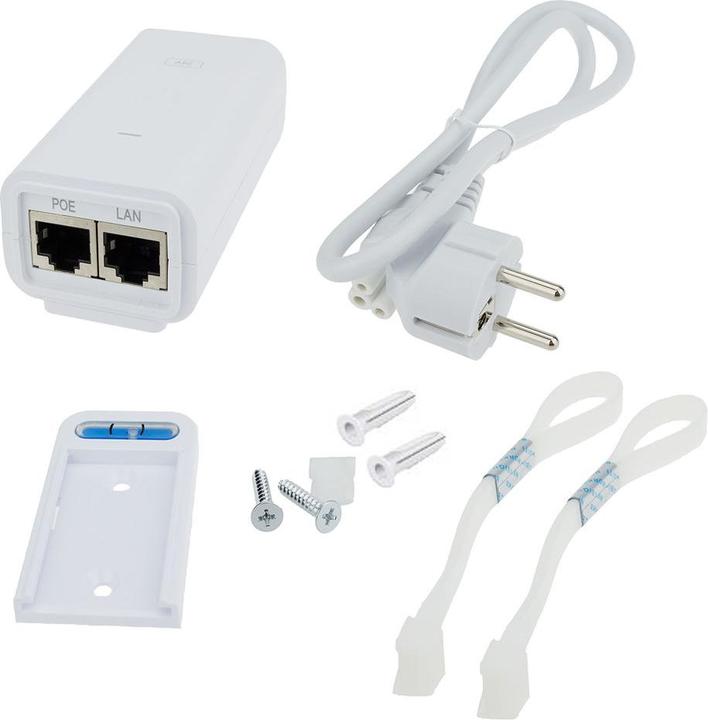

Scope of delivery

Scope of delivery
CH power cable
PoE injector

Product dimensions

Length
4.60 cm
Width
4.60 cm
Height
35.30 cm
Weight
152 g

Package dimensions

Length
25.20 cm
Width
11.20 cm
Height
8.70 cm
Weight
662 g
