Weidmüller Weidmller PCB Connectors Orange 1607140000 Content: 50 pcs (1607140000)

Ratings
BrandMore from Weidmüller
Currently out of stock
Free shipping starting at 30,–

Product details

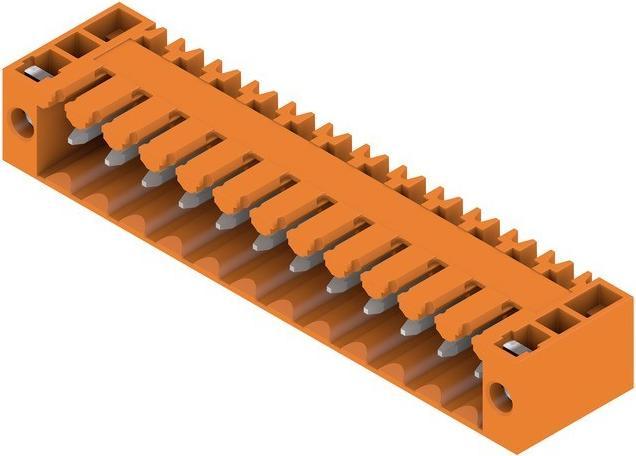

Weidmüller LP Connector Grid 3.5 SL3.5/12/90F3.2SN OR

Manufacturer: Weidmüller
Designation: LP Connector Grid 3.5
Type: SL3.5/12/90F3.2SN OR
Connection Type: Flexible PCB Connector
Connector Design: Fixed Connector
Contact Design: Pin
Number of Poles: 12
Number of Contact Rows: 1

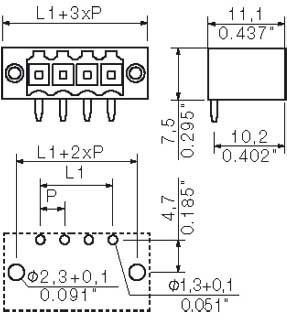

Contact Pitch: 3.5 mm
Connection Pitch: 3.5 mm
Angle PCB/Contact: 0°/180° (horizontal)
Rated Current In: 14.5 A
Rated Voltage: 320 V
Rated Impulse Voltage: 2.5 kV
Overvoltage Category: II
Degree of Pollution: 2
Contact Coating Material: Tin
Electrical Connection Type: THR Connection
Pin Length: 3.2 mm
Insulation Body Material: Thermoplastic
Housing Color: Orange
Flammability Class of Insulating Material according to UL 94: V0
Operating Temperature: -50 to 100 °C
Type of PCB Mounting: Other
Mounting Method: Soldering
Type of Banding: Other

Weidmüller LP Connector Grid 3.5 SL3.5/12/90F3.2SN OR: Additional Details
Plug-in PCB connection with innovative connection technology for secure and intuitive handling.

Key specifications

Cable + connector type
Plug connectors
Item number
33729184

General information

Manufacturer
Weidmüller
Category
Cables + Plugs
Manufacturer no.
1607140000
Release date
17-5-2023

Colour

Colour
Orange

Material

Material
Thermoplastic resin

Cable + Connector Features

Cable + connector type
Plug connectors
Max. temperature
100 °C
Min. temperature
-50 °C
Manufacturer Type
12, SL3.5
Number of cores
1 x

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
50 Piece
