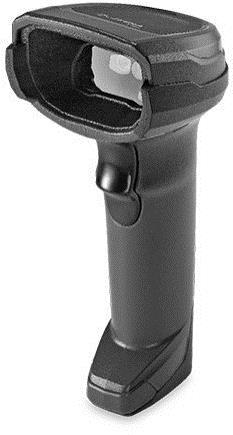

Zebra DS8108-SR Standard Range (SR)
2D barcodesMore than 10 pieces in stock at supplier
Product details
Short Info: Zebra DS8108-SR - Standard Range (SR) - Barcode Scanner - Handheld Device - Decoded - USB
Manufacturer: Zebra Technologies
Manufacturer Part No.: DS8108-SR7U2100SGW
Model: DS8108-SR
EAN/UPC:
Product Description:
Zebra DS8108-SR - Standard Range (SR) - Barcode Scanner
Type: Barcode Scanner - Handheld Device - USB - Decoded
Min. Barcode Width: 3 mil
Scan Element Type: 2D Imager
Sensor Resolution: 1280 x 960
Connection Technology: Wired
Dimensions (Width x Depth x Height): 6.6 cm x 10.7 cm x 16.8 cm
Weight: 154 g
Detailed Specifications:
General
Type: Barcode Scanner - Handheld Device
Color: Twilight Black
Barcode Interface Type: USB
Min. Barcode Width: 3 mil
Scan Element Type: 2D Imager
Sensor Resolution: 1280 x 960
Light Source Wavelength: 617 nm
Scan Mode: Single Pass
Skew (Degrees): 60
Pitch (Degrees): 60
Print Contrast Signal (PCS): 16%
Decoding Capability: Code 39, QR Code, Code 128, Data Matrix
TTL Decoding: Decoded
Connection Technology: Wired
Success Notification: Beep, LED Display
Features:
PRZM Intelligent Imaging Technology
Processor Clock Speed: 800 MHz
Expansion / Connectivity:
Interfaces: 1 x USB
Miscellaneous:
Included Accessories: Cradle
Included Cables: 1 x USB Cable
Certifications: EN 61000-3-2, EN 61000-3-3, EN55022 Class B, RoHS, FIPS 140-2, UL 60950-1, CAN/CSA C22.2 No. 60950-1-07, IP42, EN 50581, IEC 62471, EN 55024, EN 55032 Class B, ICES-003 issue 6 Class B, EN60950-1 (2nd Edition) + A11 + A1 + A12 + A2:2013, EN60950-1 (2nd Edition) + A1 + A2
Power Supply:
Required Electric Current: 450 mA (Operating)
Dimensions and Weight:
Width: 6.6 cm
Depth: 10.7 cm
Height: 16.8 cm
Weight: 154 g
Environmental Conditions:
Min. Operating Temperature: 0 °C
Max. Operating Temperature: 50 °C
Permissible Operating Humidity: 5 - 95% (non-condensing)
Drop Specification: 1.8 m over concrete floor.
Scanner type | Hand-held scanner |
Connections | USB |
Signal transmission | Cable |
Item number | 31383372 |
Manufacturer | Zebra |
Category | Barcode scanners |
Manufacturer no. | DS8108-SR7U2100SGW |
Release date | 21-3-2022 |
Colour | Black |
Exact colour description | Twilight Black |
Scanner type | Hand-held scanner |
Barcode Scanner Version | Scanner USB Kit |
Scanning method | Imagers |
Connections | USB |
Signal transmission | Cable |
Max. Drop height | 1.80 m |
Scanner functions | 2D barcodes |
Minimum print contrast | 16 % |
read indicators | Beeper, Good Read LED |
Stack codes | Code 128, Code 39, Data matrix, QR code |
Read angle lengthwise max. | 60° |
Read angle cross max. | 60° |
Image resolution | 1280 x 960 pixels |
Frequency | 800 MHz |
Country of origin | China |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 x USB cable, Cradle |
Length | 107 mm |
Width | 66 mm |
Height | 168 mm |
Weight | 154 g |
Product Safety |
