Best Rs Pro products in the Antenna + Satellite cables category

On this page you'll find a ranking of the best Rs Pro products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

1. Rs Pro Coaxial cable 17VATC White PVC coil

Outer diameter: 6.8 mm
Impedance: 75 Ω
Roll length: 100 m
Jacket color: White
Jacket material: Polyvinyl chloride (PVC)
Insulation material: PE
Conductor material: Copper clad steel
Strand type: Solid
Stranded wire: 1/1.10 mm
Strand count: 1
Strand size: 1.13 mm
Connection type: F-connector
Attenuation: 37.2 dB/100 m
VCR: 84%

Class B indoor coaxial cable from RS Pro for digital transmission and television sound signals. This coaxial cable is designed for the distribution of sound signals in both digital and analog transmission for television. It features an indoor cable suitable for audio signal frequencies between 5 MHz and 3000 MHz, with a white PVC sheath compliant with EN50117-5 17VATCA/PH.

Rs Pro Coaxial cable 17VATC White PVC coil (37.20 dB, Antenna cable)
Antenna + Satellite cables
−49%
only 1 piece on sale
EUR37,53 was EUR72,90

Rs Pro Coaxial cable 17VATC White PVC coil

37.20 dB, Antenna cable

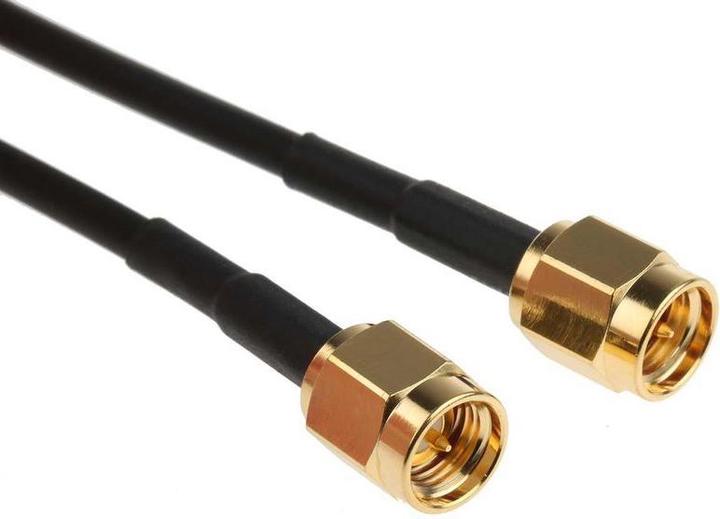

2. Rs Pro SMA cable RG174 50cm

Connection A = SMA connector
Connection B = SMA connector
Length = 520 mm
Impedance = 50 Ω
Coaxial type = RG174/U
Cable profile = Coaxial
Insulation material = PTFE
Operating temperature min. = -40 °C
Operating temperature max. = +85 °C
Conductor material = Brass
Standards = MIL-STD-348A

This RS brand product coaxial cable assembly with plug/plug is equipped with SMA connectors on both ends. The screw-on connection, the subminiature connectors of type A, ensure a secure and reliable connection and are commonly used in telecommunications and WLAN applications.

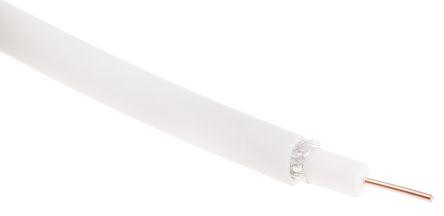

3. Rs Pro RG6 -White- SATELLITE CABLE 100M

Coaxial type: RG6
Outer diameter: 6.5 mm
Impedance: 75 Ω
Roll length: 100 m
Jacket color: White
Jacket material: Polyvinyl chloride (PVC)
Insulation material: PE foam
Conductor material: Copper clad steel
Strand type: Solid
Stranded wires: 1/1
Number of strands: 1
Strand size: 1 mm
Attenuation: 5.2 dB/100 m @ 100 MHz
Operating temperature min: -10°C

RG 6/U coaxial cable for communication and signal control systems. Features and benefits include tinned copper braid, foil shield, PVC jacket, and PE foam insulation.

4. Rs Pro Reverse SMA coaxial cable assembly, 50 Ω, 5m, RP-SMA / RP-SMA B alignment, straight, black

The RS PRO Reverse SMA coaxial cable is a high-quality solution for connecting antennas and other devices that require reliable signal transmission. With a length of 5 meters and an impedance of 50 Ω, this cable is ideal for various applications in telecommunications and networking. The straight orientation of the RP-SMA connectors ensures easy installation and a stable connection. The cable is pre-assembled, meaning it is ready to use immediately without any additional assembly required. The use of high-quality materials guarantees optimal performance and durability, while the careful workmanship maximizes signal quality. This product is an excellent choice for professionals and tech enthusiasts who value quality and reliability.

- Pre-assembled design for immediate readiness
- Straight RP-SMA connectors for easy installation
- High-quality materials for optimal signal transmission.

Rs Pro Reverse SMA coaxial cable assembly, 50 Ω, 5m, RP-SMA / RP-SMA B alignment, straight, black (Antenna cable)
Antenna + Satellite cables
EUR58,49

Rs Pro Reverse SMA coaxial cable assembly, 50 Ω, 5m, RP-SMA / RP-SMA B alignment, straight, black

Antenna cable

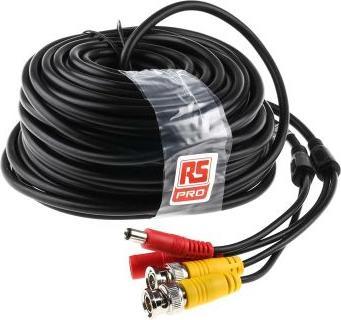

5. Rs Pro CCTV extention cable video and power 20m

Length: 20m
Color: Black

CCTV extension cable for video and power supply. This BNC video and power supply extension cable is designed for connecting CCTV cameras, recorders, monitors, and DVRs. It features BNC video connectors on both ends and a combined male to female DC power supply.

6. Rs Pro Thin E'net 10 base 2 uninsulated lead,1m

The RS Pro thin Ethernet cable is a pre-assembled high-frequency cable specifically designed for antenna applications. With a length of 1 meter, it provides a reliable connection for various RF applications. The cable is equipped with BNC connectors, both of which have a straight design and a characteristic impedance of 50 Ω. The use of tinned copper braid as shielding material ensures effective signal transmission and minimizes interference. The inner conductor material made of copper guarantees high conductivity and durability. This cable is ideal for use in professional and industrial environments where stable and high-quality signal transmission is required.

- Pre-assembled high-frequency cable for antenna applications
- BNC connectors (male) at both ends
- Tinned copper braid as shielding material
- Characteristic impedance of 50 Ω
- High-quality inner conductor material made of copper.

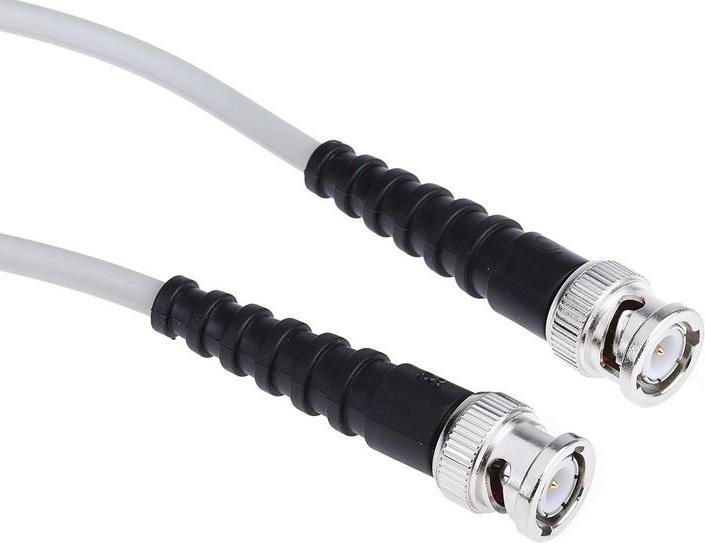

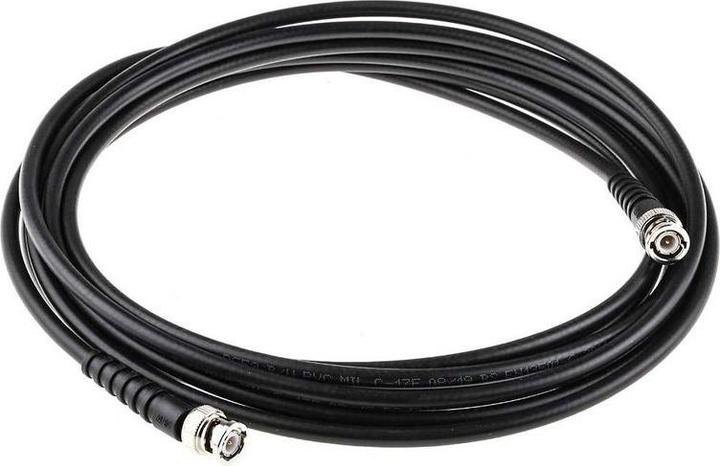

7. Rs Pro Test cable BNC St-St RG59 5m

Completed/Not completed: Completed
Connector 2: BNC
Gender Connector 1: Plug
Gender Connector 2: Plug
Impedance: 75 Ω
Length: 5 m

Coaxial cable from RS Pro.

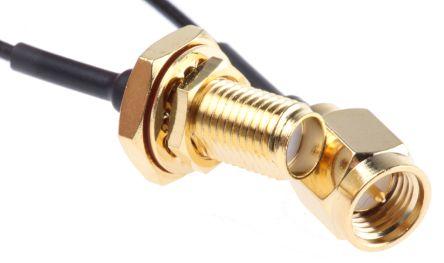

8. Rs Pro SMA-SMA plug cable assembly,IP67, 100mm

Connection A = SMA socket
Connection B = SMA plug
Length = 100 mm
Impedance = 50 Ω
Cable profile = Coaxial
Outer color = Black

Pre-assembled RF coaxial cable RS SMA IP67, panel jack to SMA plug. This pre-assembled cable has a cable diameter of 1.37 mm. It features an SMA panel crimp jack according to IP67 with 50 Ohm at one end with cable gland and washer, and an SMA plug at the other end. On the back of both connectors, there is a 15 mm long F32 heat shrink tubing with a diameter of 2.5 mm. These pre-assembled cables are available in various lengths.

9. Rs Pro Confect. Cable,N,RG214,3m

Completed/Not completed: Completed
Coaxial type: RG214
Connector gender 1: Plug
Connector gender 2: Plug
Impedance: 50 Ω
Length: 3 m

Coaxial cable RS Pro N-plug to N-plug.

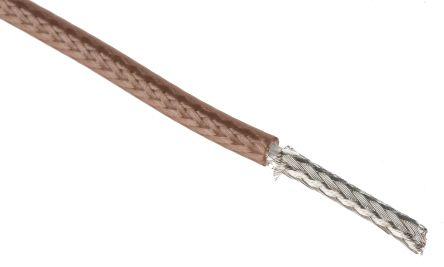

10. Rs Pro RS RG316 coaxial U FEP brown 25m

RS PRO black unterminated to unterminated coaxial cable. From the trusted brand RS PRO, comes a range of high-quality RG316 unterminated to unterminated coaxial cables. Constructed out of industry-standard components, these flexible cables have been designed.
