Best selling Electronics modules from IFM
Here you’ll find the best Electronics modules from IFM. The ranking is based on the best-selling products from this brand within the category. In addition to sales volume, factors such as availability, pricing, and overall customer relevance also influence the order. For each product, we include a short description and the most important highlights from customer reviews, giving you a quick overview of the most popular IFM options. This page always stays fresh and updates automatically.
1. IFM MK5335
2. IFM IE5318
Ifm Electronic Sensor,ind.,M8x1,Plug IE5318 Manufacturer :Ifm Electronic Designation :Sensor,ind.,M8x1,Plug DC,pnp,no,sn=2mm,b Type :IE5318 Width of sensor :12 mm Height of sensor :62 mm Length of sensor :12 mm Switching distance :2 mm Type of switching output :PNP Housing design :Cylinder, thread Max. Max. output current at safe output :250 mA Supply voltage :10..36 V Rated control supply voltage Us at DC :10..36 V Voltage type :DC Material of housing :Metal Ifm Electronic Sensor,ind.,M8x1,Plug IE5318: more details Inductive sensors, Inductive sensor, M8 x 1, metal thread, Switching distance: 2 mm, flush mountable, 3-wire, DC PNP, Supply voltage: 10...36 V DC, Current consumption: 15 mA, Normally open contact, n.o., Plug connection, M12 connector, Material housing: Brass white bronze coated LCP , EAN: 4021179085052.
3. IFM AC2256

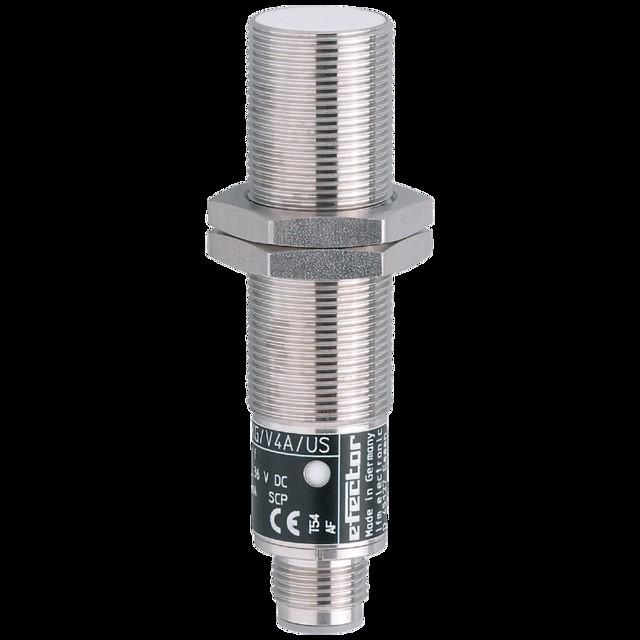

4. IFM IG5790
Inductive sensor
M18 x 1 / L = 76 mm
Switching distance 5 mm flush mountable
N/O contact
DC
PNP
M12 plug connection
IP 65
3-wire
Ambient temperature -25...100 °C
Switching frequency 700 Hz.
5. IFM IG5361
Ifm Electronic Sensor,ind. IGA3005-ANKG Manufacturer :Ifm Electronic Designation :Sensor,ind. 10-55 Type :IGA3005-ANKG Height of sensor :80 mm Mechanical installation condition for sensor :flush Switching distance :5 mm Design of electrical connection :Cable Housing design :Cylinder, thread Rated control supply voltage Us at DC :10..30 V Voltage type :DC Material of housing :Metal Ifm Electronic Sensor,ind. IGA3005-ANKG: more details Inductive sensors, Inductive sensor, M18 x 1, metal thread, switching distance: 5 mm, flush mountable, 3-wire, DC NPN, operating voltage: 10...36 V DC, current consumption: 15 mA, NO contact, n.o., connection cable, 2 m, PVC cable, 3 x 0.5 mm², material housing: brass white bronze coated PC (polycarbonate) , EAN: 4021179110181.

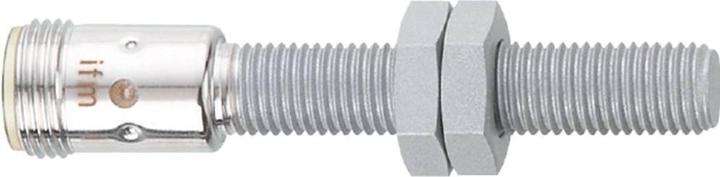

6. IFM IER200
Ifm Electronic Sensor IER200 Manufacturer :Ifm Electronic Designation :Sensor inductive Type :IER200 Ifm Electronic Sensor IER200: more details Inductive sensors, Inductive sensor, M8 x 1, Metal thread, Switching distance: 2 mm, Flush mountable, 3-wire, DC PNP, Operating voltage: 10...36 V DC, Current consumption: 20 mA, N/O contact, n.o., Plug connection, M12 plug connection, All-metal housing , Increased switching distance , Contacts gold-plated, Housing material: Housing: V4A (1.4404) non-stick coated active surface: V4A (1.4404) non-stick coated Fixing nuts: V4A (1.4404) non-stick coated , EAN: 4021179242271.
7. IFM IG6567
The IFM IG6567 is an inductive sensor designed for various applications in automation technology. With a diameter of 18 millimeters and a length of 70 millimeters, this electronic module offers a compact design that can be easily integrated into existing systems. The sensor is suitable for both PNP and NPN applications and operates with a supply voltage of 36 V. Its robust construction and high sensitivity make it ideal for use in industrial environments where precision and reliability are required. The IG6567 is a versatile module compatible with a variety of hardware, allowing it to be used in different applications.
- Compatible with various hardware solutions
- Suitable for PNP and NPN applications
- Robust construction for industrial environments.
8. IFM IE5267
IFM IE5267 Inductive sensor M8x1 DC PNP.

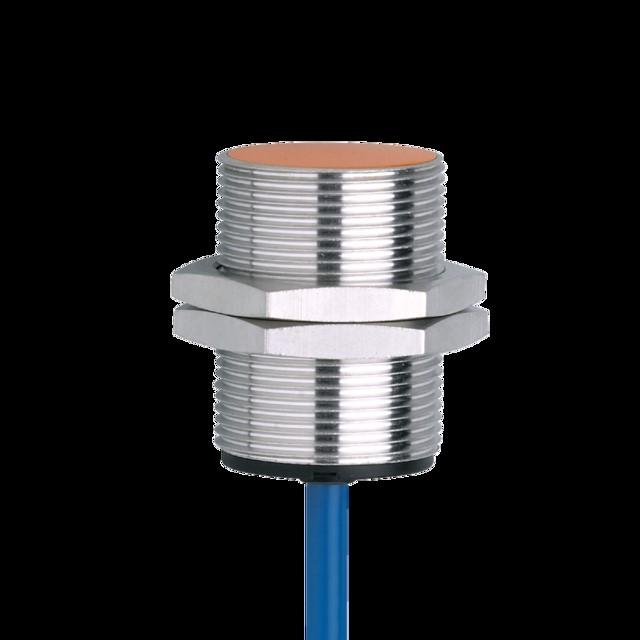

9. IFM NI5012
The IFM NI5012 is an inductive sensor designed for a wide range of applications in automation technology. With a compact design and robust construction, this sensor is ideal for use in demanding environments. The sensor has a switching distance of 10 mm and can be flush mounted, making it particularly versatile. It operates in the DC range and is designed as a normally open switch, meaning it activates when an object approaches. The NI5012 comes with a 10 m long PVC cable and meets the IP 67 protection class, making it resistant to dust and water. Additionally, it is suitable for a temperature range of -20 to 80 °C and offers a high switching frequency of 450 Hz, allowing for a quick response to changes in the environment.
- Inductive sensor with a switching distance of 10 mm
- Flush mountable, suitable for compact applications
- IP 67 protection class for high durability
- Temperature range of -20 to 80 °C
- High switching frequency of 450 Hz for rapid responses.

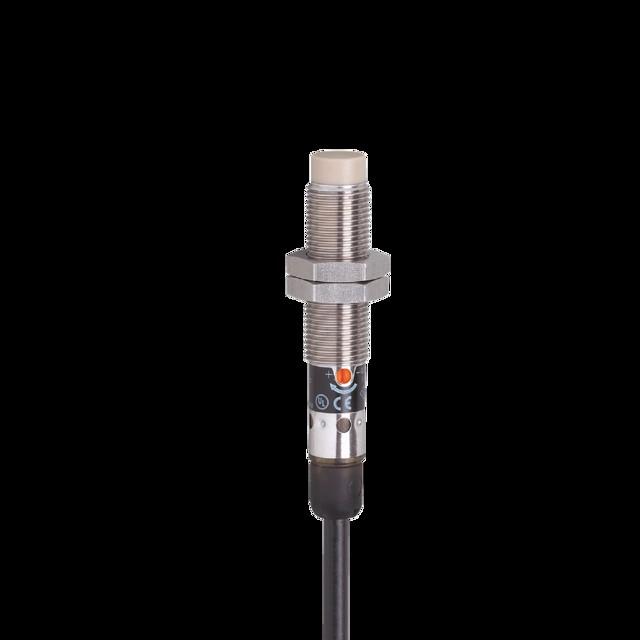

10. IFM KF5015
Capacitive sensor
M12 x 1 / L = 70 mm
Switching distance 8 mm not flush mountable
N/O contact
DC
PNP
2 m PUR cable
IP 65
3-wire
Ambient temperature -25...70 °C
Switching frequency 50 Hz.
