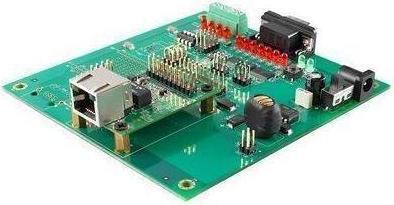

1. Moxa MIINEPORT E3-H-ST - Starter kit for the MiiNePort E3-H series, including module

The MIINEPORT E3-H-ST Starter Kit from Moxa is a comprehensive solution for integrating serial-to-Ethernet device server modules. This compact and energy-efficient module is specifically designed for the MiiNePort E3-H series and offers a variety of features that enable easy implementation in various applications. With a powerful 32-bit Arm Core and extensive memory capacities of 2 MB Flash and 4 MB SDRAM, the module is equipped for demanding tasks. The configurable DIO channels and the Ethernet interface with magnetic isolation protection provide flexibility and safety in use. The starter kit is ideal for developers and engineers looking for a reliable and versatile solution for their projects.

- Embedded system with 32-bit Arm Core for high performance
- Configurable DIO channels for flexible application possibilities
- Comprehensive Ethernet software features for easy management
- Support for various operating systems, including Windows and Linux
- Versatile serial interface modes for different communication needs. more

Electronics modules

−19%

EUR219,– was EUR269,–

Moxa MIINEPORT E3-H-ST - Starter kit for the MiiNePort E3-H series, including module

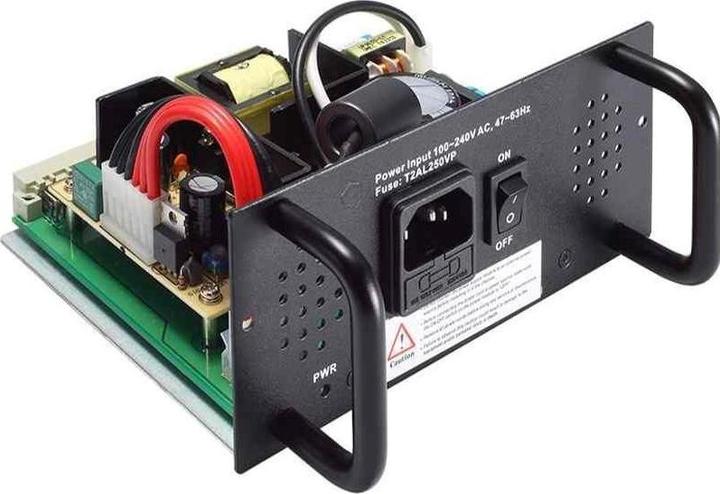

2. Moxa 110 to 240 VAC power supply for the TRC-2190-AC

Electronics modules

−22%

EUR289,– was EUR369,–

Moxa 110 to 240 VAC power supply for the TRC-2190-AC

3. Moxa 1 100BaseFX port, single-mode, SC connector, -40 to 75C operating temperature

Electronics modules

−22%

EUR249,– was EUR319,–

Moxa 1 100BaseFX port, single-mode, SC connector, -40 to 75C operating temperature

4. Moxa 85M-6600-T - Module for the ioPAC 85008600 Series, 6 RTDs, -40 to 75C operating temperature

Rail, wind power, and offshore applications demand system reliability and stability, even in harsh environments. Our rugged controllers and I/O products are designed to perform in extreme conditions while providing versatile data acquisition and control capabilities.

Module for the ioPAC 8500/8600 Series, 6 RTDs, -40 to 75°C operating temperature.

Input/Output Interface
Isolation: 3 kVDC or 2 kVrms
RTD Channels: 6

Digital Outputs
Pulse Output Frequency: 5 kHz

RTDs
Accuracy:
- ±0.1% FSR @ 25°C
- ±0.3% FSR @ -40 to 75°C
Connector: Spring-type Euroblock terminal
Input Connection: 2- or 3-wire
Input Impedance: 625 kilo-ohms (min.)
Sensor Type:
- JPT100, JPT200, JPT500 (-200 to 640°C)
- JPT1000 (-200 to 350°C)
- NI100, NI50, NI500 (-60 to 250°C)
- NI1000 (-60 to 150°C)
- NI120 (-80 to 260°C)
- PT1000 (-200 to 350°C)
- PT50, PT100, PT200, PT500 (-200 to 850°C)
- Resistance of 310, 620, 1250, and 2200 ohms
Resolution: 0.1°C or 0.1 ohms
Sampling Rate:
- All channels: 12 samples/sec
- Per channel: 2 samples/sec

Power Parameters
Power Consumption: 27.7 mA @ 24 VDC

Physical Characteristics
Dimensions: 25 x 128.2 x 85.5 mm (0.98 x 5.05 x 3.37 in)
Weight: Under 80 g
Wiring: I/O cable, 14 to 28 AWG

Environmental Limits
Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Altitude: 2000 m
Note: Please contact Moxa if you require products guaranteed to function properly at higher altitudes.

Standards and Certifications
EMC:
- EN 55032/24
- EN 61000-6-2/-6-4
EMI:
- CISPR 32, FCC Part 15B Class A
EMS:
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
- IEC 61000-4-3 RS: 5100 MHz to 6000 MHz: 3 V/m
- IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
- IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
- IEC 61000-4-6 CS: 10 V
- IEC 61000-4-8 PFMF
Railway:
- EN 50121-4
- EN 50155 (complies with a portion of EN...). more

Electronics modules

−22%

EUR789,– was EUR1009,–

Moxa 85M-6600-T - Module for the ioPAC 85008600 Series, 6 RTDs, -40 to 75C operating temperature

Radio module

5. Moxa 36 to 53 VDC power supply for the TRC-2190-DC-48

Electronics modules

−20%

EUR509,– was EUR639,–

Moxa 36 to 53 VDC power supply for the TRC-2190-DC-48

6. Moxa 1 100BaseFX port, multi-mode, SC connector, -40 to 75C operating temperature

Electronics modules

−19%

EUR209,– was EUR259,–

Moxa 1 100BaseFX port, multi-mode, SC connector, -40 to 75C operating temperature

7. Moxa 45MR-7820 - Module for the ioThinx 4500 series, potential distributor module

The 45MR-7820 module for the ioThinx 4500 series from Moxa is a highly advanced potential distribution module designed for use in demanding environments. It offers an operating temperature range of -20 to 60 °C, making it suitable for various industrial applications. The module features input and output interfaces as well as field potential output channels, allowing for flexible integration into existing systems. Installation is straightforward on a DIN rail, facilitating easy setup. Weighing 73.6 g and with compact dimensions, it is ideal for applications where space is limited. The module meets numerous standards and certifications, underscoring its reliability and safety under various operating conditions.

- Operating temperature range of -20 to 60 °C for versatile applications
- Input/output interface with multiple field potential output channels
- Easy installation on DIN rail for flexible setup
- Complies with strict standards and certifications for EMC and safety
- Environmentally friendly product, compliant with RoHS and WEEE. more

Electronics modules

−21%

EUR149,– was EUR189,–

Moxa 45MR-7820 - Module for the ioThinx 4500 series, potential distributor module

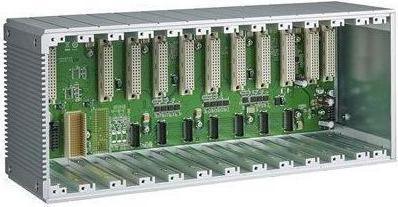

8. Moxa IOPAC 8600-BM005-T - Module for the ioPAC 8600 series, 5 slots, -40 to 75C operating temperature

The IOPAC 8600-BM005-T module is a highly advanced electronic module specifically designed for the ioPAC 8600 series. With five slots, it offers a flexible solution for various applications in harsh environments, such as railway, wind power, and offshore applications. The module is designed for operating temperatures ranging from -40 to 75 °C, making it ideal for use in extreme climatic conditions. Additionally, it features comprehensive security functions, including a local database for authentication and advanced encryption technologies such as AES-256 and RSA-1024. The robust metal construction ensures high reliability and stability, while the wall-mounting option allows for easy installation. With a variety of security protocols, including SNMPv3 and SSHv2, the module is well-equipped to meet the demands of modern industrial applications.

- Operating temperature of -40 to 75 °C for extreme environments
- Five slots for flexible expansion options
- Comprehensive security features with AES-256 encryption
- Robust metal construction for high reliability. more

Electronics modules

−22%

EUR1129,– was EUR1449,–

Moxa IOPAC 8600-BM005-T - Module for the ioPAC 8600 series, 5 slots, -40 to 75C operating temperature

Radio module

9. Moxa 85M-3811-T - Module for the ioPAC 85008600 series, 8 AIs, 0 to 10 V, 40 kHz

Module for the ioPAC 8500/8600 series, 8 analog inputs, 0 to 10 V, 40 kHz, -40 to 75°C operating temperature.

Input/output interface:
- Analog input channels: 8
- Isolation: 3 kV DC or 2 kV RMS

Digital outputs:
- Pulse output frequency: 5 kHz

Analog inputs:
- Accuracy: ±0.1% FSR @ 25°C, ±0.3% FSR @ -40 to 75°C
- Connection: Spring Euroblock terminal
- Historical data buffering: 60 KB per channel, 6-second data buffer at 5 kHz
- I/O type: Differential
- Input impedance: 20 mega-ohms (min.)
- Input range: 0 to 10 VDC
- Resolution: 16 bit
- Sampling rate: All channels: 40k samples/sec, per channel: 5k samples/sec

Performance parameters:
- Power consumption: 521 mA @ 24 VDC

Physical characteristics:
- Dimensions: 25 x 128.2 x 85.5 mm (0.98 x 5.05 x 3.37 in)
- Weight: less than 80 g
- Wiring: I/O cable, 14 to 28 AWG

Environmental conditions:
- Operating temperature: -40 to 75°C (-40 to 167°F)
- Storage temperature (including packaging): -40 to 85°C (-40 to 185°F)
- Relative humidity: 5 to 95% (non-condensing)
- Altitude: 2000 m
- Note: Please contact Moxa if you require products that are guaranteed to function properly at high altitudes.

Standards and certifications:
- EMC: EN 55032/24, EN 61000-6-2/-6-4
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 5100 MHz to 6000 MHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF
- Railway: EN 50121-4, EN 50155 (fulfills part of the EN 50155 specifications)
- Safety: UL 508
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6

MTBF:
- Time: 1,426,112 hours
- Standards: Telcordia SR332. more

Electronics modules

−22%

EUR839,– was EUR1069,–

Moxa 85M-3811-T - Module for the ioPAC 85008600 series, 8 AIs, 0 to 10 V, 40 kHz

Radio module

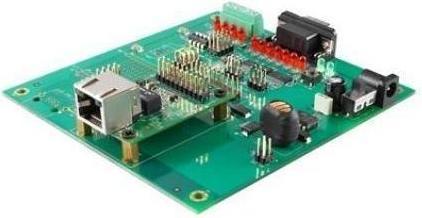

10. Moxa MIINEPORT E3-ST - Starter kit for the MiiNePort E3 series, including module

The MIINEPORT E3-ST Starter Kit is a comprehensive solution for the MiiNePort E3 series, offering a powerful embedded system with a 32-bit Arm Core. This kit is ideal for developers seeking a flexible and customizable platform for their projects. With an integrated 2 MB flash memory and 4 MB SDRAM, it enables efficient data processing and storage. The configurable DIO channels provide versatile options for customizing input and output interfaces. The starter kit supports a variety of Ethernet functions, including PoE pass-through and robust magnetic isolation of 1.5 kV, making it a reliable choice for industrial applications. Support for various operating systems, including Windows and Linux, along with extensive software management functionality, makes this kit a flexible solution for diverse requirements.

- 32-bit Arm Core CPU for powerful processing
- Configurable DIO channels for flexible input/output control
- Integrated magnetic isolation of 1.5 kV for enhanced safety
- Support for PoE pass-through according to IEEE 802.3af
- Compatible with various operating systems, including Windows and Linux. more

Electronics modules

−22%

EUR209,– was EUR269,–

Moxa MIINEPORT E3-ST - Starter kit for the MiiNePort E3 series, including module
