Best selling Electronics modules from TE Sensors
On this page you’ll find a ranking of the best Electronics modules from TE Sensors. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. TE Sensors Inductive Prox 8mm Shielded PNP 1.5mm
Universal brass. Flush mountable, improved range Nickel-plated brass housing 3-wire, DC operation.
2. TE Sensors Photoelectric Sensor, M18 PNP, Connector
Sensor type: Cylindrical
Operating mode: Multimode
Detection range: 0.12 m, 0.3 m, 2 m, 15 m
Output type: PNP
Connection: 4-pole M12 connector
DC voltage max: 24V
Light source: Infrared
Protection class: IP65, IP67
Current max: 100 mA
Response time: <2 ms
Housing material: Nickel-plated brass
Operating temperature max: +55°C
Cylindrical, M18. Four detection modes in one device. Easy setup at the push of a button. Precise setup via self-learning capability for multimode detection. Detection range depends on operating mode. Passage beam function via additional light source (passage beam accessory). Programmable normally open/normally closed switching. Connection: pre-wired or plug-in connector (4-pin M12 connector). Protection class IP67. Operating temperature range: -15 to +55 °C.
3. TE Sensors Sensor, Multi, M18, Sr 0-20m M12 conn
The optical sensor NB 20m M18 from Telemecanique Sensors is a versatile electronic module designed for various applications in automation technology. With a compact design of 18 mm, this multifunctional sensor offers an impressive range of up to 20 meters. It features a teach button that allows for easy programming and adjustment of switching functions. The sensor requires a power supply of 12 to 24 V DC and is equipped with an M12 connector, facilitating integration into existing systems. The sensor is provided as a one-way system, which includes both transmitter and receiver. The protection class is Class 0, making it suitable for a variety of environments. The sensor is ideal for applications where precise light measurements are required.
- Multifunctional sensor with teach button for easy programming
- Switching distance of 0 to 20 meters for flexible applications
- M12 connector for easy integration into existing systems
- Semiconductor output with programmable switching function
- Suitable for various applications in automation technology.
4. TE Sensors XS1 Inductive Sensor M12
Telemechanique Sensors Proximity Switch XS112B3PBM12
Manufacturer: Telemechanique Sensors
Designation: Proximity Switch M12 PNP NC B M12
Type: XS112B3PBM12
Length of the sensor: 50 mm
Diameter of the sensor: 12 mm
Mechanical installation condition for the sensor: flush
Switching distance: 4 mm
Suitable for safety functions: no
Type of switching function: Normally Open
Type of switching output: PNP/PNP
Type of electrical connection: M12 connector
Number of semiconductor outputs with signaling function: 1
Type of actuation: metallic target
Interface design: none
Interface design for safety-related communication: none
Housing design: Cylinder, threaded
Housing coating: nickel-plated
Cascadable: no
SIL according to IEC 61508: none
Performance Level according to EN ISO 13849-1: none
Max. output current at the safe output: 200 mA
Supply voltage: 12..24 V
Rated control supply voltage Us at DC: 12..24 V
Type of voltage: AC/DC
Switching frequency: 2500 Hz
With monitoring function for downstream devices: no
Material of the housing: Metal
Pressure-resistant: no
Explosion protection category for gas: none
Explosion protection category for dust: none
Interference immunity against magnetic fields: immune to magnetic DC and AC fields
This OsiSense XS cylindrical (M12 thread) inductive proximity sensor features a PPS sensing surface and a nickel-plated brass housing. It has a switching distance of 4 mm, Normally Open PNP output, and an M12 connector. It operates with a supply voltage of 12 to 24 VDC. This universally applicable cylindrical inductive proximity sensor with thread is designed for flush mounting and has a larger detection range. It can be directly mounted on a surface or bracket thanks to its external thread and double nuts, and it is E2, CSA, UL certified.
5. TE Sensors Sensor, Inductive, M18, Sr 8mm, PNP, 2m
Telemechanique Sensors Proximity Switch XS618B1PAL2
Manufacturer: Telemechanique Sensors
Designation: Proximity Switch M18
Type: XS618B1PAL2
Length of the sensor: 60 mm
Diameter of the sensor: 18 mm
Mechanical installation condition for the sensor: flush
Switching distance: 8 mm
Suitable for safety functions: no
Type of switching function: normally open
Type of switching output: PNP/PNP
Type of electrical connection: radial cable
Number of semiconductor outputs with signaling function: 1
Number of safe semiconductor outputs: 1
Type of actuation: metallic target
Interface type: none
Interface type for safety-related communication: none
Housing design: cylinder, threaded
Housing coating: nickel-plated
Cascadable: no
SIL according to IEC 61508: none
Performance Level according to EN ISO 13849-1: none
Max. output current at safe output: 200 mA
Supply voltage: 12 to 48 V
Rated control supply voltage Us at DC: 12 to 48 V
Voltage type: AC/DC
Switching frequency: 1000 Hz
With monitoring function for downstream devices: no
Material of the housing: metal
Pressure resistant: no
Explosion protection category for gas: none
Explosion protection category for dust: none
Immunity to magnetic fields: immune to magnetic static fields
Telemechanique Sensors Proximity Switch XS618B1PAL2: additional details
OsiSense XS - Inductive proximity switches with increased switching distance, round design.
XS6 Inductive proximity switches, dimensions M18 x 60 mm, connection cable 2 m, output NO, flush yes, switching distance: 8 mm, protection class IP 68.
Function PNP.
EAN: 3389110146349.
6. TE Sensors Inductive Sensor, M8, Sr 2.5mm, PNP, 2m
The inductive proximity switch from Telemecanique Sensors is a highly advanced electronic module designed for precise detection applications in various industrial environments. With a cylindrical housing and a thread size of M8 x 1, this switch provides a reliable solution for non-contact object detection. The detection range of up to 2.5 mm enables effective detection, while the PNP normally open output type ensures easy integration into existing systems. The switch is designed for a supply voltage of 12 to 24 V DC and offers a maximum DC voltage of 36 V. With a robust PPS housing and an operating temperature range of -25 to +70 °C, it is suitable for use in demanding environments. The inductive proximity switch is also equipped with short-circuit and overload protection, enhancing its reliability and longevity.
- Cylindrical housing design with M8 x 1 thread size
- Detection range of up to 2.5 mm for precise object detection
- Robust PPS housing for high temperature resistance
- Integrated short-circuit and overload protection
- Operating temperature range of -25 to +70 °C.

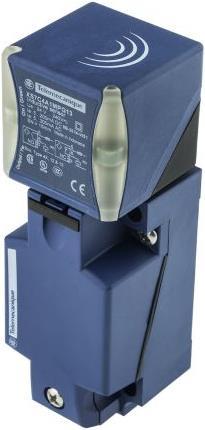

7. TE Sensors Sensor Inductive Sr 15mm AC DC, Con PG13
Housing design: cubic
Output type: Normally closed/Normally open
Detection range: 15 mm
Connection type: Cable gland PG13.5
Supply voltage: 24 → 240 V ac/dc
Length: 40 mm
Width: 40 mm
Depth: 117 mm
Max. AC voltage: 240 V
Mounting type: flush mounting
Switching current: 200 (DC) mA, 300 (AC) mA
Housing material: plastic
Max. switching frequency: 50 Hz
Inductive proximity sensors of the XS series – rectangular design. The rectangular sensors of the OsiSense XS series can be quickly and easily mounted on any machine or device thanks to the unique "One-Click" mounting system and the flexibility of a rotating detection head. The inductive sensors of the XS series facilitate simplified maintenance through the quick removal and reinstallation of the device. Fault diagnosis is made easier by clear signaling from the LED status indicators, which are clearly visible from any direction and at a great distance. These inductive proximity sensors are ideal for use in many applications, including packaging, material handling, assembly, as well as in the food and beverage industry. Simple "One-Click" mounting bracket, clear LED status indicators, easily adjustable sensor head with 5 positions, SIL2 certification (Safety Integrity Level 2).
8. TE Sensors Through Beam Transmitter, M18, 2 m cable
This OsiSense Design 18 Single Mode light emitter features a nickel-plated brass housing. It has a switching distance of 20 meters and is pre-wired. The supply voltage ranges from 12 to 24 VDC. This multimodal cylindrical light barrier emitter has a metallic body, can be directly mounted on a surface or bracket thanks to its external thread and double nuts, and is CSA and UL certified.
Electronics modules
−9%
EUR95,19 was EUR104,34
TE Sensors Through Beam Transmitter, M18, 2 m cable
Channels
9. TE Sensors Sensor, polarised, Sr 5m, M12 conn PNP
The NB 5m M12 PNP sensor from Telemecanique Sensors is a highly advanced electronic module designed for precise applications in automation technology. With a compact design of 50x50 mm and a reflective light barrier, this sensor provides a reliable solution for object detection in a variety of industrial environments. The switching distance of up to 5 meters allows for flexible installation, while the power supply of 12-24 V DC ensures broad compatibility with different systems. The M12 connector facilitates easy and secure connections, simplifying integration into existing systems. With a response time of just 2 ms and a frequency of 0.25 kHz, the sensor can quickly react to changes in the environment, making it ideal for dynamic applications. The IP65 protection rating ensures that the sensor operates reliably even under challenging conditions.
- Response time of 2 ms for fast detection
- Switching distance of up to 5 m for flexible applications
- M12 connector for easy integration
- IP65 protection rating for use in harsh environments
- Semiconductor output with signaling function.
10. TE Sensors Proximity switch
TE Sensors Inductive Proximity Switch XS8C1A1MBL2
Manufacturer: TE Sensors
Description: Inductive proximity switch NC, 2L, cable length 2m
Type: XS8C1A1MBL2
Sensor width: 40 mm
Sensor height: 40 mm
Sensor length: 15 mm
Mechanical installation condition for sensor: non-flush
Switching distance: 15 mm
Suitable for safety functions: no
Switch function type: Normally open
Switch output type: 2-wire
Electrical connection type: Radial cable
Number of semiconductor outputs with signaling function: 1
Actuation type: Metallic target
Interface type: None
Interface type for safety-related communication: None
Housing design: Rectangular
Housing coating: Other
Cascadable: no
SIL according to IEC 61508: None
Performance Level according to EN ISO 13849-1: None
Max. output current at safe output: 200 mA
Supply voltage: 24..240 V
Rated control supply voltage Us at AC 50 Hz: 24..240 V
Rated control supply voltage Us at AC 60 Hz: 24..240 V
Rated control supply voltage Us at DC: 24..240 V
Voltage type: AC/DC
Switching frequency: 1000 Hz
With monitoring function for downstream devices: no
Housing material: Plastic
Pressure resistant: no
Explosion protection category for gas: None
Explosion protection category for dust: None
Interference immunity against magnetic fields: immune to static and alternating magnetic fields
TE Sensors Inductive Proximity Switch XS8C1A1MBL2: Additional details
This OsiSense XS flat (40 x 40 x 15 mm) inductive proximity sensor features a PBT housing. It has a switching distance of 25 mm, normally open function, and comes pre-wired (2m cable). It operates with a supply voltage of 24 to 240 VAC/DC. This universal flat inductive proximity sensor offers a greater range. It can be directly mounted on a surface thanks to 4 screw mounting points and is certified by CCC, ECOLAB, CSA, and UL.
