Electronics supplies + Casing
EUR739,–
Gira 134228 769mm anthracite Energy column lighting element 3xSCHUKO
Best selling Electronics supplies + Casings from Gira
On this page you’ll find a ranking of the best Electronics supplies + Casings from Gira. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.

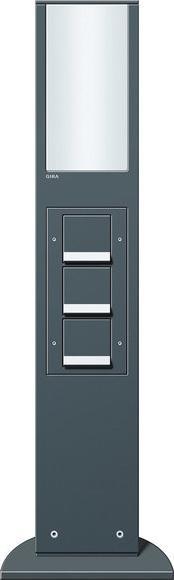

1. Gira 134228 769mm anthracite Energy column lighting element 3xSCHUKO
Gira energy column with light element, height 769 mm, 3 Schuko sockets with integrated increased touch protection (shutter) and symbol in anthracite. Gira energy columns and light columns with and without light elements are suitable for outdoor use. The columns are made of powder-coated aluminum. The base elements for columns up to 1400 mm are also made of powder-coated aluminum, while the base elements for columns from 1400 mm are made of powder-coated steel. Both are in the color anthracite according to GSB standard. The surface is weather and UV resistant as well as dirt and scratch resistant.
Features: Gira energy column with light element and three Schuko sockets. The light element consists of an aluminum reflector and a shatterproof acrylic glass pane. Rear light exit for orientation lighting. The two upper sockets are rotated by 30 degrees. The connection is made via a 5-pole screw terminal for rigid and flexible conductors up to 4 mm².
Notes: For columns up to 1400 mm in height, the mounting is done on a stone or concrete base with an optionally available earth sleeve. For columns from 1400 mm in height, mounting is only possible with 3 heavy-duty dowels on stone or concrete. Recommendation: Install an RCD before the device. Single-dowel mounting. Increased touch protection according to DIN VDE 0620-1. Light sources with E27 thread in energy efficiency classes A++ to E can be used.

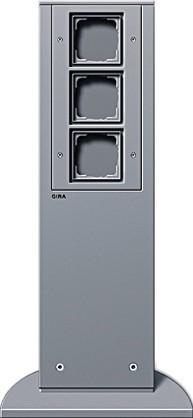

2. Gira 134526 491mm colour aluminium energy coil 3x empty unit
Gira E-Pole 3x Empty Unit 134526
Manufacturer: Gira
Description: E-Pole 3x Empty Unit 491 mm
Type: 134526
With lighting: no
Switch function: none
Material: other
Material quality: other
Halogen-free: no
Surface protection: other
Color: Aluminum
Width: 142 mm
Height: 491 mm
Depth: 75 mm
Suitable for protection class (IP): IP44
Gira E-Pole 3x Empty Unit 134526: additional details
Gira energy pole with 3 empty units, height 491 mm, unpopulated, color aluminum. Gira energy poles and light poles with and without light elements for outdoor use. The poles are made of powder-coated aluminum. The base elements for poles up to 1400 mm are also made of powder-coated aluminum. The base elements for poles over 1400 mm are made of powder-coated steel, each in the color anthracite according to GSB standard. The surface is weather and UV resistant, dirt and scratch resistant.
Features: Freely configurable Gira energy pole. The three empty units can be individually populated on-site with device inserts from the TX_44 program or from the System 55.
Notes: For poles up to 1400 mm in height, mounting on stone or concrete base with optionally available earth sleeve. For poles over 1400 mm in height, mounting only with 3 heavy-duty anchors on stone or concrete. Recommendation: Install an RCD before the device. 1-anchor mounting.
EAN: 4010337345268.

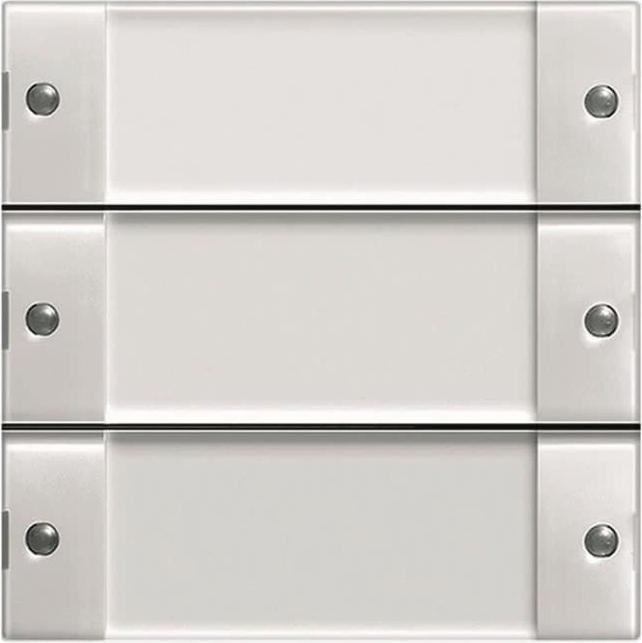

3. Gira Radio
The eNet radio transmitters send switching, dimming, and blind control commands to corresponding eNet radio receivers. They allow for a seamless expansion of existing switch combinations. Installation can be done without surface-mounted housings or device boxes. The radio wall transmitter can be attached to walls using screws or glued onto smooth or transparent surfaces with a mounting plate. The transmission includes switching, dimming, blind control, and scene commands. The switching function is optimized for controlling momentary switches. The rocker can be set as a channel or scene function. Two colored LEDs on the right and left of the buttons indicate the status. The device is battery-operated.
Main features:
- Type: Wall-mounted
- Interface: RF Wireless
- Transmission technology: Wireless
- Number of channels: 3 channels
- Operating frequency: 868.3 MHz
- Transmitted power: 20 mW
- Built-in display: No
- Large buttons: Yes
- LED indicators: Yes
- Product color: White
- International Protection Rating (IP Code): IP20
- Battery technology: Lithium
- Battery type: CR 2450N.

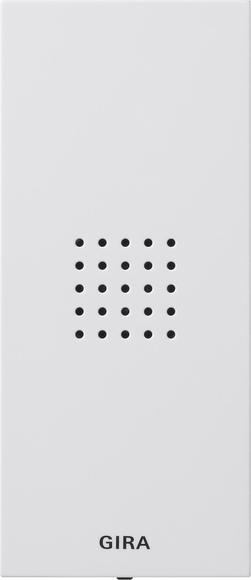

4. Gira 141803 Handset pure white Door communication System 55
GIRA 141803 Handset pure white.
5. Gira 814228 Column cover energy coil anthracite
The Gira 814228 column cover in anthracite is a high-quality cover for energy columns that is both functional and aesthetically pleasing. Made from durable thermoplastic, this column cover offers a reliable protection rating of IP44, making it ideal for outdoor use. The cover is halogen-free, ensuring safe and environmentally friendly usage. With its elegant anthracite surface, it harmoniously blends into various environments while providing effective protection for the underlying electrical components. The Gira column cover is a practical solution for those who value quality and durability.
- Durable thermoplastic construction for longevity
- Protection rating IP44 for outdoor use
- Elegant anthracite surface for appealing design.

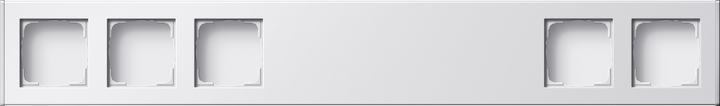

6. Gira 136527 Profile 5-fold colour pure white Profile 55 vertical
Profile 55 for vertical and horizontal mounting, 5-fold, 600 mm, pure white (painted). Features: With rear and side cable and channel entry. The cable entry can be installed both flush-mounted and surface-mounted. Simplified installation by clipping in the inserts. Notes: Rocker switches, push buttons, and Schuko sockets with a flap cover are generally drip water protected (IP21) when used with these housings in the System 55 on the wall. Key switches and 3-step switches cannot be installed in these housings.
Electronics supplies + Casing
EUR199,–
Gira 136527 Profile 5-fold colour pure white Profile 55 vertical
Housing

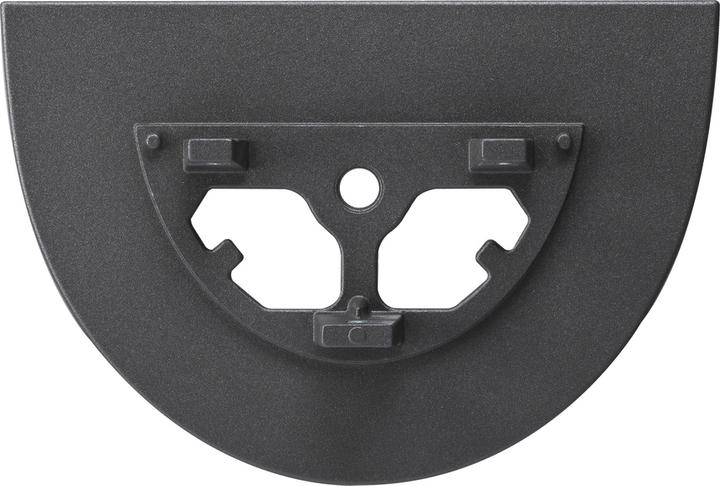

7. Gira 814028 Pedestal E-Series 491 - 769 mm energy column anthracite
The Gira 814028 Stand Base E-Pole is a high-quality solution for the installation of energy poles with a height of 491 to 769 mm. Made in Germany, this stand base provides robust and reliable support for various compatible hardware solutions. The anthracite finish harmoniously blends into different environments, ensuring an appealing appearance. The stand base is easy to assemble and allows for flexible placement of the energy pole, making it ideal for use in commercial and private areas. With a thoughtful design and solid construction, this stand base is a practical addition to any installation.
- Made in Germany for high quality and durability
- Compatible with various hardware solutions for versatile applications
- Robust construction in anthracite for an attractive look.
Electronics supplies + Casing
EUR119,–
Gira 814028 Pedestal E-Series 491 - 769 mm energy column anthracite
Terminal block

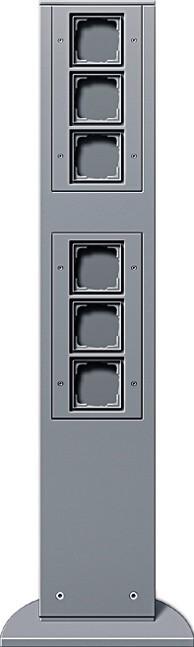

8. Gira 135126 769mm colour aluminium energy coil 6x empty unit
Gira E-Pillar 6x Empty Unit 135126
Manufacturer: Gira
Description: E-Pillar 6x Empty Unit 769 mm
Type: 135126
With lighting: no
Switching function: none
Material: other
Material quality: other
Halogen-free: no
Surface protection: other
Color: Aluminum
Width: 142 mm
Height: 769 mm
Depth: 74 mm
Suitable for protection class (IP): IP44
Gira E-Pillar 6x Empty Unit 135126: additional details
Gira energy pillar with 6 empty units, height 769 mm, unfilled, color aluminum. Gira energy pillars and light columns with and without light elements for outdoor use. The columns are made of powder-coated aluminum. The base elements for columns up to 1400 mm are also made of powder-coated aluminum. The base elements for columns from 1400 mm consist of powder-coated steel, each in the color anthracite according to GSB standard. The surface is weather and UV resistant, dirt and scratch resistant.
Features: Freely configurable Gira energy pillar with 6 empty units. The six empty units can be individually filled on-site with device inserts from the Gira TX_44 switch program or from the System 55.
Notes: For columns up to 1400 mm in height, mounting on stone or concrete base with optionally available earth sleeve. For columns over 1400 mm in height, mounting only with 3 heavy-duty dowels on stone or concrete. Recommendation: Install an RCD before the device. 1-dowel mounting.
EAN: 4010337351269.

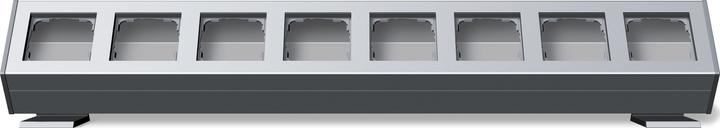

9. Gira 119826 Profile 8-fold aluminium Profile 55 w.mounting bracket
Profile 55 with mounting bracket 8-fold aluminum
Features: Installation profile made of aluminum for horizontal and vertical mounting. With cable and channel entry. The cable entry can be installed flush or surface-mounted. Simplified installation by clipping in the inserts.
Notes: Rocker switches, push buttons, and Schuko sockets with a flip cover are generally splash-proof (IP21) on the wall when used with these housings in the System 55. Key switches and 3-step switches cannot be installed in these housings. The Profile 55 can be installed as a table housing or under wall cabinets or in corners using the mounting brackets or support feet.
Electronics supplies + Casing
EUR259,–
Gira 119826 Profile 8-fold aluminium Profile 55 w.mounting bracket
Housing
10. Gira Radio wall transm.
Gira Wireless Wall Switch, battery-free 242103
Manufacturer: Gira
Description: Wireless Wall Switch, battery-free
Type: 242103
Application: Control of electrical consumers
Suitable for dimming: Yes
Suitable for shading: Yes
Suitable for switching: Yes
With cover: No
Material: Plastic
Material quality: Thermoplastic
Halogen-free: No
Surface protection: Other
Surface finish: Glossy
Color: White
RAL number (similar): 9010
Transparent: No
With LED display: No
Number of buttons: 1
Number of activation points: 1
Interface type: EnOcean
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No
Gira Wireless Wall Switch, battery-free 242103: further details
EnOcean wireless wall switch, single, pure white glossy, System 55 - transmitter for sending switching, dimming, or shading commands to EnOcean wireless system receivers.
- Battery-free device without external power supply. Transmission energy is generated from mechanical energy when the switch is pressed.
- Encrypted or unencrypted wireless transmission possible. Mounting on device boxes or on smooth, flat surfaces using screws or adhesive. This product is not suitable for eNet. Gira EnOcean transmitters are compatible with third-party actuators.
Wireless wall switch, mounting plate, adhesive film (privacy protection for glass surfaces), and adhesive points for mounting on smooth, flat surfaces are included in the delivery.
EAN: 4010337463832.
