Busch-Jaeger Fibre optic subscriber line.
Network Accessories
Best selling Network accessories from Busch-Jaeger
On this page you’ll find a ranking of the best Network accessories from Busch-Jaeger. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Busch-Jaeger Fibre optic subscriber line.
Fiber optic subscriber connection LC flush-mounted. The fiber optic termination box allows for a clean installation and termination of the fiber optic cable. The connection of the fiber optic cable is made via CLICK technology. It features integrated cable management and is compatible with covers such as 2539-xxx and 1766-xxx.

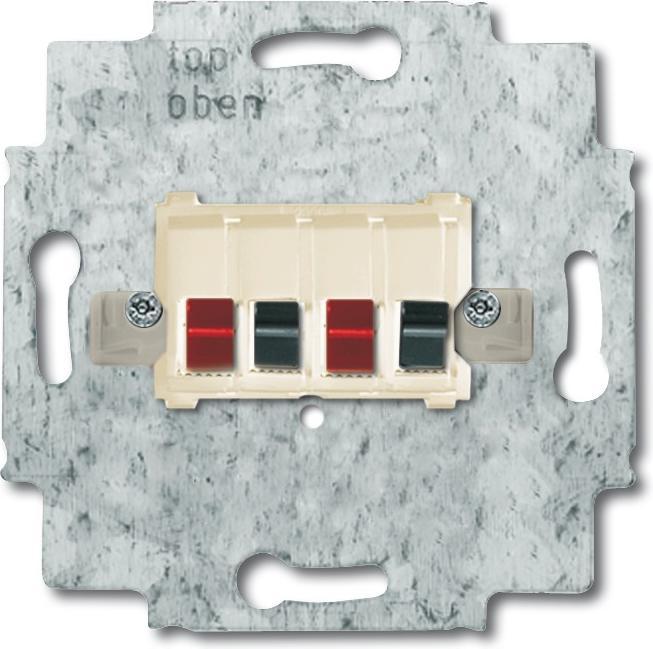

2. Busch-Jaeger Loudspeaker junction box
Busch-Jaeger loudspeaker junction box 0248/02-101
Manufacturer: Busch-Jaeger
Designation: Loudspeaker junction box 2gang, white
Type: 0248/02-101
Assembly: Basic element
Usage: Loudspeaker connection
Support ring: Yes
With dust protection: No
With hinged cover: No
Outlet direction: Straight
Labeling field: Without labeling field
With imprint: No
Mounting type: Flush-mounted
Material: Plastic
Material grade: Thermoplastic
Halogen-free: Yes
Surface protection: Untreated
Surface finish: Matt
Color: White
RAL number (similar): 1013
Transparent: No
Mounting type: Claw/screw mounting
Number of modules (for modular design): 1
With sockets/couplings: Yes
Suitable for number of sockets/couplings: 2
With strain relief: No
Sockets shielded: No
Housing shielded: No
Luster terminal: No
Suitable for protection class (IP): IP20
Device width: 71 mm
Device height: 71 mm
Device depth: 32 mm
Minimum depth of device box: 40 mm
Busch-Jaeger loudspeaker connection box 0248/02-101 features plug-in terminals (screw terminals on the back) with 4 connection terminals. Conductor cross-section max 10 mm². Polarity color-coded. With spreader. Suitable for cover TAE 1766-xxx and 2539-21x.
3. Busch-Jaeger Modular-Jack insert 6-pole 0210
The Modular Jack Insert 6-pole 0210 from Busch-Jaeger is a high-quality accessory for network connections, specifically designed for use in multifunctional connection sockets. This product enables a reliable and efficient connection across various design lines, including Platform 63 and Busch-Duro 2000®. The insert is suitable for conductor cross-sections ranging from 0.12 mm² to 0.35 mm², making it versatile. The Modular Jack socket is not only functional but also integrates harmoniously into different living and working environments, thanks to the variety of compatible design lines. With its robust construction and easy installation, this insert is an ideal choice for those who value quality and aesthetics.
- Compatible with various design lines from Busch-Jaeger
- Suitable for conductor cross-sections from 0.12 mm² to 0.35 mm²
- Easy installation in multifunctional connection sockets
- Robust construction for reliable network connections.
4. Busch-Jaeger 0263/06 - RCA - Gold
The Busch-Jaeger Cinch socket 0263/06 is a high-quality connection solution for analog audio devices such as audio receivers, amplifiers, and HiFi systems. It enables a reliable connection in the frequency range of 20 Hz to 20 kHz, ensuring clear and precise audio transmission. The socket is designed in a striking red color, making it easily identifiable, especially for the right audio channel. Equipped with a solder connection, it provides a stable and durable link suitable for various applications in communication adapters. This Cinch socket is a practical choice for anyone who values a high-quality audio connection.
- Suitable for analog audio devices such as audio receivers and HiFi systems
- Frequency range of 20 Hz to 20 kHz for optimal audio quality
- Solder connection for a secure and lasting connection.

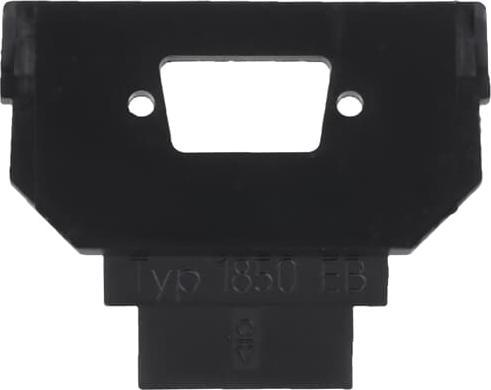

5. Busch-Jaeger Base
The Busch-Jaeger socket is a high-quality network accessory specifically designed for use with communication connectors. This socket is suitable for installation in flush-mounted boxes and features an angled outlet orientation that allows for flexible installation. Made from halogen-free thermoplastic, the socket is characterized by its robust and durable construction. With a compact size of 59 mm in width and 46 mm in height, it is ideal for various applications in the field of network technology. The socket is designed for use with 9-pin D-subminiature connectors and offers easy integration into existing systems. The matte surface provides an appealing look, while the absence of labeling and printing allows for a clear and unobtrusive design. The socket is manufactured in Germany and meets the IP20 protection rating, making it suitable for use in dry indoor environments.
- Suitable for 9-pin D-subminiature connectors
- Halogen-free thermoplastic material
- Installation type: flush-mounted
- Protection rating IP20 for dry indoor use.
6. Busch-Jaeger Cable whip
Cable whip USB keystone for insertion in mounting adapter 0219/14. Enables simple plug and play installation with pre-assembled connection cables in difficult installation situations. An electronics box is required for use.
7. Busch-Jaeger Housing
The Busch-Jaeger housing 1758 WN-53 is a high-quality surface-mounted enclosure specifically designed for data communication. It features a taller design that allows for optimal use with DKS sockets of types 1850 EB to 1872 EB and 1876 EB. The enclosure is made from halogen-free thermoplastic and has a matte surface in the color gray (similar to RAL 7035). It is equipped with a cable entry but does not include a screw entry or a cover frame. The integrated labeling field measures 57.8 x 9.8 mm, allowing for easy identification. With an IP44 protection rating, the enclosure is protected against dust ingress and splashing water, making it ideal for use in various environments. The enclosure is not suitable for use with certain DKS sockets, which should be taken into account during planning.
- Taller design for data communication
- Suitable for DKS sockets 1850 EB to 1872 EB and 1876 EB
- Integrated labeling field for easy identification
- Halogen-free thermoplastic material
- IP44 protection rating for dust and splash water protection.
8. Busch-Jaeger 0263/12 - 2 x RCA - Metallic - White
The Busch-Jaeger communication adapter 0263/12 is a high-quality network accessory specifically designed for the integration of one or two RCA sockets. This product is ideal for installation in various applications, including cable ducts, flush-mounted device boxes, and underfloor systems. The adapter is compatible with TAE central plates 2539-21x and 1766-xxx, allowing for seamless integration into existing systems. The use of robust materials ensures durable and reliable performance. The adapter is supplied without a central plate and spacer, enabling flexible installation. With an appealing metallic finish in white, the adapter blends harmoniously into various environments and provides a functional solution for audio and network integration.
- Compatible with TAE central plates 2539-21x and 1766-xxx
- Suitable for installation in cable ducts, flush-mounted device boxes, and underfloor systems
- Allows for the integration of one or two RCA sockets
- Made in Germany to high quality standards.
9. Busch-Jaeger Modular Jack coupling
For insertion in mounting adapter 0219/14. 180° RJ45 keystone module - straight version (socket-socket). Enables simple plug and play installation with RJ45 patch cable in difficult installation situations.
