PoE injector
EUR33,39
LevelOne FE PoE Injector Adapter POI-3014 PoE
802.3af (PoE), 802.3at (PoE+), 30 W
Best LevelOne products in the PoE injector category
On this page you'll find a ranking of the best LevelOne products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. LevelOne FE PoE Injector Adapter POI-3014 PoE
LevelOne POI-3014 Gigabit PoE Injector, 30W
The LevelOne POI-3014 is a Power-over-Ethernet (PoE) injector that not only provides an efficient solution for power distribution but also offers a seamless way to integrate Powered Devices (PDs) into an existing LAN infrastructure. When using Power-over-Ethernet injectors, DC power of up to 30 W and data from a non-PoE switch are combined and transmitted over Ethernet cabling to a PD, such as a PoE network camera. This allows for the use of existing hardware without the need for additional PoE switches. Furthermore, non-PoE devices like wireless access points can also be powered remotely through additional PoE splitters, as power and data continue to be distributed over two cables. Consequently, these devices can be installed in hard-to-reach locations such as ceilings where there are no nearby outlets or power cables.
Features:
- Eliminates bulky power supplies and power cables
- Supplies the device with power and data over a single network cable
- External power supply up to 100 m
- Unique locking mechanism for easy installation
- Protection against voltage fluctuations for increased safety
- Simple plug-and-play installation
- Compact, lightweight design
- Total PoE budget: 30 W, up to 30 W per port
- Standards:
- IEEE 802.3 10-BASE-T, Ethernet
- IEEE 802.3u 100-BASE-TX, Fast Ethernet
- IEEE 802.3x Full-duplex Flow Control
- IEEE 802.3ab 1000BASE-T
- Dimensions: 145.7 x 64.39 x 43.4 mm
- Weight: 350 g.
2. LevelOne POI-3004: High Power PoE Injector
Ethernet injector with a power output of up to 30 watts. Replaces power supplies and power cables. Transmits power and data. Includes protection against voltage fluctuations. The power cable is included with the purchase. The use is simple, as the injector can be put into operation according to the plug-and-play principle without needing to install device software or similar. The injector can be easily mounted on the wall with just a few steps, taking up even less space. Its dimensions are 87.9 mm x 51.3 mm x 166 mm (width x depth x height) with a weight of 350 grams. 802.3af PoE. The IEEE 802.3af standard provides a maximum power output of 15.4 watts per PoE port with a voltage of up to 48 volts. The standard assumes that after line losses, 12.95 watts of usable power remain to avoid exceeding the maximum power output. Power over Ethernet (PoE). With Power over Ethernet, you can supply compatible devices with power via the network cable. This significantly reduces cabling efforts for end devices such as wireless access points, IP phones, and IP cameras, while also allowing for high flexibility in the placement of these devices.

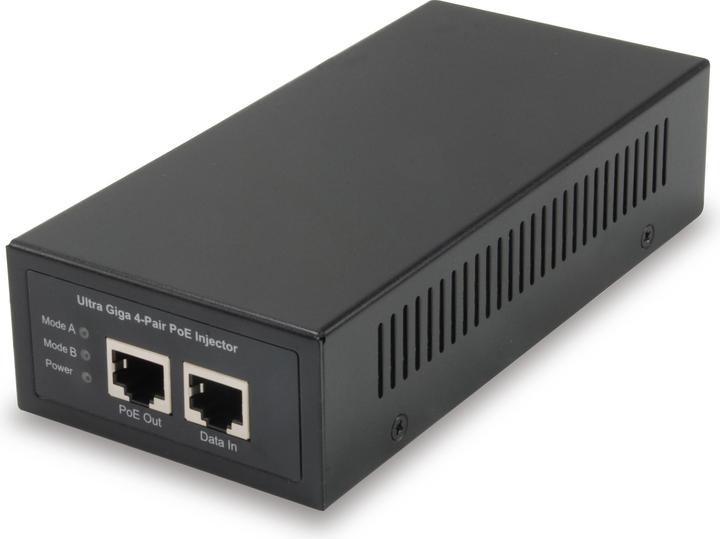

3. LevelOne 1x GE PoE Injector Adapter POI-5003 PoE
The POI-5003 is a high-performance single-port solution with 90 W for remote PoE PD devices. With a power output of up to 90 W over 8 pins, the POI-5003 powers remote devices such as wireless access points, pan-tilt-zoom (PTZ) IP cameras, lighting, panel displays for digital signage, and video phones. It complies with IEEE 802.3bt PoE standards to provide 90 W on both endpoint and midspan pairs with a total PoE output of 90 W. It can be used with 10/100Base-T network devices and emerging 1000Base-T devices such as Wi-MAX and wireless IEEE 802.11n access points.
PoE injector
EUR138,50
LevelOne 1x GE PoE Injector Adapter POI-5003 PoE
802.3af (PoE), 802.3bt (PoE++), 802.3at (PoE+), 90 W
4. LevelOne POI-2002: 1 Port PoE Injector
The LevelOne POI-2002 is a PoE injector (PSE) with an Ethernet input port (data only) and an output port (data and power), designed for small to medium networks. This injector converts the 100-240 V AC power supply into low voltage, allowing IEEE 802.3af compatible devices to be powered via Ethernet cabling. Additionally, the POI-2002 injector can check whether the network device is compliant with IEEE 802.3af or can only be powered with data. By adding a PoE splitter (POS-1002) to existing non-PoE networks, additional network products such as access points and IP cameras can be easily deployed. This provides administrators with flexible installation options, as new devices do not need to be placed near a power outlet.
- Minimizes the need for a bulky power supply or power line
- Delivers power and data over a single Ethernet cable
- Internal power supply
- High safety with surge protection
- Power supply up to 100 m
- Plug-and-play, lightweight and compact design
- Unique locking feature for easy installation.
5. LevelOne 1x GE PoE Injector Adapter IGP-0102 PoE+
The LevelOne IGP-0102 is a Power-over-Ethernet (PoE) injector that not only provides a cost-effective solution for power distribution but also offers a seamless way to deploy Powered Devices (PDs) within the existing LAN infrastructure in high-demand environments.
Additionally, non-PoE devices such as wireless access points can be powered remotely by adding extra PoE splitters. This allows devices to be installed in hard-to-reach areas, such as on the ceiling, where there are no nearby outlets or power lines.
6. LevelOne FE PoE Injector Adapter POI-2012 PoE
LevelOne POI-2012 PoE Injector, PSE 15.4W
The LevelOne POI-2012 is a PoE injector (PSE) featuring an Ethernet input port (data only) and an output port (data and power), designed for small to medium networks. This injector converts the 100-240V AC power supply into low voltage, allowing PoE-compatible devices to be powered through Ethernet cabling. It utilizes spare-pair technology, which uses the unused wires in Fast Ethernet connections for power delivery. By adding a PoE splitter to existing non-PoE networks, additional network products such as access points and IP cameras can be easily deployed. This provides administrators with flexible installation options, as PoE PD devices do not need to be placed near a power outlet.
Features:
- Eliminates bulky power supplies and power cables
- Supplies power and data to the device over a single network cable
- Integrated power supply
- Extended PoE connection for an additional 100 meters
- Unique locking mechanism for easy installation
Technical Specifications:
- Injector port type: Single port
- Data rate: 10/100 Mbps Fast Ethernet
- Application area: Commercial
- Operating humidity range: 5% RH to 95% RH
- Operating temperature range: 0 °C to 45 °C
- Dimensions (W x D x H): 143 x 51 x 38 mm
- Product weight: 350 g
- Indicators: Power, PoE
- Mounting: Wall mount
- Pin assignment and polarity: 4/5 (+), 7/8 (-)
- Output voltage: 18 W
- Standards: IEEE 802.3 10Base-T Ethernet, IEEE 802.3u 100Base-TX Fast Ethernet.

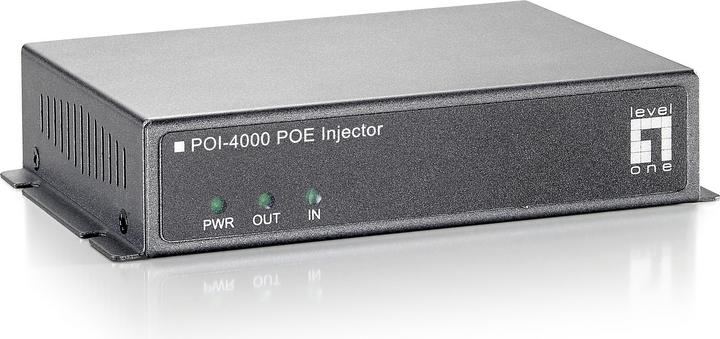

7. LevelOne POI-4000: High Power PoE Injector
The IEEE 802.3af standard limits the maximum current on an Ethernet cable to 350 mA. This allows for a maximum power output of 12.95 W at the endpoints, which is sufficient for some applications. However, many professional network devices require higher power.
The ultimate solution is High-Power PoE. LevelOne’s POI-4000 (-Z) is a High-Power PSE injector designed for use in Power-over-Ethernet systems. With an Ethernet input port (data only) and an Ethernet output port (power and data), the POI-4000 (-Z) delivers up to 60 W over Cat.5/6/7 cables. This provides excellent performance for PD devices such as PoE IP surveillance cameras, outdoor access points, or PoE VoIP phones.
Maximize your PoE network. The POI-4000 (-Z) works with PoE PD devices to extend the PoE network by an additional 100 m. It bridges long distances without latency or loss of network speed. This exceptional High-Power PoE solution is available exclusively from LevelOne!
- 60 W High-Power PSE injector
- Sends data and power over a Cat.5 Ethernet to PoE devices
- Transmits data and power up to 100 m
- Provides 100 Mbps Ethernet speeds
- Easy plug-and-play installation
- Offers surge protection and short circuit protection.
8. LevelOne 1 x Data in, 1 x PoE out PSE
PoE delivers up to 60W power, feeding on 4 pairs. It features automatic detection and protection of non-standard PoE devices. It is compatible with IEEE-802.3af/at PoE for easy use and installation.
9. LevelOne GE PoE Injector Adapter POI-3010 PoE
LevelOne POI-3010 Gigabit PoE Injector, 802.3at/af
The LevelOne POI-3010 is a single-port, high-power PoE injector (PSE) for remote PoE PD devices. The POI-3010 delivers up to 30 W PoE budget for current components such as wireless access points, pan-tilt-zoom (PTZ) IP cameras, and video phones. The injector is compatible with the IEEE 802.3at PoE standard and backward compatible with IEEE 802.3af. It can be used with 10/100Base-T network devices as well as with 1000Base-T devices like Wi-MAX and Wireless IEEE 802.11ac access points. The POI-3010 is equipped with many features to allow users to benefit from flexible network installations, lower costs, and reduced downtime. The injector is ideal for high bandwidth in the network.
Features:
- IEEE 802.3af/at PoE PSE with 30 W power budget
- Automatic detection and protection of non-standard PoE devices
- Unique locking mechanism for easy installation
- Transmission speed: 10 / 100 / 1000 Mbps
- Ports: 2x Gigabit RJ45
- Mounting: Wall mount
- Standards:
- IEEE 802.3 10Base-T, Ethernet
- IEEE 802.3u 100Base-TX, Fast Ethernet
- IEEE 802.3ab 1000Base-T, Gigabit Ethernet
- IEEE 802.3af/at Power over Ethernet (PoE) compliant
- Dimensions: 143 x 51 x 38 mm
- Weight: 350 g.
PoE injector
EUR53,70
LevelOne GE PoE Injector Adapter POI-3010 PoE
802.3at (PoE+), 802.3af (PoE), 30 W

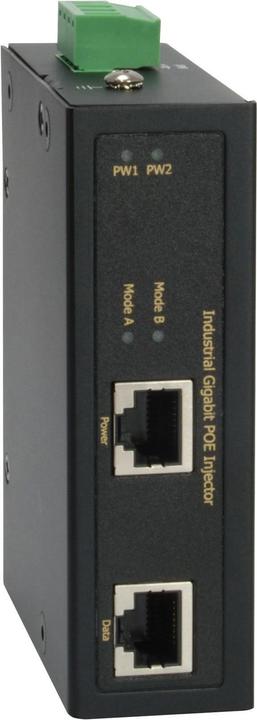

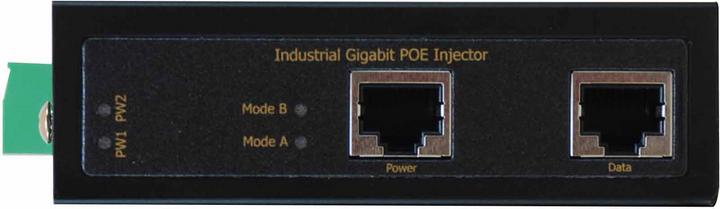

10. LevelOne IGP-0101 Industrial Gigabit PoE+ Injector 36W 802.3at PoE+
The LevelOne IGP-0101 is a ruggedly designed 30-watt, high-power single port industrial PoE injector equipped with high efficiency ColdDesign technology to provide 30 watts of power to your security equipment. The ColdDesign technology not only powers your PD device but also reduces excessive heat to a minimum. It accepts input voltage from 48 to 56 VDC to deliver 30 watts of power, meeting the IEEE 802.3af/at standard. It has been rigorously tested for security, transportation, and telecommunications applications.
Key features:
- PoE ports support the IEEE 802.3at standard and power up 30W devices
- 1000Mbps full-duplex, 10/100Mbps full/half-duplex, auto-negotiation, auto-MDI/MDIX
- Operating temperature range of 40°C to 75°C
- Provides DIN-rail, wall, or desktop mounting
- IP30 metal case
- Redundant power inputs with terminal block.
PoE injector
EUR163,37
LevelOne IGP-0101 Industrial Gigabit PoE+ Injector 36W 802.3at PoE+
802.3af (PoE), 802.3at (PoE+), 36 W
