Satellite accessories
−28%
only 1 piece on sale
EUR409,– was EUR569,–
Televes Switching matrix MS 936NCQ 9 inputs 36 outputs active Cast iron
Multi switch
Best selling Satellite accessories from Televes
This page always stays fresh and updates automatically.
1. Televes Switching matrix MS 936NCQ 9 inputs 36 outputs active Cast iron
Televes multiswitch 9 in 32 cast MS932NCQ
Manufacturer: Televes
Description: Multiswitch 9 in 32 cast Nevo
Type: MS932NCQ
Subscriber connections: 32
Number of inputs: 9
Terrestrial input: Passive
Cascadable: Yes
Number of trunk outputs: 12
Max. current consumption: 395 mA
Power supply: Included
Control signal: 14/18 V, DiSEqC, 0/22 kHz
LNB power supply: 14 V / 18 V / 22 kHz
22 kHz generator: Yes
The MS932NCQ is the quad-compatible version of the MS932C. It has the same features as the standard Nevo multiswitch but requires a power supply due to its higher power consumption, which is included with the MS932NCQ.
EAN: 8424450187456.

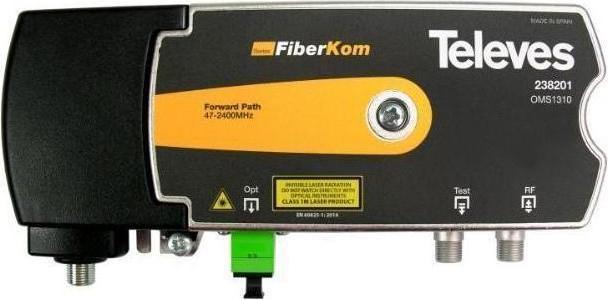

2. Televes Optical transmitter
The OMS1310 is an optical transmitter with an RF input (47 MHz - 2400 MHz) that generates an optical output signal at a wavelength of 1310 nm. Even with low input levels, it achieves an optimal output level. The optical output power is 3 dBm. The transmitter is SMATV-compatible and supports an input bandwidth of up to 2400 MHz. Its secure and robust cast housing from the FiberKom series provides excellent shielding properties, making it suitable for wall mounting as well. Installation is very easy thanks to the plug & play system.
3. Televes Switching matrix MS 924NCQ 9 inputs 24 outputs active Cast iron
Televes Multiswitch 9 in 24 Cast MS924NCQ
Manufacturer: Televes
Description: Multiswitch 9 in 24 Cast NEVO
Type: MS924NCQ
Subscriber connections: 24
Number of inputs: 9
Terrestrial input: passive
Cascadeable: yes
Number of trunk outputs: 12
Max. current consumption: 305 mA
Power supply: included
Control signal: 14/18 V, DiSEqC, 0/22 kHz
LNB power supply: 14 V / 18 V / 22 kHz
22 kHz generator: yes
The MS924NCQ is the quad-compatible version of the MS924C. It has the same features as the standard Nevo multiswitch but requires a power supply due to its higher power consumption, which is included with the MS924NCQ.
EAN: 8424450187449.
Satellite accessories
EUR589,–
Televes Switching matrix MS 924NCQ 9 inputs 24 outputs active Cast iron
Multi switch
4. Televes U3QIP-S2-CI T-0X streamer 3 x DVB-S2 in IP with CI cable preparation system
Streamer that generates IP output channels from the available services of three different SAT transponders.
These can be extracted from two different satellites (two independent SAT inputs) or from one satellite using the loop-through output from the headend.
The encrypted channels are decrypted via the CI interface and the corresponding (standard or professional) module.
The entire system consists of a power supply and several IP streamer modules, depending on the number of services to be distributed.
Highlights:
- Up to 32 IP streams SPTS (FTA services)
- Supports DiSEqC 1.0
- Service decryption after inserting the corresponding CA module including card
- Access to the headend configuration via a self-created WiFi network (using the kit with reference 216802)
- Internal switch for daisy-chaining the IP output with multiple modules
- Signaling of services from another external signal source, e.g., from a HE-21 headend
- Device monitoring with the basic SNMP protocol to display parameters over the internet (network information, device power-on times, etc.)
- Embedded web user interface for module configuration
- Configuration of the entire headend, with one of the modules selected as master
- Automatic detection of the modules connected to the master
- Clone function for replication and faster setup of typical installations
- UDP or RTP output protocol for even greater compatibility with IPTV systems
- Control indicators for the headend: module temperature, CAM status ...
Features:
- Selection of services among the three input transponders to be distributed in streaming
- Includes EPG information (Electronic Program Guide) in the output data stream
- Provides data flow information for each service to estimate the overall data output flow of the module.
Satellite accessories
EUR1827,55
Televes U3QIP-S2-CI T-0X streamer 3 x DVB-S2 in IP with CI cable preparation system
5. Televes Multiswitch 22,90cm (9") 12 cast NEVO cascadable o.NT MS912C (MS912C)
The Televes Multiswitch MS912C NEVO is a highly advanced switching matrix specifically designed for use in satellite systems. With 9 inputs, including 1 terrestrial and 8 satellite inputs, as well as 12 outputs, this multiswitch offers a flexible solution for distributing satellite and terrestrial signals. The cascadeable design allows for easy system expansion, while the switchable termination resistors enable adaptation to various installation requirements. The integrated 10dB input amplification ensures optimal signal quality, and the pass-through attenuation is optimized for both satellite and terrestrial signals. With a frequency range of 950 to 2400 MHz, the MS912C NEVO is capable of supporting a wide range of applications. The robust cast housing ensures durability and reliability, while the compact design allows for easy installation.
- Cascadeable design for flexible system expansions
- Switchable termination resistors for individual customization
- 10dB input amplification for optimal signal quality
- Pass-through attenuation optimized for satellite and terrestrial signals
- Robust cast housing for durability and reliability.
Satellite accessories
EUR351,66
Televes Multiswitch 22,90cm (9") 12 cast NEVO cascadable o.NT MS912C (MS912C)
Multi switch
6. Televes Amplifier MSV 44M SAT ZF
Televes amplifier MSV 44M SAT ZF for MULTIMAT/SATRIX cast iron (MSV44M).
7. Televes Converter OMS4TSN Optical SAT
The Televes Optical Converter OMS4TSN is a highly advanced accessory for satellite systems, specifically designed to convert optical signals into standard satellite signals. With a frequency range of 950 to 5450 MHz, the converter receives signals via an optical fiber cable from the optical LNB and transforms them into a standard satellite signal in the range of 950 to 2150 MHz. The quad converter features four outputs, allowing for the direct connection of four satellite receivers. Additionally, the converter also supports terrestrial signals, which can be accessed with the receiver's power supply or an optional power adapter. The LED display indicates the availability of the RF signal, while a gain control switch with three levels (low, medium, high) allows for flexible adjustment to meet specific requirements. The Televes OMS4TSN is thus a reliable solution for integrating optical and terrestrial signals into satellite systems.
- Converts optical signals into standard satellite signals
- Four outputs for connecting satellite receivers
- Supports terrestrial signals with optional power adapter
- Gain control with three levels for optimal signal quality.
8. Televes Optical receiver T-0X UOE 1216
Televes Optical Receiver T-0X UOE 1216
Manufacturer: Televes
Name: Optical Receiver T-0X
Frequency Range: 47-2400 MHz
Type: UOE 1216
Output Signal: Cable Digital TV (QAM, DVB-C)
Details:
Optical input between 1200 - 1600 nm, input level between -10 and 5 dBm, RF output with gain. 114 dBµV output level in terrestrial range and 117 dBµV. Equipped with a voltage-free link for a melding when the optical power is too low. Power supply included.
EAN: 8424450147603.
9. Televes MSK54G Cable Splitter/Connector Gray Cable Splitter or Combinator
For satellite and terrestrial use for 4 participants. MULTRIX cascadeable multi-switch system and associated system amplifiers. Compatible with QUAD for the expansion of QUAD LNBs. Can be combined with SAT-CR switches. The power supply for the SAT amplifier stages is provided by the receiver, which reduces power consumption to the operating time of the receiver. Cascade multi-switches can also be used to expand the multi-switches. The components can be placed anywhere in the cascade system. The components can be directly connected using the quick connectors included in the delivery.
Main features:
Technical details:
Type: Cable splitter/connector
Quantity: 1
Power requirement: 40 mA
Color: Gray
Connections and interfaces:
Connector F
Number of connectors: 9
Weight & dimensions:
Width: 204 mm
Depth: 57 mm
Height: 130 mm
Additional specifications: Dimensions.
Satellite accessories
EUR134,65
Televes MSK54G Cable Splitter/Connector Gray Cable Splitter or Combinator
Multi switch
10. Televes Multiswitch 10.20cm (4") 2x16 NEVO-SCR dCSS kaska. MSU5416C
Cascadable single-cable multi-switch with 5 inputs (1 x terrestrial passive and 4 x SAT), 4 dCSS/dSCR subscriber outputs that support both SCR I (EN50494) and SCR II (EN 50607) standards, as well as "Legacy Mode." This allows for the operation of both new and existing receivers.
Dynamic mode: All transponders from a satellite can be received. Up to 16 subscribers (according to EN 506+D1607) can be supplied per output via a single cable.
With the exclusive DCFLEX functionality, the multi-switch has the flexibility to be powered from anywhere in the system. This allows the installer to choose the best power supply option for the specific installation. A switch (DC LINK) can be set to determine whether the multi-switch is isolated from the power supply of a cascading system or not.
Highlights:
- Up to 16 subscribers per output
- With DCFLEX functionality, it can be powered in 3 ways: via a power supply or through the SAT lines
- Easy to integrate into an existing installation. By turning off the SAT DC LINK, the multi-switch is locally powered when the power supply is connected, without burdening the cascade
- Increased safety for receivers when the multi-switches are disconnected from the power supply of the cascade
- The switch TERR.DC ON disconnects or connects the power supply from the cascade in the terrestrial path. This can be useful for powering a mast amplifier or a BOSS antenna, as well as for the terrestrial branches of other multi-switches in a cascade
- With a power consumption of 10V to 20V, the dCSS multi-switches are compatible with many systems available on the market
- Low power consumption, resulting in economical operation (receiver powered)
- The new dCSS NevoSwitch multi-switches also incorporate technology developed by Televes...
Satellite accessories
EUR471,73
Televes Multiswitch 10.20cm (4") 2x16 NEVO-SCR dCSS kaska. MSU5416C
Multi switch
