Server accessories
EUR569,–
Metz Connect BTR 1503297624-E OpDAT wall distributor S 24xLC-DAPC(Kera,gn)Pigt.OS2 in.and.off
Best selling Server accessories from Metz Connect
This page always stays fresh and updates automatically.
1. Metz Connect BTR 1503297624-E OpDAT wall distributor S 24xLC-DAPC(Kera,gn)Pigt.OS2 in.and.off
The BTR 1503297624-E OpDAT wall distributor from Metz Connect is a versatile solution for floor cabling and as a distribution point in the technical room. This wall distributor is equipped with 24 LC-D APC couplings and corresponding pigtails, which are placed in standard splice cassettes with crimp splice holders. The unused knockouts are sealed with blind plugs, ensuring a clean and secure installation. The surface-mounted housing features two lockable swing doors that allow for easy handling and access to the connections. Additionally, the thoughtful design ensures secure routing of the pigtails and provides space for four cable entries, supporting flexible installation. The wall distributor is available in various sizes and is suitable for both network and building cabling.
- Equipped with 24 LC-D APC couplings and pigtails for efficient connectivity
- Built-in crimp splice system for easy installation and maintenance
- Two lockable swing doors for enhanced security
- Space-saving wall mounting with good accessibility
- Versatile cable entries for flexible installation options.

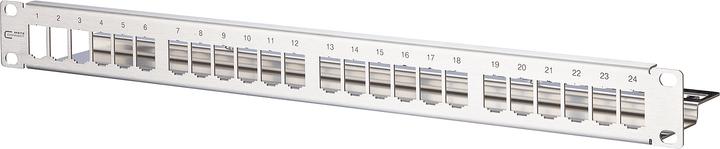

2. Metz Connect E-DAT modul module rack stainless steel empty 1HE
The E-DAT module carrier made of stainless steel by Metz Connect is a robust and reliable solution for the installation of network connection sockets. With a height of 1U and a width of 19 inches, this module carrier is specifically designed to accommodate up to 24 individual modules. It offers additional strain relief, enabling secure and tidy cabling. The module carrier is made of stainless steel, which not only ensures durability but also provides an appealing appearance. Included in the delivery is a grounding cable that ensures easy and effective grounding of the modules. The standards EIA/TIA-568 Category 6a are adhered to, guaranteeing high transmission quality. This module carrier is ideal for professional applications in data centers and network infrastructures.
- Robust module carrier made of stainless steel
- Space for up to 24 individual modules
- Grounding bolt and grounding cable included
- Easy installation and additional strain relief possible.
3. Metz Connect Metz 1503207606-E OpDAT wall distributor S
The Metz 1503207606-E OpDAT wall distributor S is a versatile distribution unit that is ideal for floor cabling or as a central distribution point in technical rooms. Equipped with LC-D APC couplings, this wall distributor offers an efficient solution for organizing and managing network cables. The unused cutouts are sealed with blind plugs, ensuring a clean and secure installation. The surface-mounted housing features two lockable swing doors, equipped with different locks to allow a clear separation between network and building cabling. The easy wall mounting and good access options make this distributor a practical choice for various applications. Additionally, it provides secure routing of VIKs and is equipped with four cable entries that allow flexible adaptation to different cable types.
- Universally applicable for floor cabling and technical rooms
- Equipped with LC-D APC couplings for efficient cable management
- Two lockable swing doors for separation of network and building cabling
- Four cable entries for flexible adaptation to various cable types.

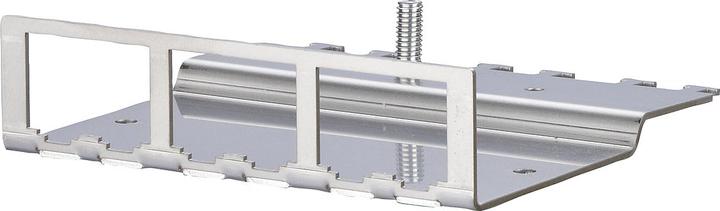

4. Metz Connect BTR module rack 6gang 1U 6 x E-DAT module integrated cable support grounding bolt M6 x 10 with M...
The BTR module carrier from Metz Connect is a versatile solution for organizing and managing network connections in server cabinets. With space for up to six individual modules in modular form, this module carrier provides an efficient way to integrate and manage network components. It is designed for installation in AP enclosures, rail adapters, or as a 1U module carrier, making it suitable for various applications in network technology. The additional strain relief provided by cable ties ensures improved stability and safety of the cable connections. The grounding bolt M6 x 10, supplied with a nut and toothed washer, guarantees reliable grounding of the installed modules. The module carrier is made of stainless steel and complies with EIA/TIA-568 Category 6a standards, making it a robust and durable choice for professional network installations.
- Space for up to 6 individual modules in modular form
- Grounding bolt M6 x 10 with nut and toothed washer
- Additional strain relief possible with cable ties
- Complies with EIA/TIA-568 Category 6a.
Server accessories
EUR24,99
Metz Connect BTR module rack 6gang 1U 6 x E-DAT module integrated cable support grounding bolt M6 x 10 with M...

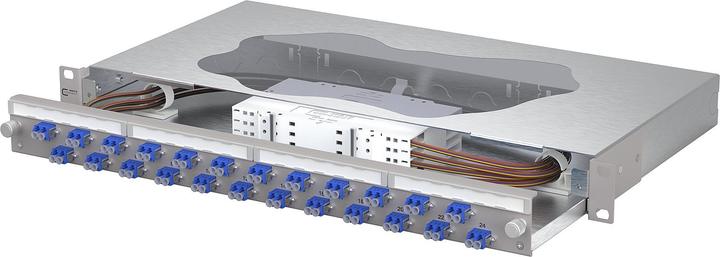

5. Metz Connect Patch panel splice
The Metz Connect splice patch panel is a high-quality server accessory specifically designed for the efficient management of network connections. With a width of 19 inches and a height of 1U (rack unit), it is ideal for use in standardized server racks. The product is presented in an attractive gray (RAL 7035), which not only looks aesthetically pleasing but also allows for clear labeling and organization of cable connections. It is equipped with pigtails and couplings that enable easy and flexible connections of fiber optic cables. The patch panel is designed for use with 24xLC-D OS2 connectors and provides a reliable solution for integration into modern network infrastructures. The delivery includes the front panel, ensuring easy installation and maintenance. Manufactured in China, this product meets the high standards of the industry and is a valuable addition to any server setup.
6. Metz Connect 15024A10S-E - Grey - Rack mount - 3U
Metz Connect OpDAT REGpro Splice Distributor 15024A10S-E
Manufacturer: Metz Connect
Designation: OpDAT REGpro Splice Distributor
Type: 15024A10S-E
With front panel: no
With housing: yes
With pigtails: no
Color: gray
Mounting type: DIN rail
Height: 131.7 mm
Width: 50 mm
Depth: 129 mm
Additional details:
Splice distributor for TH35 mounting rail without front panel, gray housing, with or without splice cassette with crimp splice holder (CSH) for up to 12 splices. The installation of two shrink splice holders (SSH) is possible on the splice tray. Includes fiber reservoir, freely labelable labeling strip, attachment to the mounting rail via a very robust mounting rail holder. Various installation options on the mounting rail are possible for different front panels 3HE/7TE, cable entry from the top or bottom, straight or angled, with M20 cable gland (up to 2 possible). 50 mm wide, 128 mm high, 132.5 mm deep (from mounting rail, without couplings). Introduction of pre-terminated cables is possible. An M20 cable entry with strain relief is included. The housing cover is secured with just one screw. Variants: with splice cassette, without splice cassette.
Note: Not all commercially available front panels 3HE/7TE can be used with the OpDAT REGpro. When using pre-terminated cables, the version without splice cassette is recommended.
EAN: 4250184130383.
7. Metz Connect OpDAT CM subrack 19" 1528SBGT19-E - cable - 0.47 m
The OpDAT CM assembly carrier from Metz Connect is a high-quality solution for installation in 19-inch racks. With a height of 3 HE and an integrated transition drawer, this model offers an efficient way to accommodate up to 12 compact modules, allowing for a high port density of up to 288 ports. The assembly carrier is made of aluminum and is characterized by its robust construction. It is designed for indoor use and has an IP20 protection rating, which protects it from dust and contact. The integrated transition drawer enables neat cable management and storage of unused bundled cables, making installation and maintenance easier. Equipped with a cable management panel and five cable brackets, the OpDAT CM ensures a structured and organized cabling system. This product is ideal for applications that require a reliable and flexible solution in the server accessory sector.
- Integrated transition drawer for bundled cable excess lengths
- Maximum capacity of 12 compact modules with up to 288 ports
- Aluminum housing for high stability
- Cable management panel and 5 cable brackets for optimal cable routing
- Suitable for installation in 19-inch racks.

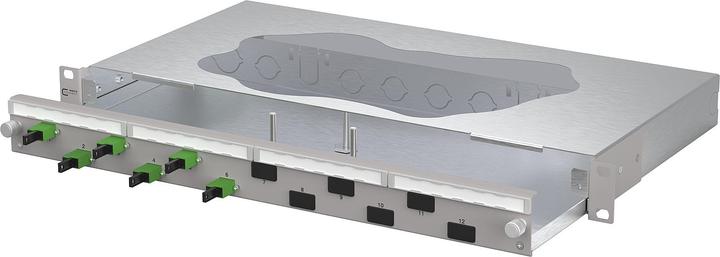

8. Metz Connect Patchfeld VIK
The VIK patch panel from Metz Connect is a high-quality solution for structured cabling in server rooms and data centers. With a height of 1U (rack unit) and a width of 19 inches, it is designed for installation in standard racks. The pull-out drawer allows for easy handling and maintenance, while the staggered coupling arrangement facilitates access to the connections. The tool-free metal bayonet lock ensures a secure closure of the drawer, making installation and operation more efficient. The patch panel is also equipped with multiple cable entry options that enable flexible cabling. The powder-coated front panel in gray (RAL 7035) not only provides an appealing look but also features a labeling area for better identification of the connections.
- Pull-out drawer for easy access and maintenance
- Tool-free metal bayonet lock for secure closure
- Staggered coupling arrangement for improved handling
- Versatile cable entry options for flexible cabling
- Prepared for the installation of pre-terminated cables.
9. Metz Connect 150C049HK0060E
The Metz Connect 150C049HK0060E is a compact fiber optic connection unit designed for surface mounting on flush-mounted or hollow wall boxes. This unit comes pre-assembled and includes a single-mode indoor cable equipped with couplings. It allows for the connection of up to four fiber optic patch cables and features an open cable side that facilitates the insertion, pulling, or blowing into conduits. The unit is suitable for both splicing and the installation of field-terminable fiber optic connectors. The cable is wound on a cardboard reel and is available in various lengths, allowing for flexible adaptation to different installation requirements. The use of bend-insensitive fibers according to ITU-T G.657.A ensures high reliability and compatibility with common standards.
- Suitable for mounting on flush-mounted or hollow wall boxes
- Pre-assembled with single-mode indoor cable and couplings
- Open cable side for easy installation in conduits
- Bend-insensitive fibers according to ITU-T G.657.A
- Includes mounting materials.
10. Metz Connect BTR E-DAT module 48x8
E-DAT modul 48x8(8) 1.5RU patch panel Cat.6A, stainless steel
- 19 inch 1.5RU stainless steel module frame with 48 individual "E-DAT modul" modules
- Component testing for Cat.6A to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09, TIA/EIA-568-C.2 (2009-08) and IEC 60603-7-51 Ed.1 (12/2008), certified to GHMT
- Compliance with class EA to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09
- Tested: Link to 500 MHz
- Suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus and UPoE) and HDBaseT
- Easy to install connection of 2 to 4-pair data lines AWG 26/1 - 22/1 and stranded wires with 7 copper conductors AWG 26/7 - 22/7 to BTR 8-fold insulation displacement connectors (IDC)
- Marking of conductor assignment to T568A or T568B
- Integrated cable support with optional strain relief
- Grounding bolt M6 x 10 with nut and lock washer
- Includes 30 cm grounding cable
- All fully shielded modules connected by means of grounding rail.
