Casambi to DALI Gateway

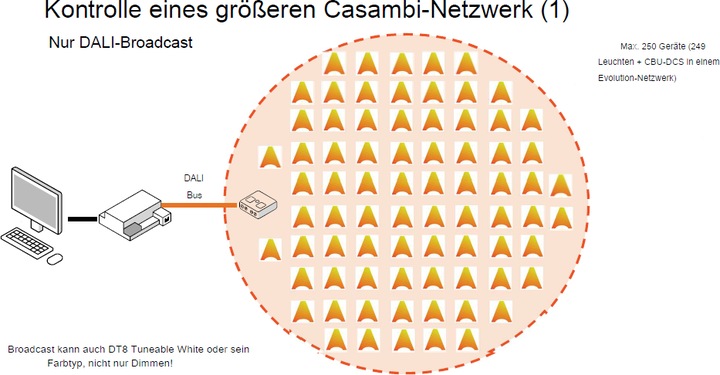

Ideal for DALI group control with a maximum of 64 DALI devices using the DALI power supply (item no. 5119). Supports up to 250 DALI devices per interface, depending on the DALI power supply (maximum 250mA = 249 devices). This through-wired DALI interface allows for convenient control of DALI light sources via the Casambi app and is suitable for integrating a conventional DALI sensor into the Casambi ecosystem. It is a passive device that requires an external power supply via the DALI line.

Compatible with DALI power supply (item no. 5119), sensor (item no. 5117), wireless remote control (item no. 5120), and wall switch (item no. 5121). Various pre-installed profiles can be selected in the Casambi app.

Features include:

• Control of DALI components via Casambi
• Control of Casambi components via DALI
• DALI individual addressing or DALI group control/broadcast
• Complete control via the Casambi app, including brightness and light color adjustment
• Configuration of luminaires and luminaire networks
• Creation of scenes and animations (color gradients)
• Intelligent timer and gallery functions.
