Complete anchor made of high-quality stainless steel for use in standard outdoor areas (Pack of 20).

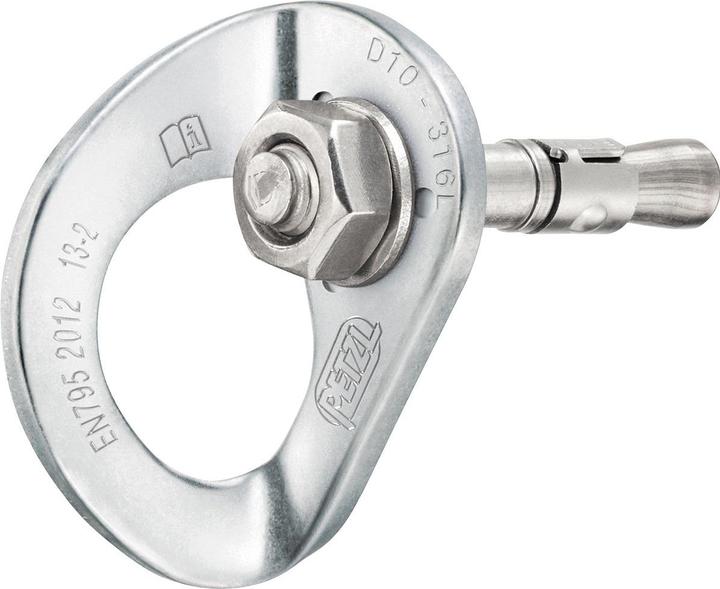

The Coeur Bolt Stainless is a complete anchor made of high-quality stainless steel, consisting of a Coeur Stainless tab, a drill hook, and a nut. It is designed for use in standard outdoor areas and is available in 10 or 12 mm diameter.

Performance specifications:

Complete anchor made of 316L stainless steel with good corrosion resistance for standard outdoor areas, consisting of a Coeur Stainless tab, a drill hook, and a nut.

Easy carabiner attachment:

A large, ergonomically shaped connection loop makes it easy to attach the carabiner. The loop is large enough to accommodate two carabiners simultaneously.

Protection against wear of the connecting elements: The thick material layer of the tab and the rounded edges of the connection loop reduce wear on the connecting elements.

Tab with rotation protection system: Unevenness on the back prevents the tab from rotating when setting the drill hook or during use under heavy lateral loads.

Available in two drill hook sizes (10 or 12 mm).

Coeur Stainless tabs available separately:

For drill hooks with a diameter of 10 mm (P36AS 10),
For drill hooks with a diameter of 12 mm (P36AS 12).

Specifications:

Material: Stainless steel 316L
Certification(s): EN 959
Diameter: 10 mm
Weight: 110 g
Drilling diameter: 10 mm
Total length of the drill hook: 70 mm
Shear strength in concrete 50 MPa: 25 kN
Pull-out strength in concrete 50 MPa: 15 kN.
