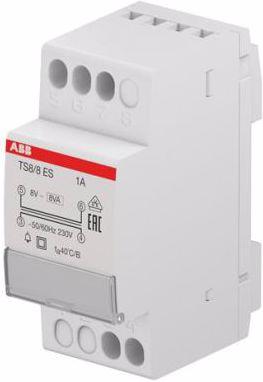

ABB Stotz S&J Bell Transformer TS 8/8 ES

Manufacturer: ABB Stotz S&J
Designation: Bell Transformer 8VA 8VAC Energy Sav.
Type: TS 8/8 ES
Primary Voltage: 230 V
Secondary Voltage 1: 8 V
Secondary Current 1: 1 A
Max. Output Power: 8 W
Max. Output Current: 1 A
Max. Loss Power: 4 W
Type of Transformer: Standard Bell Transformer
Surface Mounting: no
Flush Mounting: no
Suitable for Rail Installation: yes
Length: 65 mm
Width: 35 mm
Height: 85 mm
Width in Division Units: 2
Short-Circuit Proof: yes
Temperature Protection: yes
With On/Off Switch: no

ABB Stotz S&J Bell Transformer TS 8/8 ES: additional details
Transformers of the TS series for supplying low voltage (SELV), suitable for loads that require short-term supply, particularly doorbells and chimes. In addition to perfect insulation and separation between the primary and secondary circuits, the TS transformers have a thermal protection device integrated in the secondary part, making them resistant to short-circuit currents (conditionally short-circuit proof). They are equipped with a thermal protection device that automatically restores operation once the transformer has sufficiently cooled down or the overload has been removed. The bell transformers of the series ...ES are characterized by a 50% reduced energy consumption in idle operation.
