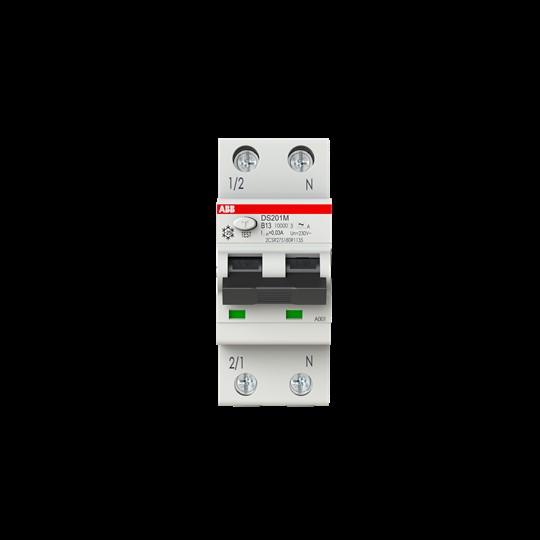

ABB Stotz S&J RCD/MCB DS201MA-B13/0.03

Manufacturer: ABB Stotz S&J
Designation: RCD/MCB 10kA, 1p+N
Type: DS201MA-B13/0.03
Number of poles (total): 2
Number of protected poles: 1
Rated voltage: 240 V
Rated insulation voltage Ui: 500 V
Rated current: 13 A
Rated residual current: 0.03 A
Residual current type: A
Energy limiting class: 3
Rated breaking capacity according to EN 61009: 10 kA
Rated breaking capacity according to IEC 60947-2: 15 kA
Impulse current withstand: 0 kA
Voltage type: AC
Frequency: 50/60 Hz
Tripping characteristic: B
Switching neutral conductor: yes
With locking device: no
Overvoltage category: 3
Pollution degree: 2
Ambient temperature during operation: -25..55 °C
Width in division units: 2
Installation depth: 69 mm
Flush-mounted installation: no
False tripping protection: no
Protection class (IP): IP20

ABB Stotz S&J RCD/MCB DS201MA-B13/0.03: further details

RCD/MCBs (RCBOs) provide protection for persons and property as well as protection against electrically ignited fires in accordance with DIN VDE 0100-410 and DIN VDE 0100-530. They ensure protection of single-phase circuits against overload and short-circuit currents, protection against sinusoidal alternating currents and pulsating currents with a smooth DC fault current component of up to 6 mA to earth. Additionally, they provide fault protection (protection against indirect contact), supplementary protection (with I?n = 30 mA), and fire protection (with I?n = 300 mA). They comply with product standards IEC/EN 61009-1 (VDE 0664-20), IEC/EN 61009-2-1 (VDE 0664-21). Applications include household, commercial, and industrial uses. The extensive range of accessories offers everything you need for your installation tasks. Numerous approvals make the DS201 suitable for worldwide use. Rated breaking capacity according to IEC/EN 61009 Icn = 10 kA. RCBO DS201 MA Type A is 1-pole protected (MCB), 2-pole switching.
