ABL GmbH Base 1632602 Manufacturer: ABL GmbH Description: Base with Schuko 2-pole socket Type: 1632602 Design: Schuko Material: Plastic Material quality: Thermoplastic Halogen-free: yes Flange size: other With hinged cover: yes Protection class (IP): IP20 Protection class (NEMA): other Plug direction: straight Connection technology: screw terminal Color: white RAL number: 9010 Number of poles: 3 Rated current: 16 A Rated voltage: 250 V For "harsh conditions" (according to VDE): no

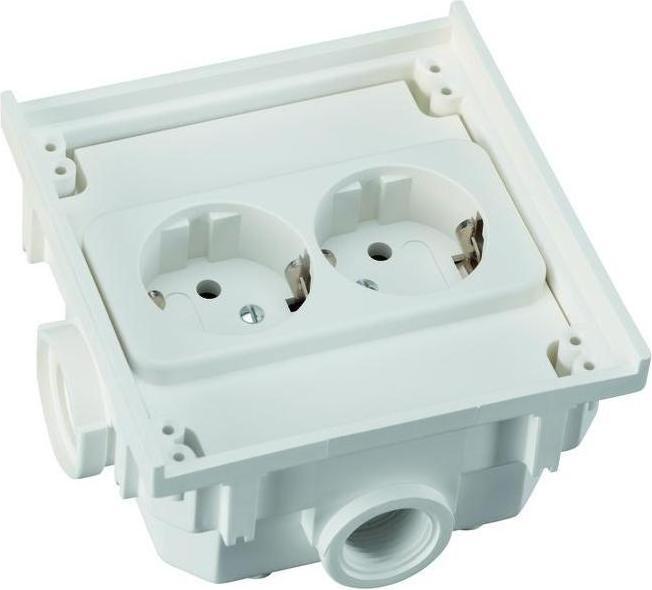

The elegantly designed flush-mounted sockets of the BOWA series are ideal for flush installation in floors and walls. The white Schuko 2-fold flush-mounted socket BOWAmaxi is made of highly impact-resistant thermoplastic and features increased touch protection. With the help of four adjusting screws and a mounting cover with a level, unevenness in the floor can be easily compensated. The flush-mounted socket BOWAmaxi, with a housing size of 112 x 112 mm, can be connected on two sides. This allows multiple BOWAmaxi sockets to be perfectly aligned using connection clips. In addition to the BOWAmaxi flush-mounted socket, there are sturdy metal covers 1632ESM, 1632MSM, and 1632PLM available.
