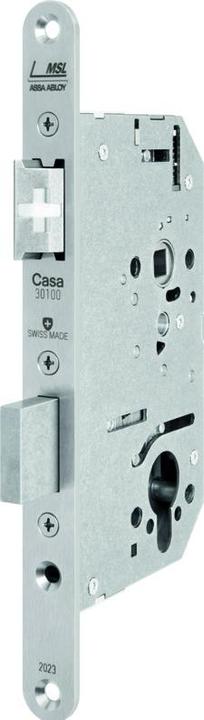

The 30100 is the successor model to the 1123. It opens with a single turn of the lock in the opening direction. Closing is done manually with a single turn of the lock in the closing direction.

• Tool-free conversion for DIN left and right
• New spring concept with strong bolt springs for heavy handles
• With latch, bolt extension: single turn 20 mm
• Bolt: 8 or 9 mm
• Available with round cylinder or profile cylinder
• Approved according to EN 12209
• Burglary-resistant up to class RC2 in suitable door systems
• Approved according to EN 1634-1 up to 3

Application area
In new construction and renovation projects
Interior closing doors

Note
Only use bolt switch contact MSL 1886 on the frame side.
